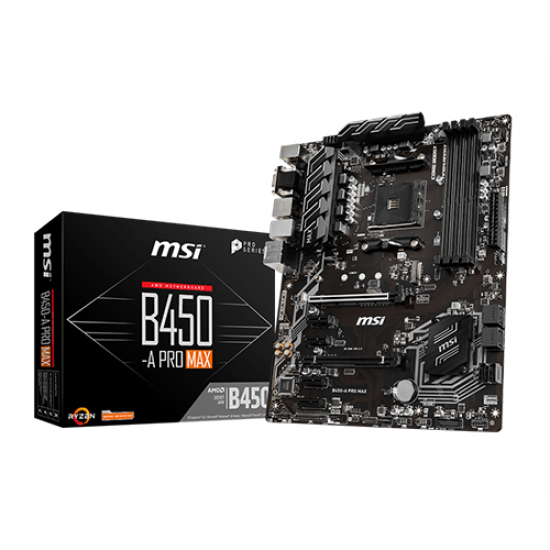

MSI B450-A PRO MAX AMD AM4 Motherboard
The MSI B450-A PRO-M2 motherboard is a solid choice for building a system based on AMD Ryzen processors for AM4 socket. It is every factor rather than just one or two which are improved. Exclusive Core Boost technology allows for easy CPU overclocking while DDR4 Boost technology ensures stable memory performance. Enjoy ultra-fast storage speed by installing PCI-E SSD using the M.2 slot. Both data transfer and charging via USB will be accelerated for less wait time. The PCI-E steel slots are ready for long, heavy graphics card. The purest audio will be reproduced to let you aim your enemies precisely. Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility even over clocking, so you confirm and choose any gaming rig as you want. Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heat sink. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. PRO Series motherboards combine stable functionality and high quality assembly for clever business solutions. Designed to satisfy any professional workflow, PRO Series motherboards make life easier for businesses and office use.
This extreme device comes with 3 years warranty.
Specification:
| Basic Information |
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics/ 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 |
| Chipset | AMD B450 Chipset |
| Form Factor | ATX12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Expansion Slots |
| PCI | 1 x PCIe 3.0 x16 slot (PCI_E1)1st, 2nd and 3rd Gen AMD Ryzen support x16 modeRyzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 modeAthlon with Radeon Vega Graphics support x4 mode1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)4 x PCIe 2.0 x1 slots |
| M.2 Socket | 1 x M.2 slot (Key M)1Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage device |
| Memory |
| Type | Dual channel memory architecture |
| Slots | 4 x DDR4 memory slots |
| Supported Memory | Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)For AMD Ryzen Gen3 (R5/R7/R9)Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz(by A-XMP OC MODE)For AMD Other CPUSupports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)Supports non-ECC UDIMM memorySupports ECC UDIMM memory (non-ECC mode) |
| Maximum Mamory | 64GB |
| Graphics |
| Graphics | 1 x VGA port, support a maximum resolution of 2048x1280 @60Hz,1920x1200 @60Hz1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60HzOnly support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics processorsSupports 2-Way AMD CrossFire Technology |
| Max Shared Memory | 2048 MB |
| Connector & Ports |
| HDMI | 1 x HDMI 1.4 port4096x2160 @30Hz, 2560x1600 @60Hz |
| USB (s) | AMD B450 Chipset2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)AMD CPU2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel |
| LAN Port (s) | 1 x Realtek 8111H Gigabit LAN controller |
| Supported Storage | AMD CPU2 x SATA 6Gb/s ports11 x M.2 slot (Key M)1Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s standards 2242/ 2260/ 2280/ 22110 storage deviceAMD B450 Chipset4 x SATA 6Gb/s ports |
| Audio | Realtek ALC892 Codec7.1-Channel High Definition Audio |
| Internal I/O Ports | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector6 x SATA 6Gb/s connectors2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)1 x 4-pin CPU fan connector1 x 4-pin water-pump-fan connector4 x 4-pin system fan connectors1 x TPM module connector1 x Front panel audio connector2 x System panel connectors1 x Serial port connector1 x Parallel port connector1 x Chassis Intrusion connector1 x Clear CMOS jumper1 x 5050 RGB LED strip 12V connector |
| DVI-D (s) | 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz |
| Warranty Information |
| Manufacturing Warranty | 03 Years Warranty |
