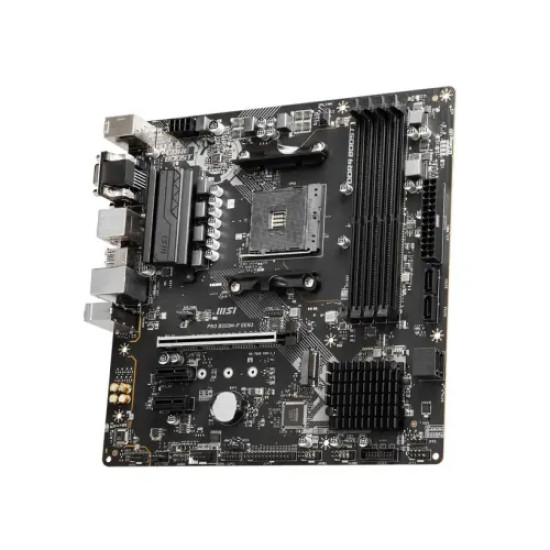

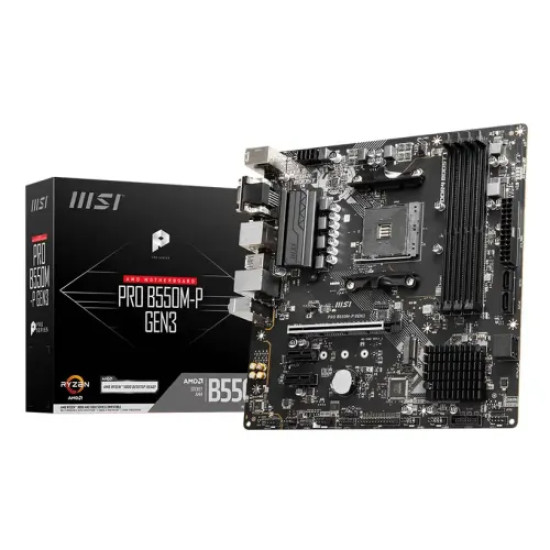

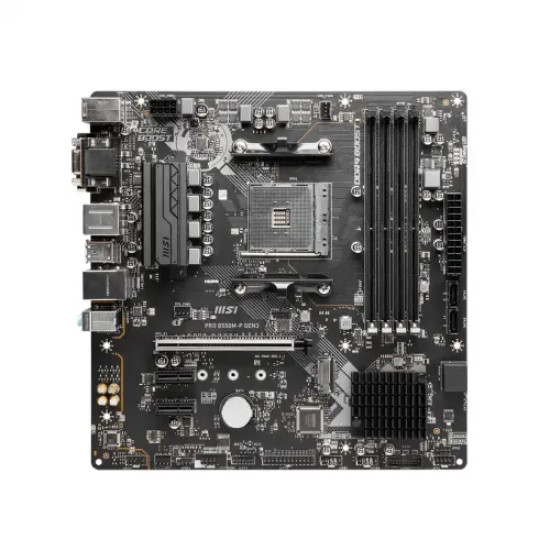

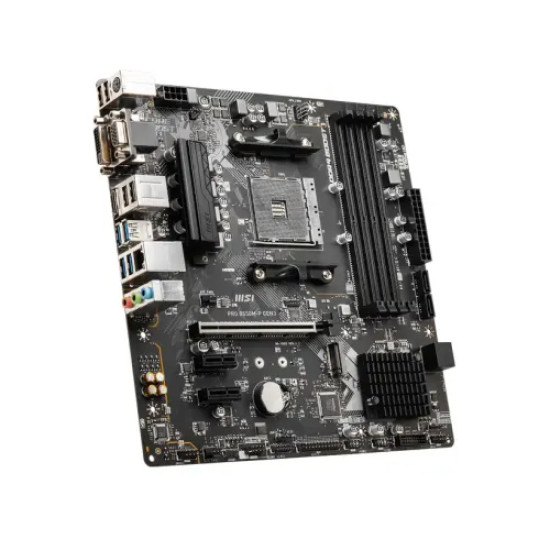

MSI PRO B550M-P GEN3 AMD AM4 Micro ATX Motherboard (China Version)

MSI PRO B550M-P GEN3 AMD AM4 Micro ATX Motherboard (China Version)

Status: In Stock
Brand: MSI
Model: PRO B550M-P GEN3

Based on 0 reviews. - Write a review

0৳

Ex Tax: 0৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
LAN Port (s)	1x Realtek RTL8111H 1Gbps LAN controller
Connector & ports
USB (s)	1x USB 3.2 Gen 1 5Gbps connectors (From AMD B550 Chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From AMD B550 Chipset) Supports additional 4 USB 2.0 ports
Connector & ports
Supported Storage	4x SATA 6Gb/s ports (From AMD B550 Chipset) Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Connector & ports
HDMI	1x HDMI 1.4 port
Default
Connector & ports	Internal I/O Ports:FAN CONNECTORS: 1x 4-pin CPU fan connector 2x 4-pin system fan connectors SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Parallel port connector JUMPERS: 1x Clear CMOS jumper LED FEATURES: 1x 4-pin RGB LED connector 4x EZ Debug LED
Generel information
DVI-D (s)	1x DVI-D port
M.2 Socket	1x M.2 slot (Key M) M2_1 slot (From CPU) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Manufacturing Warranty	03 Years Warranty
PCI	1x PCIe 3.0 x16 slot (From CPU) 2x PCIe 3.0 x1 slots (From AMD B550 chipset)
Slots	4 x DIMM Slots
TPM (Trusted Platform Module )	1x TPM module connector
Type	DDR4
Graphics Specifications
Graphics	1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
Max Shared Memory	16 GB
Main Features
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
BIOS	1x 256 Mb flash UEFI AMI BIOS ACPI 6.1, SMBIOS 2.8 Multi-language
Chipset	AMD B550 Chipset
Form Factor	m-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU	Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Memory Specifications
Max. Memory	up to 128GB
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3733 MHz 2DPC 1R max speed 3866 MHz 2DPC 2R max speed 3466 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory

MSI PRO B550M-P GEN3 AMD AM4 Micro ATX Motherboard (China Version)

The MSI PRO B550M-P GEN3 AMD AM4 Micro ATX Motherboard (China Version) supports AMD Ryzen 5000 & 3000 Series processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors. The MSI PRO B550M-P GEN3 AMD AM4 Motherboard runs at PCI-E Gen3 x4 and maximizes performance for NVMe-based SSDs. It offers 1x PCIe 3.0 x16 slot (From CPU) and 2x PCIe 3.0 x1 slots (From AMD B550 chipset). It also has 4x SATA 6Gb/s ports. This motherboard comes with 4x DDR4 memory slots and supports up to 4400(OC) MHz. It supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC and supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE. MSI PRO B550M-P GEN3 lets you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for the CPU and motherboard, which will adjust the fan speeds automatically. It comes with Audio Boost so you can reward your ears with studio-grade sound quality.
