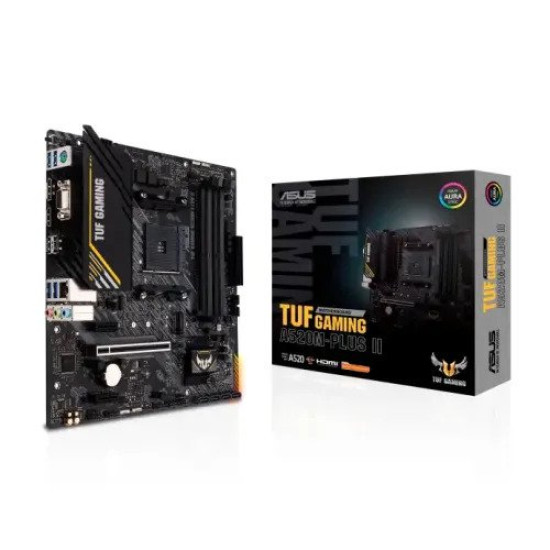

Asus TUF GAMING A520M-PLUS II AMD AM4 mATX Motherboard

Asus TUF GAMING A520M-PLUS II AMD AM4 mATX Motherboard
Asus TUF GAMING A520M-PLUS II AMD AM4 mATX Motherboard
  • Status: In Stock
  • Brand: ASUS
  • Model: TUF GAMING A520M-PLUS II
14,900৳
Ex Tax: 14,900৳

Key Features

Specification

Supported CPUAMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
ChipsetA520
Memory4 X DIMM, Max. 128GB, DDR44866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-Buffered Memory
Graphics1 X DisplayPort 1.21 X HDMITM 2.1(4K@60Hz)1 X D-Sub
SlotsAMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors1 X PCIe 3.0 X16 Slot (Supports X16 Mode)AMD A520 Chipset2 X PCIe 3.0 X1 Slots
Supported StorageAMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop ProcessorsM.2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 3.0 X4 & SATA Modes)AMD A520 Chipset4 X SATA 6Gb/S PortsSupport RAID 0, 1, 10
LAN1 X Realtek 1Gb EthernetTUF LANGuard
AudioRealtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack Detection, Multi-Streaming, Front Panel Jack-Retasking- Supports Up To 24-Bit/192 KHz Playback"Audio Features- Audio Shielding- Premium Japanese Audio Capacitors- Dedicated Audio PCB Layers*A Chassis With An HD Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output.
USB Port4 X USB 3.2 Gen 1 Ports (4 X Type-A)2 X USB 2.0 Ports (2 X Type-A)Front USB:Total 6 Ports1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports2 X USB 2.0 Headers Support Additional 3 USB 2.0 Ports
Internal I/O PortsFan And Cooling Related1 X 4-Pin CPU Fan Header2 X 4-Pin Chassis Fan HeadersPower Related1 X 24-Pin Main Power Connector1 X 8-Pin +12V Power ConnectorStorage Related1 X M.2 Slot (Key M)4 X SATA 6Gb/S PortsUSB 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports2 X USB 2.0 Headers Support Additional 4 USB 2.0 PortsMiscellaneous2 X AURA Addressable Gen 2 Header2 X AURA RGB Headers1 X Clear CMOS Header 1 X COM Port Header1 X Front Panel Audio Header (AAFP)1 X S/PDIF Out Header 1 X Speaker Header1 X SPI TPM Header (14-1pin)1 X 10-1 Pin System Panel Header
External I/O Ports4 X USB 3.2 Gen 1 Ports (4 X Type-A)2 X USB 2.0 Ports (2 X Type-A)1 X BIOS FlashBack™ Button1 X DisplayPort1 X HDMI Port1 X D-Sub1 X Realtek 1Gb Ethernet Port3 X Audio Jacks1 X PS/2 Keyboard/Mouse Combo Port
DIMENSIONS24.4cm X 24.4cm
Form FactorMicroATX
Warranty3 Years

Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard

The Asus TUF GAMING A520M-PLUS II Motherboard distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, the Asus TUF GAMING A520M-PLUS II Motherboard is the perfect foundation for your next high-core-count battle rig. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard.TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. Asus TUF GAMING A520M-PLUS II Motherboard provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface and reduces network lag.The Asus TUF GAMING A520M-PLUS II Motherboard comes with 3 years of warranty.
