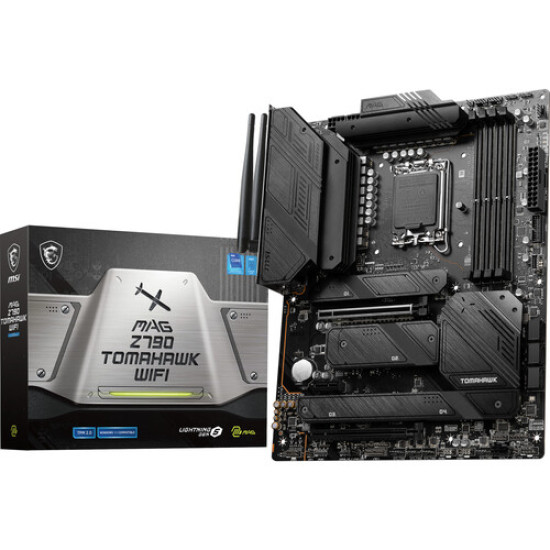

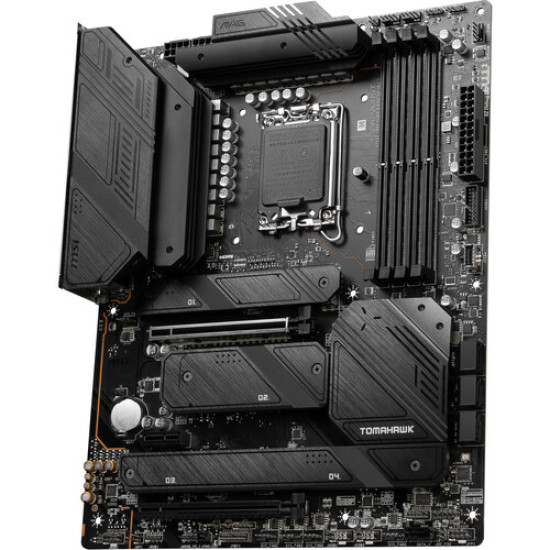

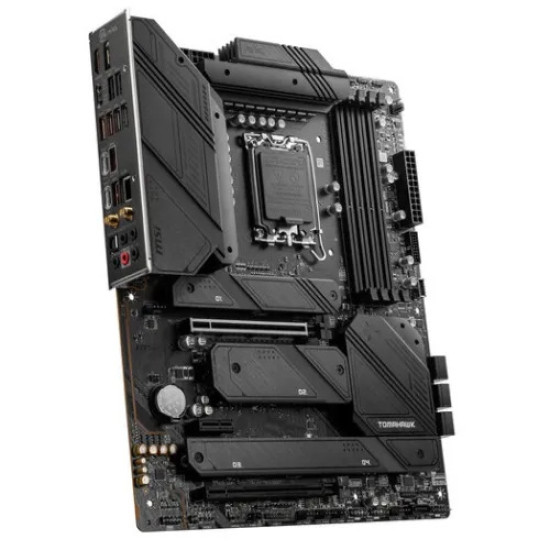

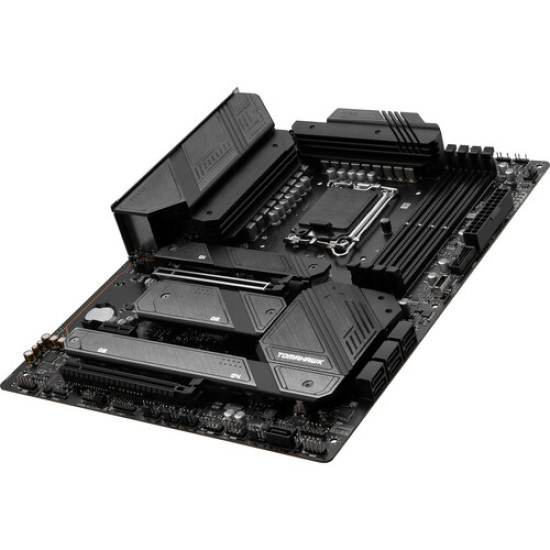

MSI MAG Z790 TOMAHAWK WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard

MSI MAG Z790 TOMAHAWK WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard

Status: In Stock
Brand: MSI
Model: MAG Z790

Based on 0 reviews. - Write a review

40,500৳

Ex Tax: 40,500৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Generel information
RAM Type	DDR4
Special Features	USB 3.0
Main Features
Chipset	Z790
Form Factor	ATX
Supported CPU	12th Gen, 13th Gen

Specification

Basic Information
Supported CPU	Supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1700
Chipset	Intel Z690 Chipset
Form Factor	ATX Form Factor 243.84mmx304.8mm
Audio	Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on the front panel
Expansion Slots
PCI	2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From the Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket	4x M.2 slots
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	4x DDR4, Maximum Memory Capacity 128GB Max. overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile
Maximum Memory	128GB
Graphics
Graphics	1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 8K 60Hz

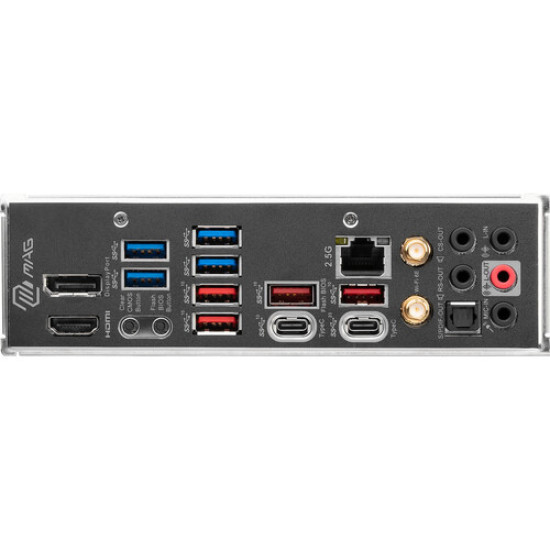

Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4
USB (s)	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Intel 2.5Gbps LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices 7x SATA 6G port
Audio	1x Front Audio (JAUD)
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years

MSI MAG Z790 TOMAHAWK WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard

Your system is seamlessly connected by MSI's MAG Z790 TOMAHAWK WIFI DDR4 LGA 1700 ATX Motherboard. This ATX motherboard offers four DDR4 RAM slots that support twin-channel memory and overclocked speeds of up to 5333 MHz. It uses the Intel Z790 chipset and LGA 1700 socket. Storage is abundant thanks to the RAID 0, 1, 5, and 10 capabilities of the four M.2 and seven SATA III ports. PCIe 5.0 x16, PCIe 4.0 x16, and PCIe 3.0 x1 slots are suitable for installing GPUs and other adapter cards. Quick networking is provided via a 2.5 GbE Intel LAN and Wi-Fi 6E, and Bluetooth 5.2 makes it simple to connect to wireless peripherals. 7.1 channel surround sound is provided by the Realtek ALC4080 audio codec, and analog audio can be connected to the rear ports. The back ports can be used for analog or digital output, and the Realtek ALC4080 audio codec provides 7.1 channel surround sound. Connect connected peripherals to two USB 3.2 Gen 2 and two Type-C ports, or to four USB 3.2 Gen 1 and four USB 3.2 Gen 2 Type-A ports. For video output, DisplayPort and HDMI are employed. On the back I/O panel, there are buttons for clearing the CMOS and flashing the BIOS. Through internal headers, capabilities including RGB connections, chassis intrusion, a TPM module, and front-panel USB 3.2 Gen 2 Type-C and Type-A connectors are supported. A 3-year guarantee is included with the MSI MAG Z790 TOMAHAWK WIFI DDR4 ATX Motherboard.
