Name: GIGABYTE Z790 D DDR4 13th And 12th Gen ATX Motherboard
Brand: Gigabyte
Price: 28930.00 BDT
Availability: InStock

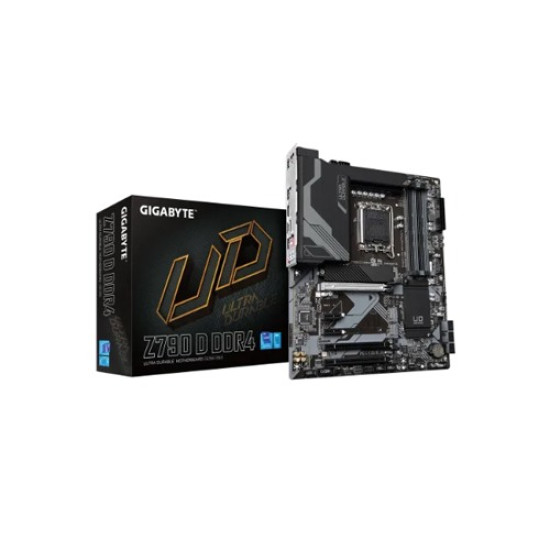

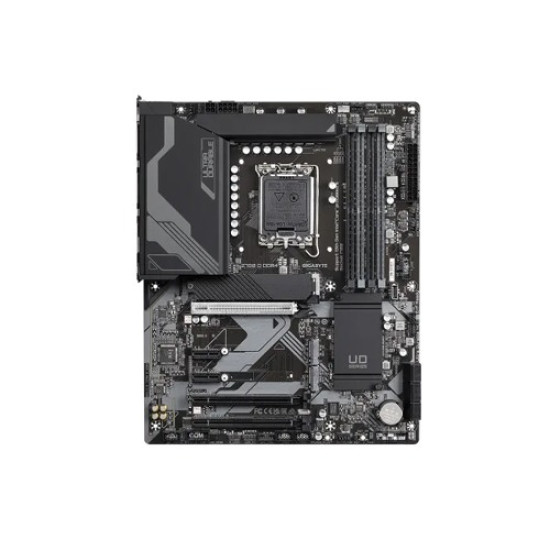

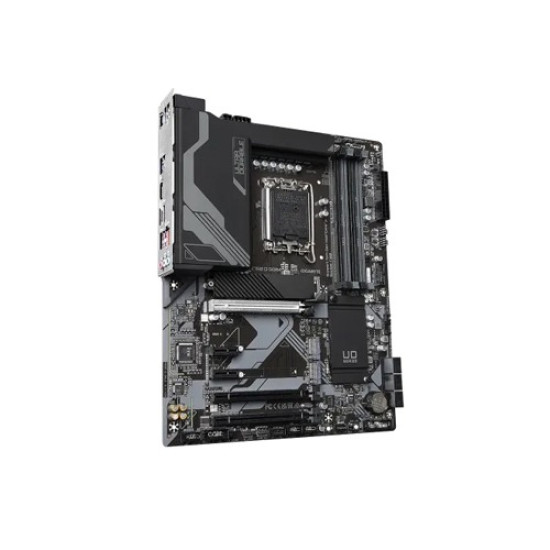

GIGABYTE Z790 D DDR4 13th And 12th Gen ATX Motherboard

New

GIGABYTE Z790 D DDR4 13th And 12th Gen ATX Motherboard

Status: In Stock
Brand: Gigabyte
Model: Z790 D DDR4

Based on 0 reviews. - Write a review

28,930৳

Ex Tax: 28,930৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
HDMI	1 X HDMI
Connector & ports
Internal I/O Ports	1 X 24-Pin ATX Main Power Connector1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 3 X System Fan Headers 1 X System Fan/Water Cooling Pump Header 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 3 X M.2 Socket 3 Connectors 6 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X S/PDIF Out Header 1 X USB Type-C Header, With USB 3.2 Gen 1 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 1 X Serial Port Header 2 X Thunderbolt Add-In Card Connectors 1 X Reset Button 1 X Q-Flash Plus Button 1 X Reset Jumper 1 X Clear CMOS Jumper
Default
Basic Information	Supported CPU:LGA1700 Socket: Support For The 13th And 12th Generation Intel Core, Pentium Gold And Celeron Processors L3 Cache Varies With CPU, Memory:Type: DDR4 Slots: 4 X DIMM Sockets Supported Memory: 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Memory Modules 4 X DDR DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System MemoryDual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules Maximum Memory: 128GB (32 GB Single DIMM Capacity)
Connector & ports	USB (s):1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen 2x2 Support 1 X USB Type-C Port With USB 3.2 Gen 1 Support, Available Through The Internal USB Header 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel 6 X USB 3.2 Gen 1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) Chipset+1 USB 2.0 Hub: 6 X USB 2.0/1.1 Ports (2 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers)
Motherboard	Slots:Expansion Slots:PCI CPU: 1 X PCI Express X16 Slot, Supporting PCIe 5.0 And Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. Chipset: 1 X PCI Express X16 Slot, Supporting PCIe 4.0 And Running At X4 (PCIEX4) 1 X PCI Express X16 Slot, Supporting PCIe 3.0 And Running At X1 (PCIEX1_4) 2 X PCI Express X1 Slots, Supporting PCIe 3.0 And Running At X1 (PCIEX1_2, PCIEX1_3) Support For AMD CrossFire Technology (PCIEX16 And PCIEX4), Supported Storage:CPU: 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU)Chipset: 2 X M.2 Connectors (Socket 3, M Key, Type 2280 PCIe 4.0 X4/X2 SSD Support) (M2Q_SB, M2P_SB) 6 X SATA 6Gb/S Connectors RAID RAID 0, RAID 1, RAID 5, And RAID 10 Support For NVMe SSD Storage Devices RAID 0, RAID 1, RAID 5, And RAID 10 Support For SATA Storage Devices, External I/O Ports:Display Port (S) 1 X DisplayPort Audio: 3 X Audio Jacks
Generel information
LAN	Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps)
Special Features	Support For GIGABYTE Control Center (GCC) * Available Applications In GCC May Vary By Motherboard Model. Supported Functions Of Each Application May Also Vary Depending On Motherboard Specifications. Support For Q-Flash Support For Q-Flash Plus Support For Smart Backup
TPM (Trusted Platform Module )	1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only)
Graphics Specifications
Graphics	Graphics:Integrated Graphics Processor-Intel HD Graphics Support: 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.0 Version And HDCP 2.3. 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3
Main Features
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel * You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The Audio Software For Audio Settings.Support For S/PDIF Out
BIOS	1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel Z790 Express Chipset
Form Factor	ATX Form Factor; 30.5cm X 24.4cm
Warranty Information
Warranty	3 Years

GIGABYTE Z790 D DDR4 13th And 12th Gen ATX Motherboard Overview

The GIGABYTE Z790 D DDR4 13th & 12th Gen ATX Motherboard is a high-end motherboard designed for use with Intel's 13th and 12th generation processors. This motherboard offers a range of features that make it an ideal choice for gamers, content creators, and professionals who need a reliable and high-performance system. One of the key features of this motherboard is its support for DDR4 memory. With four DIMM slots, this motherboard can support up to 128GB of DDR4 RAM, which allows for blazing-fast data transfer speeds and excellent multitasking performance. The Z790 D also supports Intel XMP, which allows you to easily overclock your memory for even higher performance. In addition to its memory support, the Z790 D features an advanced power delivery system that ensures stable power delivery to your CPU and other components. This system includes large heatsinks on the VRMs and MOSFETs, as well as a direct 12-phase digital power design that ensures clean power delivery even under heavy load. The Z790 D also offers a range of connectivity options, including dual PCIe 4.0 M.2 slots for high-speed NVMe SSDs, USB 3.2 Gen 2x2 Type-C ports, and Intel 2.5GbE LAN. The motherboard also features Wi-Fi 6E and Bluetooth 5.2 connectivity, allowing you to connect to your home network or other devices wirelessly.

Performance

At the heart of the GIGABYTE Z790 D DDR4 motherboard lies a robust architecture designed to deliver unparalleled performance. Equipped with advanced technologies and components, this motherboard ensures smooth and responsive operation, whether you're gaming, multitasking, or running demanding applications. With support for Intel's latest 13th and 12th generation processors, including Core i9, Core i7, and Core i5 CPUs, you can expect exceptional performance across the board.

DDR4 Memory Support

One of the key highlights of the GIGABYTE Z790 D DDR4 motherboard is its support for DDR4 memory modules. DDR4 technology offers significant improvements over its predecessors, including higher data transfer rates, lower power consumption, and increased capacity. With support for high-speed DDR4 memory modules, you can maximize your system's capabilities and enjoy faster load times, smoother multitasking, and improved overall performance.

ATX Form Factor

Designed with the ATX form factor, the GIGABYTE Z790 D DDR4 motherboard offers a perfect blend of performance, expandability, and compatibility. Whether you're building a gaming rig, a content creation workstation, or a home entertainment system, the ATX form factor provides ample space for expansion cards, storage devices, and cooling solutions. Additionally, the standardized design ensures compatibility with a wide range of PC cases, allowing for easy integration into your setup.

Supported Processors

The Gigabyte Z790 D DDR4 (Rev. 1.0) 12th & 13th Gen ATX Motherboard is a powerful motherboard that supports the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors with an LGA1700 socket. It features an Intel Z790 Express Chipset and a BIOS with 1 x 256 Mbit flash and licensed AMI UEFI BIOS.

FAQs

Q: What makes the GIGABYTE Z790 D motherboard stand out?

A: The Z790 D motherboard stands out for its exceptional performance, DDR4 memory support, ATX form factor, comprehensive connectivity, and compatibility with Intel's latest processors.

Q: Is the Z790 D motherboard suitable for gaming?

A: Yes, the Z790 D motherboard is well-suited for gaming, thanks to its high-performance capabilities, robust construction, and support for powerful Intel processors. It provides the necessary features and reliability for an immersive gaming experience.

Q: Can I overclock my CPU with the Z790 D motherboard?

A: Yes, the Z790 D motherboard supports CPU overclocking, allowing users to unleash the full potential of their Intel processors. However, it's important to ensure proper cooling and stability measures when overclocking to avoid damage to components.

Q: Does the Z790 D motherboard come with onboard Wi-Fi connectivity?

A: While the motherboard offers comprehensive connectivity options, including LAN and USB connectivity, onboard Wi-Fi is not included. Users may opt for external Wi-Fi adapters for wireless connectivity.
