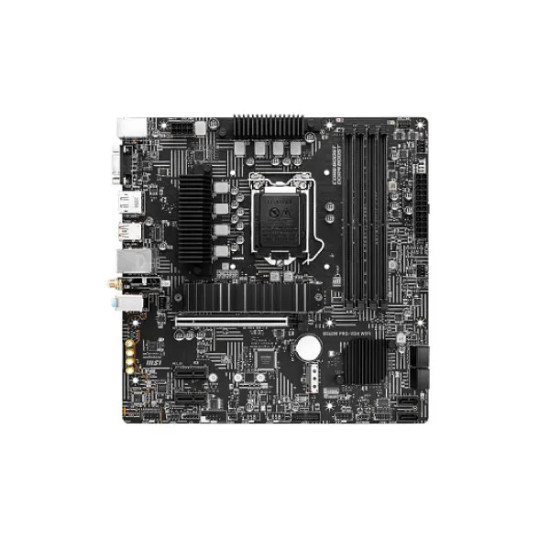

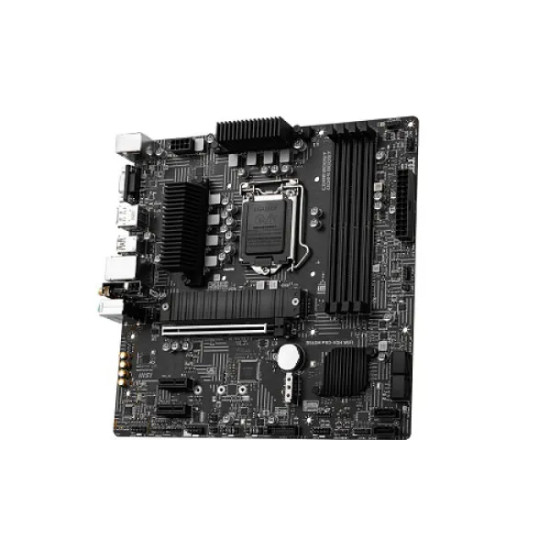

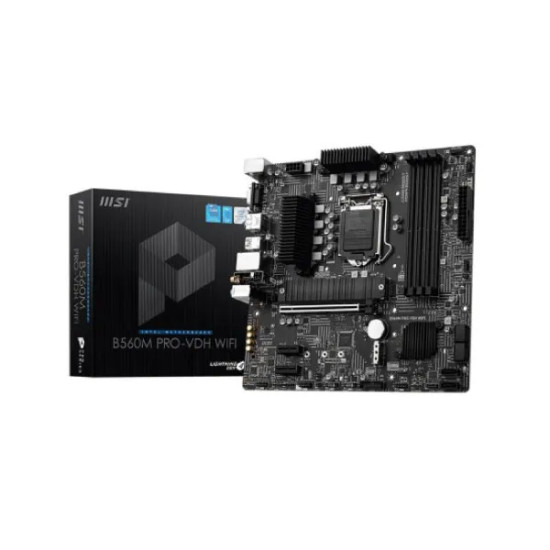

MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard

MSI B560M PRO-VDH WIFI Intel 10th and 11th Gen Micro ATX Motherboard

Status: In Stock
Brand: MSI
Model: B560M PRO-VDH WIFI

Based on 0 reviews. - Write a review

13,200৳

Ex Tax: 13,200৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
Supported Storage	- 6x SATA 6Gb/s ports (From B560 chipset) - 2x M.2 slot (Key M) - M2_1 slot - Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) - Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1 - Supports 2242/ 2260/ 2280/ 22110 storage devices - M2_2 slot2 (from B560 chipset) - Supports up to PCIe 3.0 x4 - Supports 2242/ 2260/ 2280 storage devices - Intel Optane Memory Ready - Supports Intel Smart Response Technology for Intel Core processors
Connector & ports
LAN Port (s)	1x Realtek 8125B 2.5Gbps LAN controller
Connector & ports
USB (s)	2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors
Connector & ports
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning Controller Connector
Generel information
Display Port (s)	1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
M.2 Socket	2x M.2 slot (Key M)
Manufacturing Warranty	03 years warranty
Memory	Supported Memory:Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
PCI	1x PCIe x16 slot (From CPU) PCI_E1 (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From B560 chipset)
Slots	4x DDR4 memory slots
TPM (Trusted Platform Module )	1 x TPM module connector
Type	DDR4
Graphics Specifications
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12 1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz
Main Features
Audio	Realtek AL897 Codec 7.1-Channel High Definition Audio 1x Front panel audio connector
BIOS	1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language
Chipset	Intel B560 chipset
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200
Memory Specifications
Maximum Memory	up to 128GB
Ports, Connectors & Slots
HDMI/VGA	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz

MSI B560M PRO-VDH WIFI Intel 10th And 11th Gen Micro ATX Motherboard

The MSI B560M PRO-VDH WIFI is a versatile Micro ATX motherboard designed to accommodate both 10th and 11th Gen Intel Core processors, Pentium Gold, and Celeron processors. With its LGA1200 processor socket and Intel B560 chipset, this motherboard provides a robust foundation for a wide range of computing needs. Featuring four DDR4 memory slots, the motherboard supports a maximum memory capacity of 128GB. It operates in Dual-Channel mode and supports non-ECC, un-buffered memory. The overclocking capabilities are impressive, with support for frequencies up to 5066 MHz in 1DPC 1R configuration and other configurations reaching high speeds as well. This ensures optimal performance for demanding applications and tasks. Graphics are a highlight of this motherboard, equipped with an HDMI 2.0b port, a DisplayPort 1.4 port, and a VGA port. The HDMI and DisplayPort support a maximum resolution of 4K at 60Hz, offering a stunning visual experience. The six SATA 6Gb/s ports from the B560 chipset and two M.2 slots provide extensive storage options, supporting PCIe 4.0 x4 for 11th Gen Intel CPU and PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU. Audio capabilities are delivered through the Realtek AL897 Codec, providing 7.1-Channel High Definition Audio. The inclusion of a TPM module connector enhances system security, addressing the needs of users with security concerns. Connectivity is a strong suit of this motherboard, featuring Intel Wi-Fi 6 AX201 for high-speed wireless connectivity. The pre-installed wireless module supports MU-MIMO TX/RX, 2.4GHz/5GHz (160MHz) up to 2.4Gbps, and Bluetooth 5.1, offering a seamless and fast network experience. The motherboard's form factor is Micro-ATX, making it suitable for compact builds without compromising on performance. Its dimensions of 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) strike a balance between size and expansion capabilities. The MSI B560M PRO-VDH WIFI comes with a 3-year warranty, providing users with confidence in its durability and reliability. This motherboard is an excellent choice for users seeking a feature-rich and powerful solution for their 10th and 11th Gen Intel processor-based systems.

Some additional features:

Processor Support: The motherboard supports 10th and 11th Gen Intel Core processors, Pentium Gold, and Celeron processors. It utilizes the LGA1200 processor socket.
Chipset: It is based on the Intel B560 chipset, providing a stable foundation for your system.
Memory Support: The motherboard features four DDR4 memory slots with a maximum capacity of 128GB. It supports memory speeds including 2133/2666/2933 MHz for 10th Gen Intel CPUs and 2133/2666/2933/3200 MHz for 11th Gen Intel CPUs. It can achieve overclocking frequencies up to 5066 MHz for 1DPC 1R configurations, providing flexibility for memory configurations.
Graphics Ports: It includes multiple video output options, such as HDMI 2.0b with HDR support for a maximum resolution of 4K at 60Hz, DisplayPort 1.4 for 4K at 60Hz, and a VGA port supporting various resolutions, making it suitable for multiple display setups.
Storage Options: The motherboard offers six SATA 6Gb/s ports from the B560 chipset. It also provides two M.2 slots (Key M) for high-speed storage solutions. M2_1 slot supports PCIe 4.0 x4 for 11th Gen Intel CPUs, while M2_2 slot from the B560 chipset supports PCIe 3.0 x4. Both slots support various storage device sizes (2242/2260/2280/22110), and it is Intel Optane Memory Ready.
Audio: Featuring the Realtek AL897 Codec, it offers 7.1-Channel High Definition Audio for a rich and immersive sound experience. It includes a front panel audio connector for easy connectivity.
PCIe Slots: The motherboard includes a PCIe x16 slot (PCI_E1) from the CPU, supporting PCIe 4.0 for 11th Gen Intel CPUs and PCIe 3.0 for 10th Gen Intel CPUs. It also provides two PCIe 3.0 x1 slots from the B560 chipset for additional expansion cards.
Form Factor: It adopts a Micro-ATX form factor, measuring 9.6 inches by 9.6 inches (24.4 cm x 24.4 cm), making it suitable for smaller PC builds while maintaining essential features.
Wireless Connectivity: Equipped with an Intel Wi-Fi 6 AX201 module pre-installed in the M.2 (Key-E) slot, the motherboard supports high-speed wireless connectivity. It offers MU-MIMO TX/RX support, 2.4GHz/5GHz (160MHz) up to 2.4Gbps, and is compatible with 802.11 a/b/g/n/ac/ax WiFi 6 standards. Bluetooth 5.1 support is also included.
PCI Slot: Apart from PCIe slots, it has one PCIe x16 slot (PCI_E1) from the CPU, supporting PCIe 4.0 for 11th Gen Intel CPUs and PCIe 3.0 for 10th Gen Intel CPUs.
LAN Port: The motherboard features a Realtek 8125B 2.5Gbps LAN controller, ensuring fast and reliable wired network connectivity.
TPM (Trusted Platform Module): It includes a TPM module connector to enhance security for sensitive data and applications.
Warranty: The MSI B560M PRO-VDH WIFI is backed by a 3-year manufacturer's warranty, providing peace of mind regarding its durability and reliability.

This motherboard is designed to deliver robust performance and connectivity options for Intel 10th and 11th Gen processors, suitable for various computing needs, including gaming, content creation, and everyday computing tasks.
