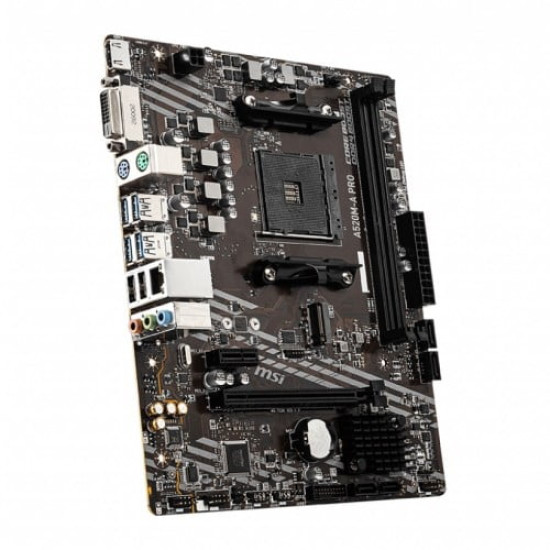

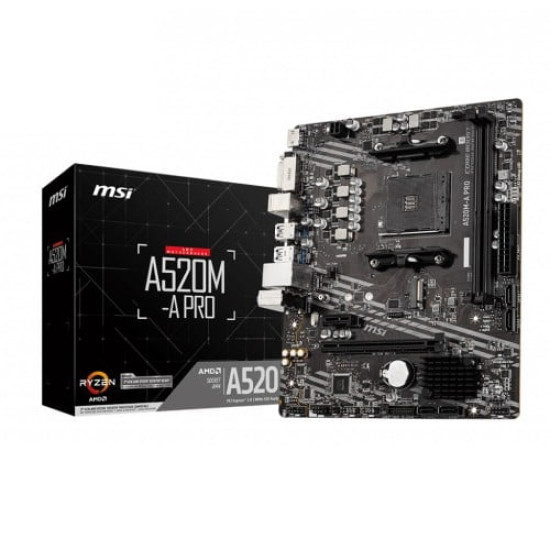

MSI A520M-A Pro Motherboard

SPECIFICATIONS

Supported CPU	Supports AM4 socket 3rd Gen AMD Ryzen processors, and future AMD Ryzen processors with BIOS update.
Chipset	AMD B520
Form Factor	Micro-ATX Form Factor9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Expansion Slots
PCI	1x PCIe 3.0 x1 slot1x PCIe x16 slot
M.2 Socket	1x M.2 slot (Key M) (from AMD Processor)Supports PCIe 3.0Supports SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devices
Memory Type	Dual-channel memory architecture
Slots	2x DDR4 memory slots
Supported Memory	Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDECSupports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE1DPC 1R max speed 4600 MHz1DPC 2R max speed 3866 MHzSupports non-ECC UDIMM memorySupports ECC UDIMM memory (non-ECC mode)Supports un-buffered memory
Maximum Mamory	64GB
Graphics	1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
Max Shared Memory	16GB
HDMI	1x HDMI 2.1 port, maximum resolution of 4096x2160 @60Hz
USB (s)	AMD A520 Chipset2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)AMD Processor4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
LAN Port (s)	1x Realtek RTL8111H Gigabit LAN controller
Supported Storage	AMD A520 Chipset4x SATA 6Gb/s ports1x M.2 slot (Key M) (from AMD Processor)Supports PCIe 3.0Supports SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devices
Audio	Realtek ALC892 Codec7.1-Channel High Definition Audio

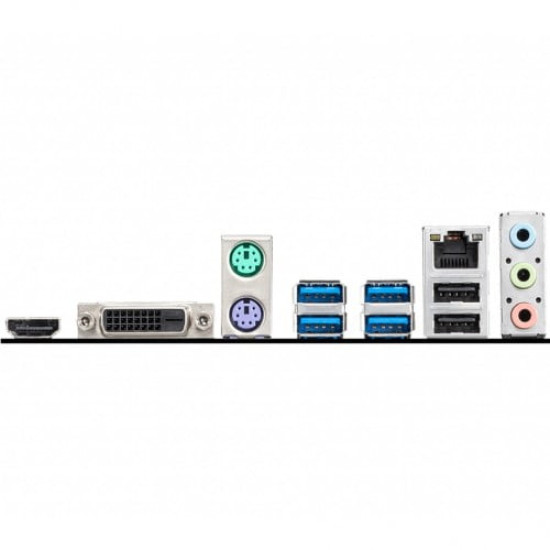

Internal I/O Ports	1x 24-pin ATX main power connector1x 4-pin ATX 12V power connector4x SATA 6Gb/s connectors1x M.2 slots (M-Key)1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1xTPM module connector1x Clear CMOS jumper
DVI-D (s)	1x DVI-D port, maximum resolution of 1920x1200@60Hz
Manufacturing Warranty	03 Years Warranty
Special Features	RAID:Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices

DeESCRIPTIONS

MSI A520M-A Pro Motherboard

MSI A520M-A Pro Motherboard work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. MSI PRO Series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. MSI OC LAB does not merely work hard on extreme overclocking. Compared to the A320 motherboard memory A-XMP profile, MSI does have great improvement in performance and efficiency for A520 motherboards. Easy to enable A-XMP profile with auto power settings to get the best memory speed and stability. Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU but also creating the perfect conditions for your CPU overclocking.
