Name: GIGABYTE Z790 GAMING X AX 13th And 12th Gen ATX Motherboard
Brand: Gigabyte
Price: 44500.00 BDT
Availability: InStock

GIGABYTE Z790 GAMING X AX 13th And 12th Gen ATX Motherboard

GIGABYTE Z790 GAMING X AX 13th And 12th Gen ATX Motherboard

Status: In Stock
Brand: Gigabyte
Model: Z790 GAMING X AX

Based on 0 reviews. - Write a review

44,500৳

Ex Tax: 44,500৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Default
Generel information	CPU:LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU, Expansion Slots:CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2), Storage Interface:CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors. RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices, USB:Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers), Graphic:Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.0 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Support for DisplayPort 1.2 version and HDCP 2.3
Generel information
Audio Feature	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Memory	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Main Features
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel Z790 Express Chipset
Form Factor	ATX Form Factor; 30.5cm x 24.4cm

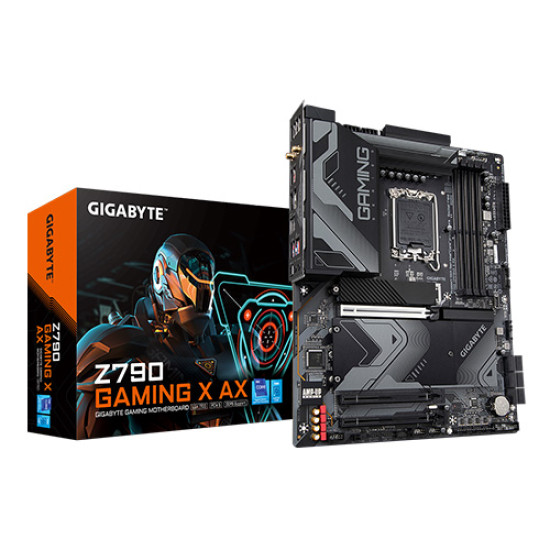

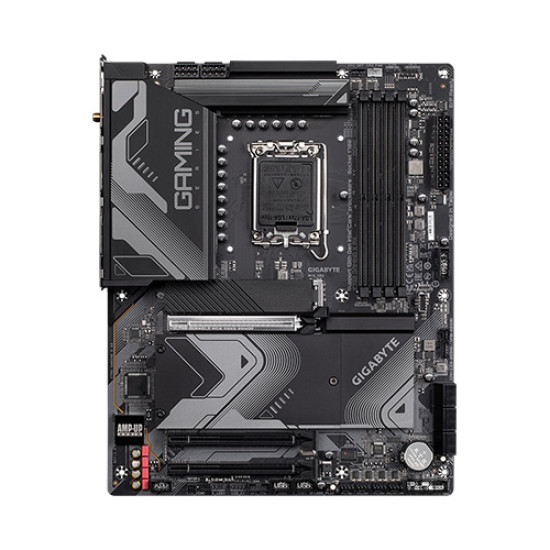

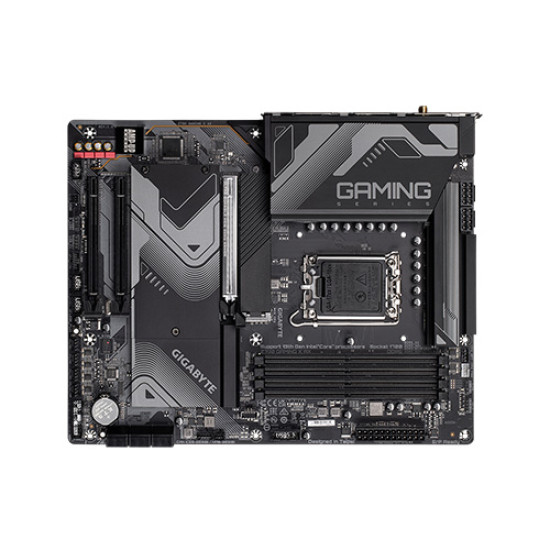

GIGABYTE Z790 GAMING X AX 13th And 12th Gen ATX Motherboard

GIGABYTE Z790 GAMING X AX 13th And 12th Gen ATX Motherboard comes with Intel Socket LGA 1700 that supports 13th and 12th Gen Series Processors. It delivers unparalleled performance with twin 16+1+2 Phases Digital VRM Solution. The motherboard comes with 4x DIMMs with XMP 3.0 Memory Module Support. The sockets support up to 128 GB (32 GB single DIMM capacity) of system memory.

GIGABYTE Z790 GAMING X AX ATX Motherboard Features

Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors
Unparalleled Performance: Twin 16*+2+１ Phases Digital VRM Solution
Dual Channel DDR5: 4*DIMMs with XMP 3.0 Memory Module Support
Next Generation Storage: 4*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design
Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity: DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Outstanding thermal design

Gigabyte motherboards' un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, chipset, ssd stability and low temperatures under full load application and gaming performance. Gigabyte motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next-generation network, storage, and wi-fi connectivity.

Gigabyte ultra durable

Gigabyte ultra-durable design provides product durability and high-quality manufacturing process. Gigabyte motherboards use the best components and reinforce every slots to make each of them solid and durable.
