| Supported CPU | LGA1700 Socket: Support For The 13th And 12th Generation Intel® Core™, Pentium® Gold And Celeron® ProcessorsL3 Cache Varies With CPU |
| Chipset | Intel® Z790 Express Chipset |
| Memory | Support For DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) /3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Memory Modules4 X DDR DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System MemoryDual Channel Memory ArchitectureSupport For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode)Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory ModulesSupport For Extreme Memory Profile (XMP) Memory Modules |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics Support:1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz* Support For HDMI 2.0 Version And HDCP 2. |
| Slots | 1 X PCI Express X16 Slot, Supporting PCIe 5.0 And Running At X16 (PCIEX16)* For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot.2 X PCI Express X16 Slots, Supporting PCIe 4.0 And Running At X4 (PCIEX4_1, PCIEX4_2)Support For AMD CrossFire™ Technology (PCIEX16 And PCIEX4)1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) |
| Supported Storage | 1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU)Chipset:2 X M.2 Connectors (Socket 3, M Key, Type 22110/2280 PCIe 4.0 X4/X2 SSD Support) (M2P_SB, M2Q_SB)1 X M.2 Connector (Socket 3, M Key, Type 22110/2280 SATA And PCIe 4.0 X4 SSD Support) (M2M_SB)4 X SATA 6Gb/S Connectors |
| LAN | Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Audio | Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-Channel* You Can Change The Functionality Of An Audio Jack Using The Audio Software. To Configure 7.1-Channel Audio, Access The AudioSoftware For Audio Settings.Support For S/PDIF Out |
| USB Port | 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2x2 Support1 X USB Type-C® Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header2 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel5 X USB 3.2 Gen 1 Ports (3 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header)Chipset+2 USB 2.0 Hubs:8 X USB 2.0/1.1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers) |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector2 X 8-Pin ATX 12V Power Connectors1 X CPU Fan Header1 X Water Cooling CPU Fan Header3 X System Fan Headers1 X System Fan/Water Cooling Pump Header2 X Addressable LED Strip Headers2 X RGB LED Strip Headers4 X M.2 Socket 3 Connectors4 X SATA 6Gb/S Connectors1 X Front Panel Header1 X Front Panel Audio Header1 X USB Type-C® Header, With USB 3.2 Gen 2 Support1 X USB 3.2 Gen 1 Header2 X USB 2.0/1.1 Headers2 X Thunderbolt™ Add-In Card Connectors1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only)1 X Reset Button1 X Q-Flash Plus Button1 X Clear CMOS Button1 X Reset Jumper1 X Clear CMOS Jumper |

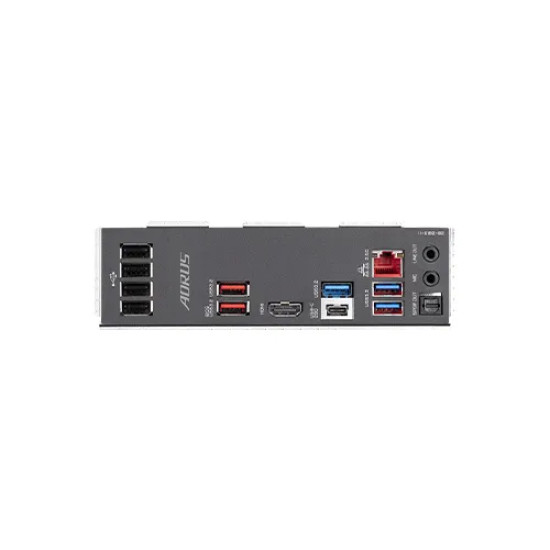

| External I/O Ports | 1 X USB Type-C® Port, With USB 3.2 Gen 2x2 Support2 X USB 3.2 Gen 2 Type-A Ports (Red)3 X USB 3.2 Gen 1 Ports4 X USB 2.0/1.1 Ports1 X HDMI 2.0 Port1 X RJ-45 Port1 X Optical S/PDIF Out Connector2 X Audio Jacks |
| DIMENSIONS | 30.5cm X 24.4cm |
| Form Factor | ATX Form Factor |
| BIOS | 1 X 256 Mbit FlashUse Of Licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| HDMI | 1 X HDMI 2.0 Port |
| Warranty | 3 Years |
