Name: Gigabyte Z790 AORUS MASTER X 1.0 14th,13th And 12th Gen DDR5 Motherboard
Brand: Gigabyte
Availability: InStock

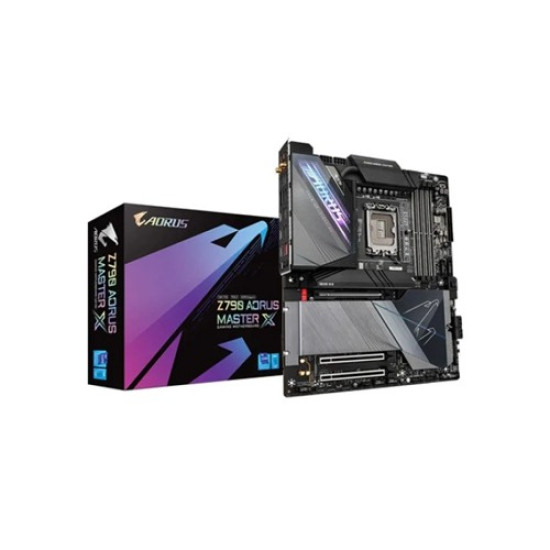

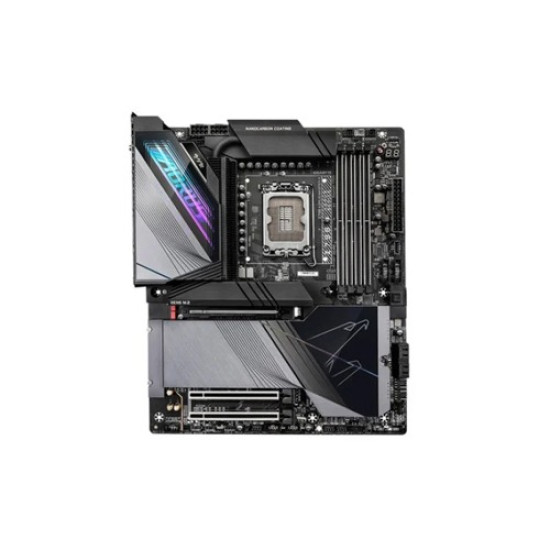

Gigabyte Z790 AORUS MASTER X 1.0 14th,13th And 12th Gen DDR5 Motherboard

New

Gigabyte Z790 AORUS MASTER X 1.0 14th,13th And 12th Gen DDR5 Motherboard

Status: In Stock
Brand: Gigabyte
Model: Z790 AORUS MASTER X 1.0

Based on 0 reviews. - Write a review

0৳

Ex Tax: 0৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
LAN Port (s)	Support for S/PDIF Out Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Connector & ports
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points
Default
Basic Information	Supported CPU:LGA1700 socket: Support for the 14th,13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU, Audio:Realtek® ALC1220-VB CODEC ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio 2/4/5.1-channel
Connector & ports	USB (s):Chipset: - 3 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header) Chipset+2 USB 3.2 Gen 2 Hubs: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs:v - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers, Supported Storage:CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
Generel information
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Expansion Slots	PCI:CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) - 1 x PCI Express
Operating System	Support for Windows 11 64-bit
Slots	4 x DIMM
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Type	DDR5
Graphics Specifications
Graphics	Graphics:Integrated Graphics Processor-Intel® HD Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Main Features
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel Z790 Express Chipset
Form Factor	E-ATX Form Factor; 30.5cm x 26.0cm
Memory Specifications
Supported Memory	Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) /7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) /6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) /5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Gigabyte Z790 AORUS MASTER X 1.0 14th,13th And 12th Gen DDR5 Motherboard

The Gigabyte Z790 AORUS MASTER X 1.0 motherboard is an exceptional piece of hardware designed to accommodate the latest 14th,13th and 12th Generation Intel Core processors. With a multitude of cutting-edge features, it caters to the needs of demanding users seeking top-tier performance, superior connectivity, and innovative technologies.This motherboard boasts the LGA1700 socket, providing support for 14th,13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors, offering a wide range of options for users. The Intel Z790 Express Chipset ensures high-speed data transfer and seamless operation, while the 256 Mbit flash BIOS with licensed AMI UEFI BIOS supports modern standards such as ACPI 5.0, DMI 2.7, and more.The onboard Realtek ALC1220-VB CODEC, along with the ESS ES9118 DAC chip, delivers high-definition audio quality, complemented by support for DTS:X Ultra, ensuring immersive sound for gaming and multimedia applications.The motherboard accommodates DDR5 memory modules, allowing for overclocked speeds up to an impressive 8266 MHz. Four DIMM slots provide a maximum memory capacity of 192 GB, making it suitable for content creators and gamers who require substantial memory resources.In terms of expansion, the motherboard features a PCIe 5.0 x16 slot, supporting high-speed graphics cards, and a PCIe 3.0 x4 slot, offering versatile options for expansion cards. The motherboard's E-ATX form factor allows for a more extensive build, providing ample space for additional components and cooling solutions.Connectivity is a strong suit of the Z790 AORUS MASTER X, with an abundance of USB ports, including USB Type-C with 3.2 Gen 2x2 support, 10GbE LAN via the Marvell AQtion AQC113C chip, and multiple M.2 connectors for high-speed storage solutions. Furthermore, it supports RAID configurations for both NVMe SSDs and SATA storage devices, offering data redundancy and performance enhancement options.With multiple internal and external connectors, the motherboard provides ample options for system expansion, including RGB LED headers, SATA ports, USB headers, and more. The motherboard's ATX form factor ensures compatibility with various PC cases, and it includes a suite of special features like GIGABYTE Control Center, Q-Flash, Q-Flash Plus, and Smart Backup to simplify system management and updates.As an added bonus, the motherboard comes bundled with Norton Internet Security for enhanced system security.

In summary, the Gigabyte Z790 AORUS MASTER X 1.0 DDR5 motherboard is a high-performance, feature-rich platform catering to enthusiasts, gamers, and professionals who require exceptional CPU and memory support, versatile connectivity options, and advanced features. With its support for DDR5 memory, cutting-edge audio, and a multitude of connectivity options, it provides the foundation for a powerful and reliable PC build.

Features:

Support for 14th,13th and 12th Gen Intel CPUs: The motherboard is equipped with the LGA1700 socket, ensuring compatibility with the latest 14th,13th and 12th Generation Intel Core processors, Pentium Gold, and Celeron CPUs.
High-Quality Audio: It features the Realtek ALC1220-VB CODEC and an ESS ES9118 DAC chip for high-definition audio, making it ideal for gamers and audiophiles. It also supports DTS:X Ultra for immersive audio experiences.
Memory Support: With four DIMM slots and DDR5 memory support, the motherboard can handle memory speeds of up to 8266MHz when overclocked. It supports ECC and non-ECC un-buffered DIMM modules as well as Extreme Memory Profile (XMP) memory modules.
PCIe Expansion Slots: It offers a range of PCIe expansion slots, including a PCIe 5.0 x16 slot on the CPU for graphics cards, and additional PCIe 3.0 x16 slots on the chipset for other expansion cards.
Integrated Graphics: The motherboard includes integrated Intel HD Graphics support with a DisplayPort, capable of resolutions up to 4096x2304 at 60Hz.
High-Speed Connectivity: It features multiple USB ports, including USB Type-C with USB 3.2 Gen 2x2 support. The 10GbE LAN chip (Marvell AQtion AQC113C) provides ultra-fast network connectivity.
Storage Options: The motherboard supports various storage options, including M.2 connectors for PCIe 5.0 and PCIe 4.0 SSDs, as well as SATA 6Gb/s connectors. It also offers RAID support for both NVMe SSDs and SATA storage devices.
E-ATX Form Factor: The motherboard comes in an E-ATX form factor, providing extra space for components and ensuring compatibility with larger PC cases.
Customization and Expandability: The board includes multiple headers for addressable RGB LED strips and supports Thunderbolt add-in card connectors. This allows for customization and expansion of the system.
Enhanced Software Support: It is compatible with Windows 11 64-bit and comes with a range of useful software features, including GIGABYTE Control Center (GCC) for system management, Q-Flash for easy BIOS updates, and Q-Flash Plus for BIOS recovery. It also includes bundled software like Norton Internet Security for added protection.
Advanced Cooling and Overclocking Support: The motherboard has several fan headers for cooling and supports both air and liquid cooling solutions. It also has voltage measurement points for advanced overclocking.

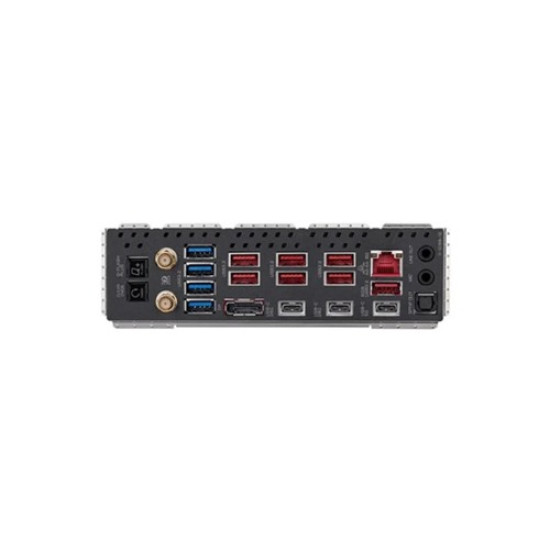

Convenient Back Panel Connectors: The back panel provides quick access to features like Q-Flash Plus, USB Type-C ports, multiple USB 3.2 Gen 2 Type-A ports, a DisplayPort, and more.
