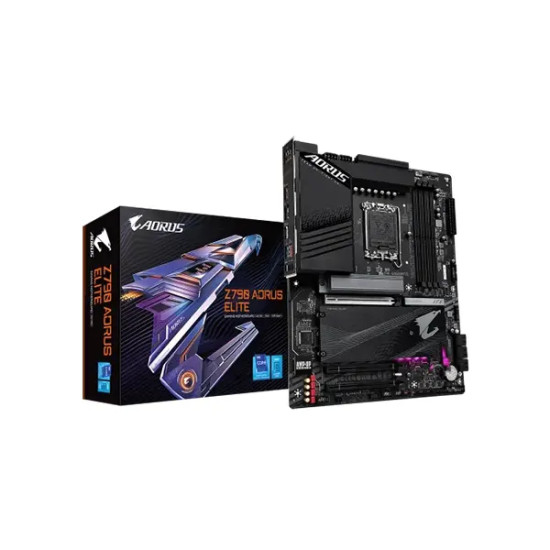

GIGABYTE Z790 AORUS ELITE 13th & 12th Gen ATX DDR5 Motherboard

GIGABYTE Z790 AORUS ELITE 13th & 12th Gen ATX DDR5 Motherboard

Status: In Stock
Brand: Gigatech
Model: Z790 AORUS ELITE

Based on 0 reviews. - Write a review

37,000৳

Ex Tax: 37,000৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper
Connector & ports
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Default
Basic Information	Supported CPU:LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Other Features	Others:RAID: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Bundled Software: Norton Internet Security (OEM version) LAN bandwidth management software
Ports, Connectors & Slots	USB (s):Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers), Supported Storage:x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors
Generel information
Display Port (s)	1 x DisplayPort
Expansion Slots	PCI:CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Manufacturing Warranty	3 years
Slots	4 x DIMM sockets
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Type	DDR5
Graphics Specifications
Graphics	Graphics:Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3
Main Features
Audio	2 x audio jacks
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel Z790 Express Chipset
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Memory Specifications
Maximum Memory	128GB (32 GB single DIMM capacity)
Supported Memory	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Ports, Connectors & Slots
HDMI/VGA	1 x HDMI

GIGABYTE Z790 AORUS ELITE 13th & 12th Gen ATX DDR5 Motherboard

The Gigabyte Z790 Aorus Elite is ahigh-performance motherboard designed for use with the 13th and 12th generationIntel Core processors. The motherboard supports the LGA 1700 socket and hasfour DDR5 DIMM slots, with a maximum memory capacity of 128GB and speeds up to5400MHz. The Z790 Aorus Elite comes with a range of connectivity options,including Wi-Fi 6 (802.11ax), 2.5Gb Ethernet, and Bluetooth 5.2. It alsofeatures three M.2 slots for NVMe SSDs, providing fast and reliable storageoptions. The motherboard also has dual Thunderbolt 4 ports with support forUSB4, making it ideal for professional applications such as video editing andcontent creation. For audio, the Z790 Aorus Elite features the RealtekALC1220-VB HD audio codec with ESS Sabre Hi-Fi 9218 DAC. The motherboard alsohas high-quality audio capacitors and Nichicon audio capacitors, providingimproved sound quality. In terms of lighting, the Z790 Aorus Elite has RGBFusion 2.0, which supports addressable RGB devices. The motherboard also hasdual BIOS with support for Q-Flash Plus, making it easy and safe to update thefirmware. The Z790 Aorus Elite also supports both NVIDIA SLI and AMD CrossFiremulti-GPU setups, making it ideal for gamers and professionals who requirepowerful graphics performance. Additionally, the motherboard comes with AORUSexclusive Q-Flash Plus and AORUS BIOS for easy and safe firmware updates. Inconclusion, the Gigabyte Z790 Aorus Elite is a highly-capable motherboard witha range of features for enthusiasts and professionals alike. It offers fastconnectivity options, customizable lighting, and support for high-speed memoryand storage devices. There is a three-year warranty included with the GIGABYTEZ790 AORUS ELITE ATX Motherboard.

GIGABYTE Z790 AORUS ELITE 13th & 12th Gen ATX DDR5 Motherboard features

CPU Support: This motherboard is equipped with an LGA1700 socket, supporting the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors. It allows you to harness the power of these latest-generation CPUs.
Chipset: The motherboard is powered by the Intel Z790 Express chipset, providing a robust foundation for system performance and connectivity.
BIOS: It features a 256 Mbit flash BIOS with licensed AMI UEFI BIOS, supporting various standards like PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0. This ensures a stable and user-friendly BIOS interface.
Form Factor: It has an ATX form factor with dimensions of 30.5cm x 24.4cm, providing ample space for components and expansion cards.
Audio Quality: The motherboard incorporates Realtek Audio CODEC with High Definition Audio support. It offers 2/4/5.1/7.1-channel audio, and you can customize audio settings using the provided software. S/PDIF Out support is also included for high-quality audio output.
PCIe Slots: There are multiple PCIe slots, including one PCI Express x16 slot supporting PCIe 5.0, and two PCIe x16 slots supporting PCIe 4.0 for GPU and expansion card support. The motherboard also supports AMD CrossFire technology for multi-GPU setups.
DDR5 Memory Support: With four DIMM sockets, the motherboard supports DDR5 memory with impressive speeds, allowing for overclocked memory modules up to 7600MHz. It supports dual-channel memory architecture, ECC un-buffered DIMM modules, and XMP memory modules.
Maximum Memory: The motherboard supports a maximum memory capacity of 128GB, with a single DIMM capacity of up to 32GB.
Integrated Graphics: The motherboard features integrated Intel HD Graphics support with HDMI and DisplayPort outputs, both supporting high resolutions and the latest standards like HDMI 2.0 and HDCP 2.3.
USB Connectivity: It offers a variety of USB ports, including USB 3.2 Gen 2x2, USB Type-C, USB 3.2 Gen 2, and USB 3.2 Gen 1 ports. These ports provide high-speed data transfer and device connectivity options.
LAN Support: Equipped with a Realtek 2.5GbE LAN chip, this motherboard ensures high-speed and reliable network connectivity, making it suitable for online gaming and high-bandwidth tasks.
Storage Options: The motherboard provides multiple M.2 connectors and SATA 6Gb/s connectors, supporting PCIe 4.0 and SATA-based storage devices. It also supports RAID 0, 1, 5, and 10 for both NVMe SSDs and SATA storage devices.
Internal I/O Ports: The motherboard includes a range of internal connectors and headers, including power connectors, fan headers, RGB LED strip headers, USB headers, and more. This facilitates efficient cable management and customization of your system.

In addition to these hardware features, it also comes with various software and special features like GIGABYTE Control Center, Q-Flash, Smart Backup, and is bundled with Norton Internet Security and LAN bandwidth management software. The motherboard is backed by a 3-year warranty, ensuring long-term reliability and support.
