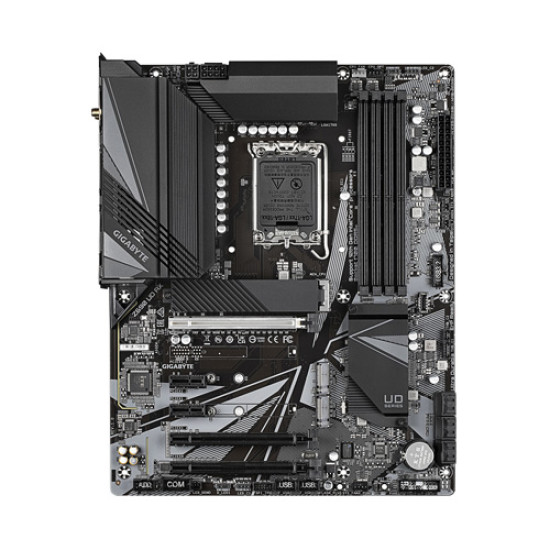

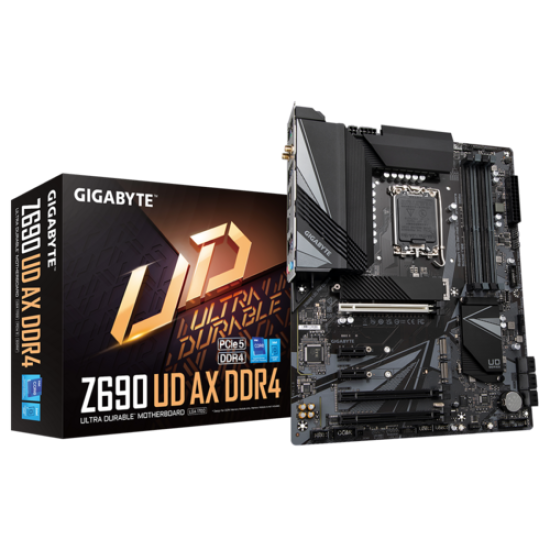

Gigabyte Z690 UD AX DDR4 13th Gen ATX Motherboard

The Gigabyte Z690 UD AX DDR4 12th Gen ATX Motherboard will serve as the foundation for your high-performance processor-based gaming PC with Gigabyte-exclusive features like Smart Fan 6. GIGABYTE Z690 UD AX Motherboard supports 12th generation Intel Core processors, PCI-Express 5.0 16x graphics cards, SATA 6 Gbps and M.2 PCIe 4.0 drives, DDR5 RAM as well as USB 3.1 and 3.2 devices. The 12th generation Intel Core processors are a small revolution in the world of x86 architectures, as they are the first to integrate a hybrid architecture. This process consists of combining two different types of cores on the same chip. The first 1, called Percormance-Cores, are dedicated to performance in games and mono-threaded applications requiring resources.The second type, called Efficient-Cores, are particularly efficient for multitasking and side task processing. Together, the two provide spectacular performance and incredible responsiveness for your system. The GIGABYTE Z690 UD AX Motherboard. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake’s performance in all its gaming glory.

Specifications

Supported CPU	LGA1700 socket: Support for 12th & 13TH Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processorsL3 cache varies with CPU
Chipset	Intel Z690 Express Chipset
Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR45000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) /4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) /3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB singleDIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules(operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics	Integrated Graphics Processor-Intel® HD Graphics support:1x HDMI port, supporting a maximum resolution of 4096x2160@60Hz, 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.
Multi-GPU Support	Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Slots	1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 5.0 standard.)1 x PCI Express x16 slot, running at x4 (PCIEX4)1 x PCI Express x16 slot, running at x1 (PCIEX1_4)2 x PCI Express x1 slots
Supported Storage	CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio	Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel
USB Port	Chipset:1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support, 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header, 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Ports	1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector1 x CPU fan header, 1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers3 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header, 1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x S/PDIF Out header, 1 x serial port header1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)2 x Thunderbolt™ add-in card connectors1 x reset button, 1 x reset jumper1 x Q-Flash Plus button, 1 x Clear CMOS jumper

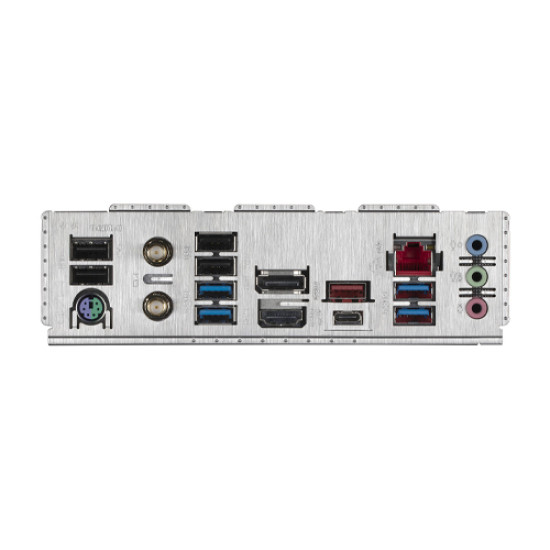

External I/O Ports	1 x PS/2 keyboard/mouse port2 x SMA antenna connectors (2T2R)1 x DisplayPort, 1 x HDMI port1 x USB Type-C port, with USB 3.2 Gen 2x2 support, 1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks
WiFi	Intel® Wi-Fi 6 AX201WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
DIMENSIONS	30.5cm x 24.4cm
Form Factor	ATX
BIOS	1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Warranty	3 Years
