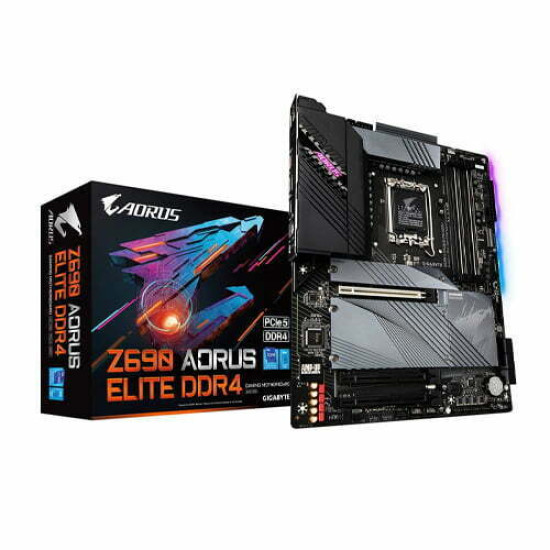

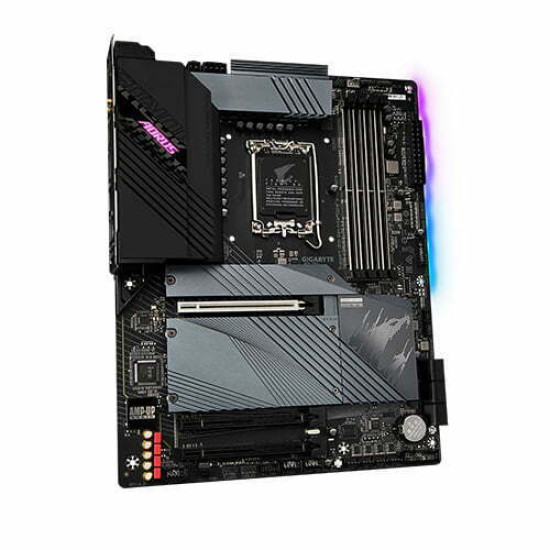

Name: GIGABYTE Z690 AORUS ELITE DDR4 intel 12th Gen Motherboard
Brand: Gigabyte
Price: 31500.00 BDT
Availability: InStock

GIGABYTE Z690 AORUS ELITE DDR4 intel 12th Gen Motherboard

GIGABYTE Z690 AORUS ELITE DDR4 intel 12th Gen Motherboard

Status: In Stock
Brand: Gigabyte
Model: Z690-12TH

Based on 0 reviews. - Write a review

31,500৳

Ex Tax: 31,500৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
Internal I/O Ports	1. 1 x 24-pin ATX main power connector2. 1 x 8-pin ATX 12V power connector3. 1 x 4-pin ATX 12V power connector4. 1 x CPU fan header5. 1 x water cooling CPU fan header6. 3 x system fan headers7. 1 x system fan/water cooling pump heade8. 2 x addressable LED strip headers9. 2 x RGB LED strip headers10. 4 x M.2 Socket 3 connectors11. 6 x SATA 6Gb/s connectors12. 1 x front panel header13. 1 x front panel audio header14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support15. 1 x USB 3.2 Gen 1 header16. 2 x USB 2.0/1.1 headers17. 2 x Thunderbolt™ add-in card connectors18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)19. 1 x reset button20. 1 x Q-Flash Plus button21. 1 x reset jumper22. 1 x Clear CMOS jumper
Default
Connector & ports	Supported Storage:CPU:1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)3. 6 x SATA 6Gb/s connectors

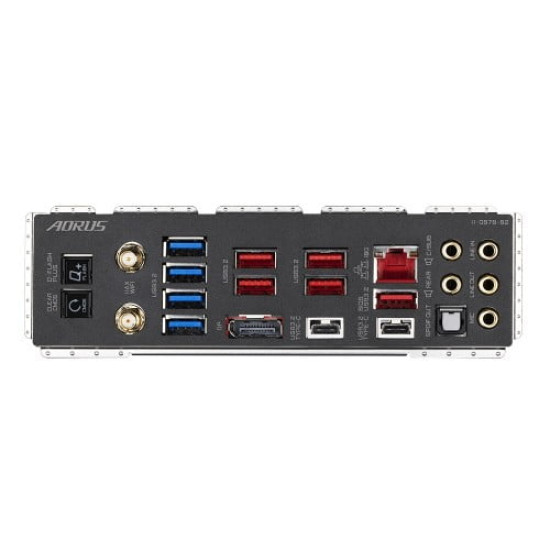

Generel information	USB port:1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hub:8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Graphics Specifications	Graphics:Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3
Main Features	Supported CPU:1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7processors/Intel® Core™ i5 processors2. L3 cache varies with CPU
Generel information
Memory	1. Support for DDR4 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory3. Dual channel memory architecture4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules6. Support for Extreme Memory Profile (XMP) memory modules
Slots	1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in thePCIEX16 slot.(The PCIEX16 slot conforms to PCI Express 5.0 standard.)2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)(The PCIEX4 slots conform to PCI Express 3.0 standard.)
Main Features
Audio	1. Realtek® ALC1220-VB CODECThe back panel line out jack supports DSD audio.2. High Definition Audio3. 2-channel analog output4. Support for S/PDIF Out5. 7.1-channel digital signals
Chipset	Intel® Z690 Express Chipset
Warranty Information
Warranty	3 years

GIGABYTE Z690 AORUS ELITE DDR4 Motherboard

GIGABYTE Z690 AORUS ELITE DDR4 Motherboard comes with Supports 12th Gen Intel Core Series Processors, Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs, Direct 16+1+2 Digital VRM Design with 70A Power Stage* and Tantalum Polymer Capacitor, Shielded Memory Routing to Avoid Interference, Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, Onboard WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna, AMP-UP Audio with ALC1220 and WIMA Audio Capacitors, Fast 2.5GbE LAN with Bandwidth Management, 4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.[ninja_tables id="47220"]
