Name: Gigabyte Z590 Aorus Master Intel 10th and 11th Gen ATX Motherboard
Brand: Gigabyte
Availability: InStock

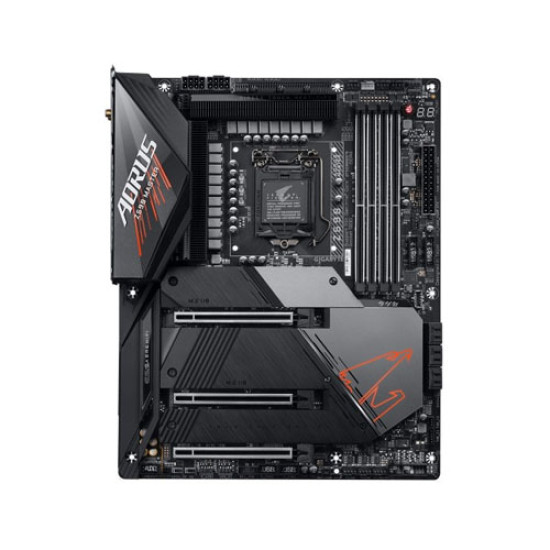

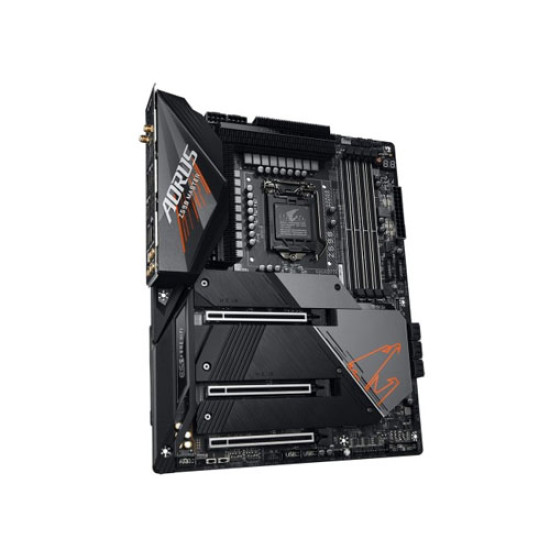

Gigabyte Z590 Aorus Master Intel 10th and 11th Gen ATX Motherboard

Gigabyte Z590 Aorus Master Intel 10th and 11th Gen ATX Motherboard

Status: In Stock
Brand: Gigabyte
Model: Z590 Aorus Master

Based on 0 reviews. - Write a review

0৳

Ex Tax: 0৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
Internal I/O Ports	1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header4 x system fan headers4 x system fan/water cooling pump headers2 x addressable LED strip headers2 x RGB LED strip headers3 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C header, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 1 headers2 x USB 2.0/1.1 headers1 x noise detection header2 x Thunderbolt add-in card connectors1 x power button 1 x reset button 2 x temperature sensor headers 1 x Clear CMOS jumper 2 x BIOS switches Voltage Measurement Points
Connector & ports
LAN Port (s)	Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/ 5/ 6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Default

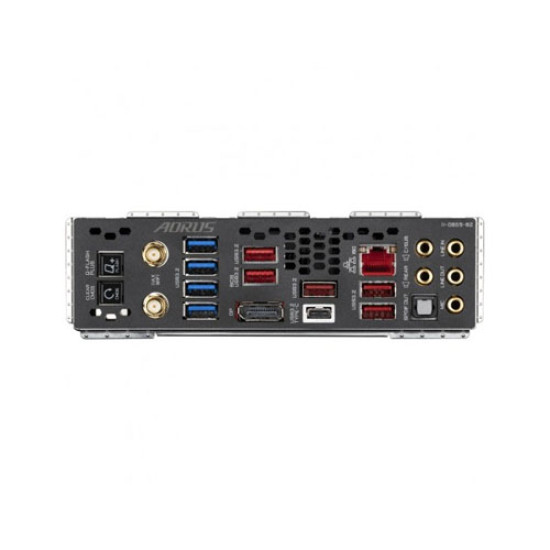

Connector & ports	USB (s):1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers, Supported Storage:CPU: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready, Audio:Realtek ALC1220-VB codec ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio 2/ 4/ 5.1/ 7.1-channel Support for S/ PDIF Out
Memory Specifications	Supported Memory:11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Generel information
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2M_SB)
Manufacturing Warranty	3 Years
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIE X4 slot conforms to PCI Express 3.0 standard.)
Slots	4 x DIMM sockets
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Type	DDR4
Graphics Specifications
Graphics	Graphics:Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Main Features
BIOS	2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel Z590 Express Chipset
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Supported CPU	1th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Memory Specifications
Max. Memory	128 GB

Gigabyte Z590 Aorus Master Intel 10th and 11th Gen ATX Motherboard

To Unleash The Full Potential Of The Latest Intel 11th Gen CPU, The Motherboard Requires The Best CPU Power Design. With The Best Quality Components And GIGABYTE R&D Design Capability, Z590 AORUS MASTER Is A True Beast Among Motherboards.

UNPARALLELED PERFORMANCE

GIGABYTE Understands That Our Customer Won't Stop Chasing Better Computer Performance, And Strive To Deliver That In Our Products. For The Z590 Series, Protective And Optimized Memory Trace Enhance The Performance; Faster Read And Write Speed Save Time And Improve Efficiency; And Generous M.2 Storage With Thermal Guards Ensure Unthrottled Read And Write Performance. Future Upgrades To The Z590 Are Made Possible By The Use Of PCIe 4.0-Ready Components.

ADVANCED THERMAL SOLUTION

Un-Throttled Performance Is Guaranteed By The Enhanced Thermal Solution That Incorporates Fins-Array II, Heatpipe II And Thermal Guards II. The Comprehensive Solution Delivers Excellent Heat Dissipation. The Z590 AORUS MASTER Stays Cool On VRMs And M.2 SSD Even On Full Loading, Making It Most Suitable For Enthusiasts, Overclockers And Professional Gamers.

ULTRA DURABLE

GIGABYTE Is Reputable For Its Product Durability And High Quality Manufacturing Process. Needless To Say, We Use The Best Components We Can Find For The GIGABYTE Motherboard And Reinforce Every Slot To Make Each Of Them Solid And Durable.

GIGABYTE BIOS & APP CENTER

Good Software Goes Hand In Hand With Perfect Hardware. GIGABYTE Motherboard Bundled Several Useful And Intuitive Software To Help Users To Control Every Aspect Of Motherboard.
