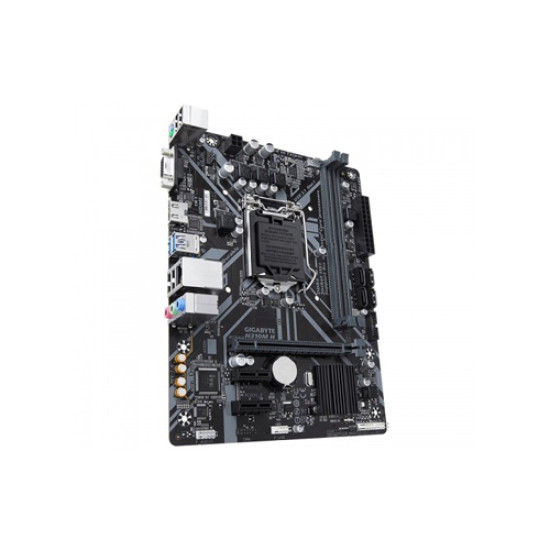

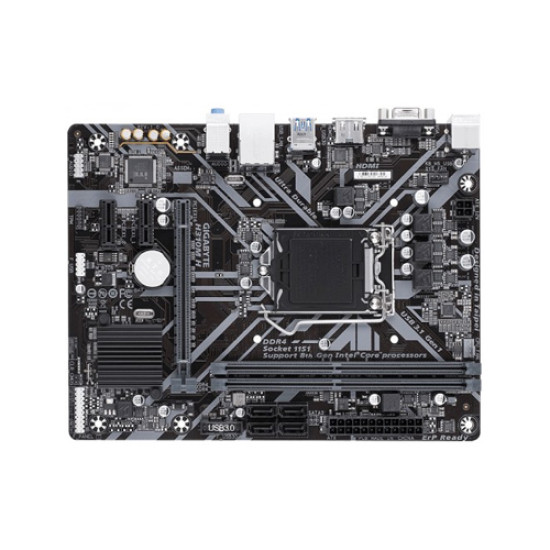

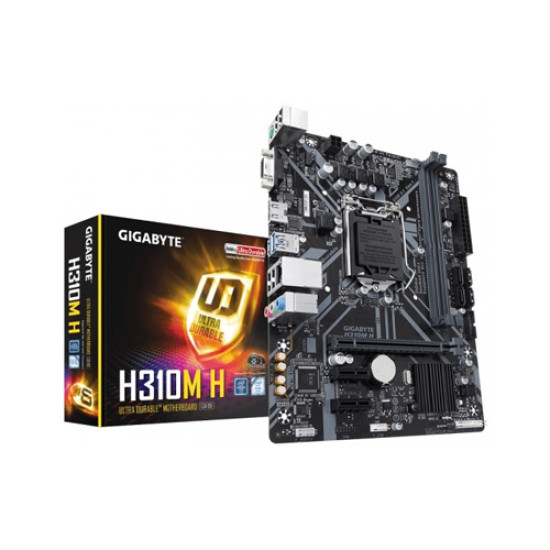

Name: Gigabyte H310M H 8th Gen Micro ATX Motherboard
Brand: Gigabyte
Availability: InStock

Gigabyte H310M H 8th Gen Micro ATX Motherboard

Gigabyte H310M H 8th Gen Micro ATX Motherboard

Status: In Stock
Brand: Gigabyte
Model: H310M H

Based on 0 reviews. - Write a review

0৳

Ex Tax: 0৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
Connector & ports
HDMI	1 x HDMI port
Connector & ports
Supported Storage	4 x SATA 6Gb/s connectors
Connector & ports
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Connector & ports
USB (s)	4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Generel information
Others	PCI 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Slots	2 x DIMM sockets
Type	DDR4
Graphics Specifications
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2.
Max Shared Memory	1 GB
Main Features
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channelV* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel® H310 Express Chipset
Form Factor	Micro ATX Form Factor; 22.6cm x 17.4cm
Supported CPU	Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 packageL3 cache varies with CPU
Memory Specifications
Max. Memory	32 GB
Supported Memory	Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
Warranty Information
Warranty	03 Years

Gigabyte H310M H 8th Gen Micro ATX Motherboard Price in Bangladesh

Gigabyte H310M H 8th Gen Micro ATX motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This 8-Channel HD Audio with High Quality Audio Capacitor board has binary channel DDR4 outside 32 GB memory and it has the capability ofUltra-Fast SATA 6Gb/ s connectors and USB3.1 Gen 1 interface. If we consider the plates of thisAnti-Sulfur Resistors Design board supports Intel HD plates having the maximum resolution of4096x2160@30 Hz for HDMI and1920x1200@60 Hz for D-Sub harborage. This High Quality Audio Capacitors and Audio board has 3 x PCIe niche, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, Smart Fan 5 features Multiple Temperature Detectors and Mongrel Addict Heads with Addict STOP and all new GIGABYTE ™ APP Center which is simple and easy use.
