Specification
| Basic Information |
| Supported CPU | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron ProcessorsL3 cache varies with the CPU |
| Chipset | Intel B760 Express Chipset |
| BIOS | 1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| Audio | Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| Expansion Slots |
| PCI | CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Memory |
| Type | DDR5 |
| Slots | 4 |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) of system memory |
| Graphics |
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz km1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.31 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version.Support for up to quad-display at the same time |
| Connector & Ports |
| HDMI | 1x HDMI |
| Display Port (s) | 2x DisplayPort |
| D-Sub (s) | 1x D-Sub |
| USB (s) | Chipset:1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)2 x USB 2.0/1.1 ports on the back panelChipset+2 USB 2.0 Hubs:4 x USB 2.0/1.1 ports available through the internal USB headers |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Supported Storage | CPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Audio | 3 x audio jacks |
| Internal I/O Ports | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x serial port header1 x parallel port header1 x S/PDIF Out header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
| Others |
| Special Features | Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus |
| Bundled Software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Warranty Information |
| Manufacturing Warranty | 3 years |

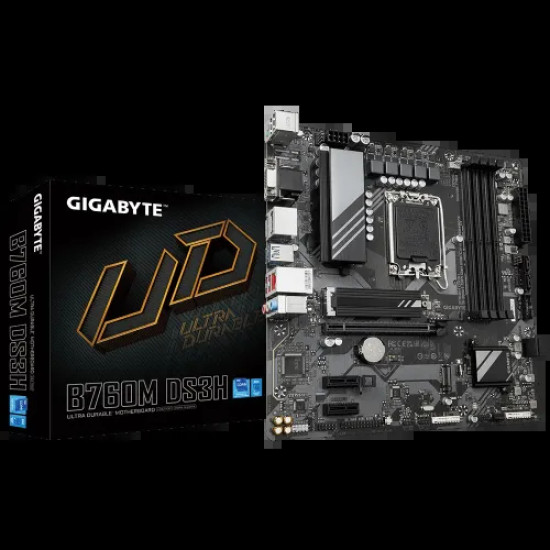

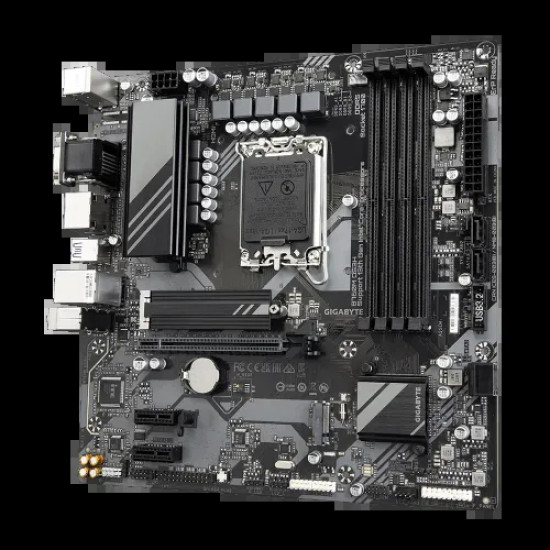

GIGABYTE B760M DS3H 13th and 12th Gen mATX Motherboard
The GIGABYTE B760M DS3H is an mATX motherboard designed for Intel Socket LGA 1700, providing support for both 13th and 12th Gen Series Processors. Its unparalleled performance is ensured by a Hybrid 6+2+1 Phases Digital VRM Solution, while the Dual Channel DDR5 with 4 DIMMs offers XMP Memory Module support for enhanced memory capabilities. The GIGABYTE B760M DS3H motherboard also features next-generation storage with 2 PCIe 4.0 x4 M.2 Connectors, equipped with an M.2 Thermal Guard to maintain optimal M.2 SSD performance. GIGABYTE B760M DS3H offers convenient features like an EZ-Latch PCIe 4.0 x16 Slot with Quick Release Design, Fast 2.5GbE LAN for reliable network connectivity, and extended connectivity options with Rear USB-C 10Gb/s, DP, and HDMI ports. The Smart Fan 6 technology ensures efficient cooling with multiple temperature sensors and hybrid fan headers with FAN STOP, while the Q-Flash Plus feature allows for BIOS updates without the need to install the CPU, memory, and graphics card.
