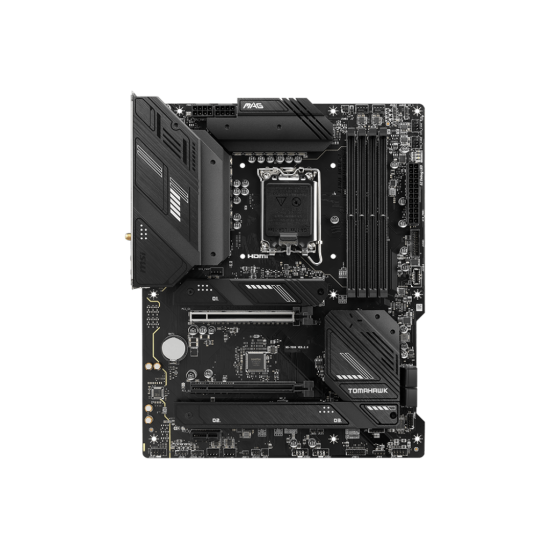

MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard

MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard

Status: In Stock
Brand: MSI
Model: MAG B760 TOMAHAWK WIFI DDR5

Based on 0 reviews. - Write a review

26,900৳

Ex Tax: 26,900৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
HDMI	Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x HDMI
Connector & ports
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
Default
Supports	Supported Memory:Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7000+ MHz 1DPC 2R Max speed up to 6600+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile
Generel information
Display Port	Support DP 1.4, maximum resolution of 8K 60Hz 1x DisplayPort
LAN	Realtek® 2.5Gbps LAN
Memory Capacity	128GB
PCI-E	2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot
Slots	2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
Main Features
Audio	Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF outpu
Chipset	INTEL B760
Form Factor	ATX 243.84mmx304.8mm
Supported CPU	Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Memory Specifications
Memory Type	DDR5
Network & Wireless
Wi-Fi	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax
Processor basics
Socket	LGA 1700
Warranty Information
Warranty	3 Years

MSI MAG B760 TOMAHAWK WIFI ATX Motherboard

UNITE AS ONEMeet the B760 TOMAHAWK WiFi, the latest edition to the MAG B670 series, designed and constructed to draw the full potential from the latest 13th Generation Raptor-Lake CPUs, by combining durability, value and stunning aesthetics with a military-inspired twist. Boasting support for DDR5 memory, an enhanced 12+1+1 duet rail power system, lightning-fast PCIe 5.0 technology, Gen4 M.2 storage and a premium thermal solution consisting of extended heatsink designs, M.2 Shield Frozr and high-end thermal pads. Combined these features allow you to push the boundaries of modern performance. Build something beautiful with MSI.

Intel B760Chipset

LGA 1700CPU Socket

12th/13th Gen Intel® Core™ ProcessorsCompatible CPU

ATXForm Factor

Outstanding Cooling Solution

7W/MK MOSFET THERMAL PADS

M.2 SHIELD FROZR

PUMP FAN SUPPORT

EXTENDED HEATSINK

High-Speed Transmission

2.5G LAN

WIFI

PCIE 5.0

SLOTS

MEMORY BOOST

A Stable Cornerstone for Your System

STEEL PCIE

ARMOR

DIGITAL

PWM

2OZ

COPPPER PCB

CORE

BOOST

Massive Cooling Potential

1. EXTENDED HEATSINKSLarge extended heatsinks increase the surface area of heat dissipation, ensuring even high-end processors can run at full speed.

2. M.2 SHIELD FROZRM.2 thermal solutions keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.

3. HEAVY PLATED VRM HEATSINKThis VRM heatsink, covers the upper MOS and helps to increase heat dissipation.

4. 7W/MK THERMAL PADHigh quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensures all cores run at their maximum performance.

Aggressive Power Design

12 PHASECore 75A Power Stage

1 PHASEGT Power

1 PHASEAUX Power

12+1+1 DUET RAIL POWER SYSTEMUnleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG B760 series motherboard is ready to sustain heavy gaming loadings.

Meet The Latest Generation

LIGHTNING GEN 5 PCI-ESay hello to double the speeds of the previous generation, PCIe 5.0 brings an x16 interface capable of reaching speeds of up to 128 GB/s.

SMT PCIE 5.0 SLOTThe advanced surface mount technology (SMT) PCIe slot reduces interference and electrical noise to fully support the PCIe 5.0 signal.

Maximise Your Storage Capabilities

FAST AND FUTURE READY STORAGEMSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
