| SSD |
| Form Factor | M.2 2280 |
| Interface Type | PCIe 4.0 x4 |
| MTBF | 1.5 Million Hours Reliability |
| Internal or External | Internal SSD |
| Capacity(GB) | 500GB |
| Sequential R/W | Read Speed: Up to 6,900 MB/s; Write Speed: Up to 5,000 MB/s; |
| RANDOM READ (4KB, QD32): Up to 800,000 IOPS; |
| Warranty | 3 Years Warranty |
| Flash Type | Samsung Elpis |

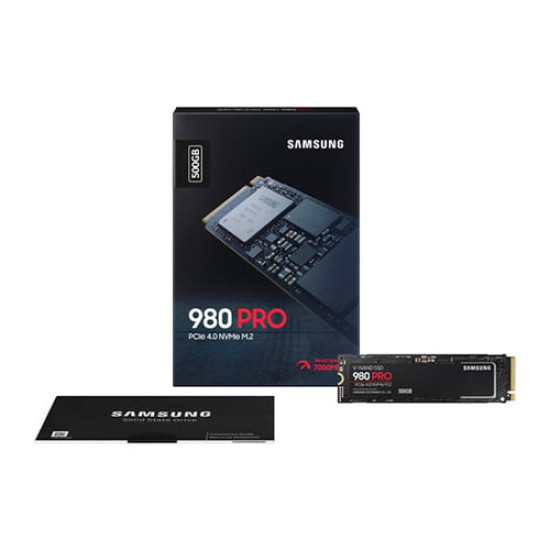

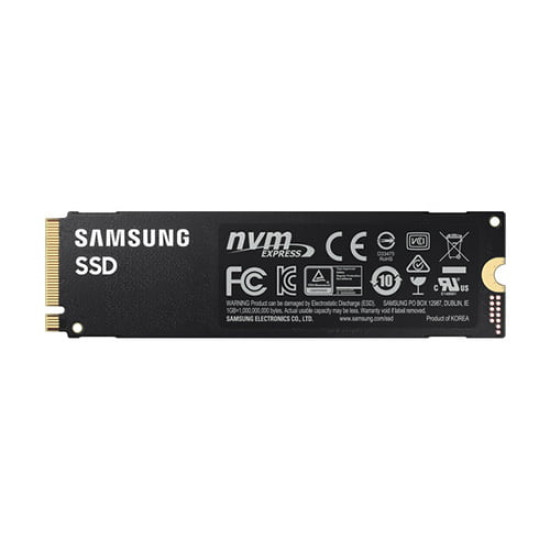

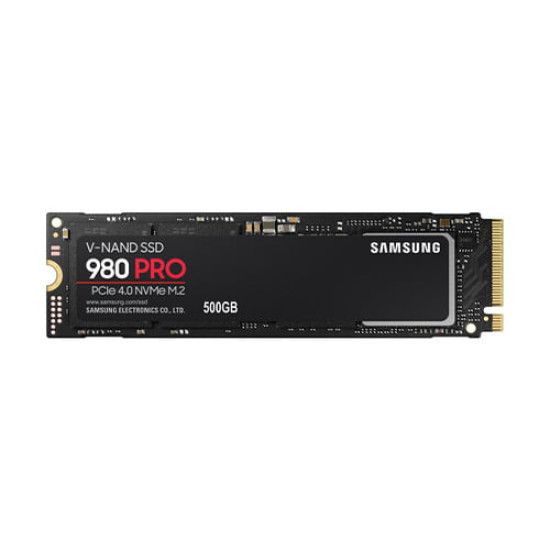

Samsung 980 PRO 500GB SSD Overview
The 980 PRO is for those who want to improve PC performance, enhance gaming experiences, and expand storage space. Built using their V-NAND 3-bit MLC flash technology and Elpis controller, the Samsung 980 PRO 500GB SSD from Samsung offers an M.2 2280 form factor and a PCIe 4.0 x4 / NVMe 1.3 interface to deliver sequential read speeds of up to 6900 MB/s and sequential write speeds of up to 5000 MB/s. Users will also have access to encryption via TCG/Opal 2.0 and MS eDrive, while a TBW (Total Bytes Written) rating of 600TB helps ensure a long operational life.
General Features
- Sequential reads of up to 7000 MB/s and sequential writes of up to 5000 MB/s with a PCIe 4.0 interface which is 2x faster than PCIe 3.0 and 12x faster than Samsung SATA SSDs.
- Intelligent TurboWrite 2.0 maximizes PCIe 4.0 write performance with enlarged TurboWrite regions
- The Samsung 980 PRO provides an endurance rating of up to 600TB
- A nickel-coated controller and a heat spreader label help the 980 PRO effectively dissipate the heat
- Samsung Dynamic Thermal Guard technology maintains the 980 PRO's temperature at an optimal level
- Power efficiency (performance/watt) is improved by up to 65% vs. the 970 EVO Plus
- The 980 PRO comes in a compact M.2 2280 form factor and is backward compatible with PCIe 3.0
