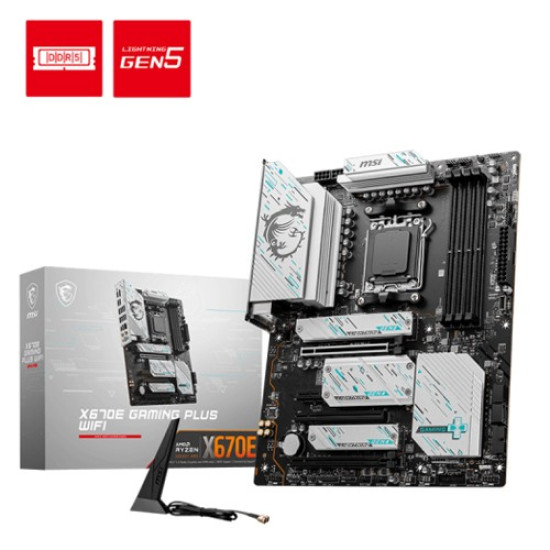

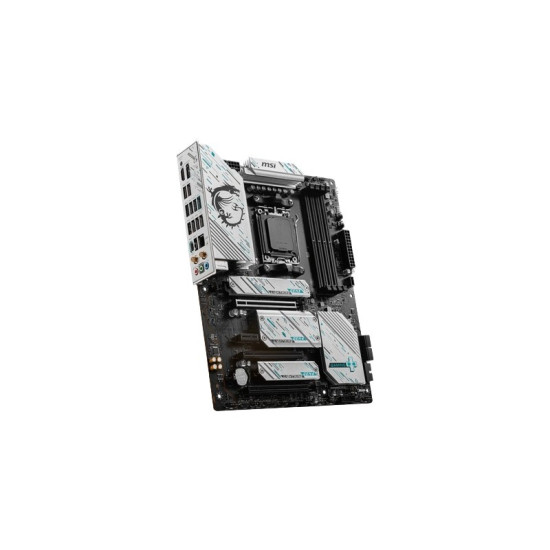

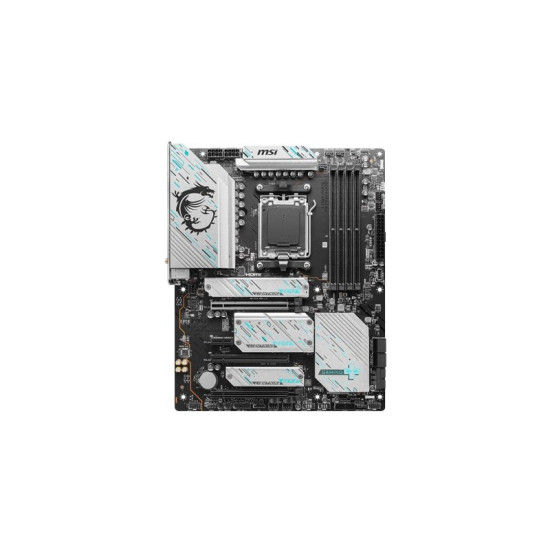

MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard

MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard

Status: In Stock
Brand: MSI
Model: X670E GAMING PLUS WIFI

Based on 0 reviews. - Write a review

37,400৳

Ex Tax: 37,400৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports

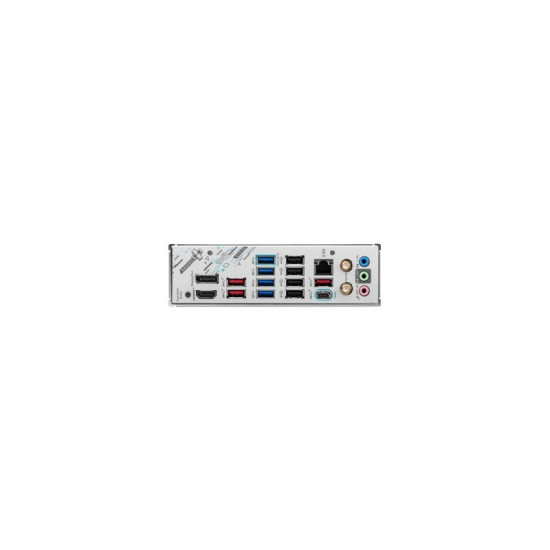

Internal I/O Ports	INTERNAL IO 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) BACK PANEL PORTS DisplayPort USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0 (Type-A) 2.5G LAN Flash BIOS Button HDMI USB 3.2 Gen 2x2 20Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors
Connector & ports
Supported Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
Connector & ports
LAN Port (s)	Realtek RTL8125BG 2.5Gbps LAN
Connector & ports
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
Generel information
Display Port (s)	1x DisplayPort
HDMI Port	1x HDMI
M.2 Socket	4x M.2
Manufacturing Warranty	3 Years
Memory	Supported Memory:7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHzMax. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
PCI	3x PCI-E x16 slot Supports x16/x1/x4 • Supports x16/x1/x4 (For Ryzen™ 7000 Series processors) • Supports x8/x1/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4/x1/x4 (For Ryzen™ 5 8500G processor)1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Slots	4
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Graphics Specifications
Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz
Main Features
Audio	Audio Connectors
Chipset	AMD X670
Form Factor	ATX 243.84mmx304.8mm
Supported CPU	Supports AMD Ryzen 8000/ 7000 Series Desktop Processors Socket AM5
Memory Specifications
Maximum Memory	192GB

MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard

MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard is a high-performance motherboard designed to support the latest AMD Ryzen 8000 and 7000 series desktop processors. With its AM5 socket and AMD X670 chipset, it offers a powerful foundation for gaming enthusiasts and content creators alike. One of the key features of this motherboard is its support for DDR5 memory, providing blazing-fast speeds for seamless multitasking and gaming experiences. With four DDR5 memory slots supporting overclocked frequencies up to 7800+ MHz, users can enjoy enhanced performance and responsiveness. In terms of expansion slots, the MSI X670E offers versatility with three PCIe x16 slots and a PCIe x1 slot. These slots support various configurations depending on the processor installed, ranging from x16/x1/x4 to x8/x1/x4, accommodating different graphics and expansion card setups. Storage options are plentiful with four M.2 slots and four SATA 6G ports, allowing for flexible storage configurations and high-speed data transfer rates. The M.2 slots support PCIe 5.0 and PCIe 4.0 standards, ensuring compatibility with the latest NVMe SSDs for rapid system boot times and application loading. Connectivity features are abundant, including USB 2.0, USB 3.2 Gen1, and USB 3.2 Gen2 ports both on the rear panel and internally. Networking capabilities are robust with a Realtek RTL8125BG 2.5Gbps LAN port and integrated AMD Wi-Fi 6E module, supporting MU-MIMO technology and a wide range of wireless standards for fast and reliable network connections. Audio performance is top-notch with the Realtek ALC897 Codec delivering 7.1-channel high-definition audio, immersing users in rich and immersive soundscapes for gaming and multimedia experiences. The motherboard also boasts a comprehensive array of internal and back panel ports, including HDMI and DisplayPort outputs for high-resolution display connectivity, a Flash BIOS button for easy firmware updates, and a TPM header for enhanced system security. Overall, the MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard combines cutting-edge technology, robust features, and expandability, making it an excellent choice for gamers and enthusiasts seeking a reliable and high-performance platform for their next build.

MSI X670E GAMING PLUS WIFI AM5 ATX Motherboard Features

Supports AMD Ryzen 8000/7000 Series Desktop Processors with AM5 socket
AMD X670 chipset for high-performance computing
DDR5 memory support with overclocking capabilities up to 7800+ MHz
Three PCIe x16 slots for versatile graphics card configurations
Multiple M.2 slots with PCIe 5.0 and PCIe 4.0 support for fast storage solutions
Realtek ALC897 Codec for 7.1-channel high-definition audio
Integrated AMD Wi-Fi 6E module for fast wireless connectivity
Realtek RTL8125BG 2.5Gbps LAN port for high-speed networking
HDMI 2.1 and DisplayPort 1.4 outputs for high-resolution display support
USB 3.2 Gen1 and Gen2 ports for fast data transfer
RAID support for both SATA and M.2 NVMe storage devices
Comprehensive array of internal and back panel ports for connectivity versatility
TPM header for enhanced system security.
