MSI PRO Z790-A WIFI DDR5 Intel 12th and 13th Gen ATX Motherboard

MSI PRO Z790-A WIFI DDR5 Intel 12th and 13th Gen ATX Motherboard

Status: In Stock
Brand: MSI
Model: PRO Z790-A WIFI

Based on 0 reviews. - Write a review

38,500৳

Ex Tax: 38,500৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Default
Generel information	Memory:4x DDR5, Maximum Memory Capacity 192GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Generel information
Audio Feature	Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
BACK PANEL PORTS	DisplayPort USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) S/PDIF-OUT
CPU	Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Expansion Slots	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
INTERNAL I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LAN	Intel 2.5Gbps LAN
Onboard Graphics	1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz
Operating System	Support for Windows® 11 64-bit, Windows® 10 64-bit
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
Wireless & Bluetooth	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA
Main Features
Chipset	INTEL Z790
Form Factor	ATX 243.84mmx304.8mm

MSI PRO Z790-A WIFI DDR5 Intel 12th and 13th Gen ATX Motherboard

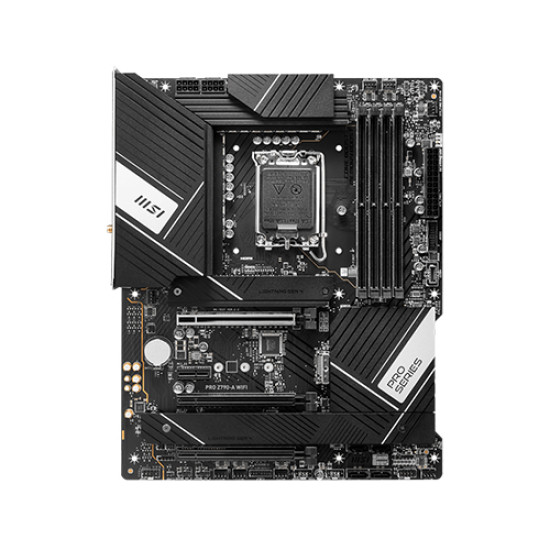

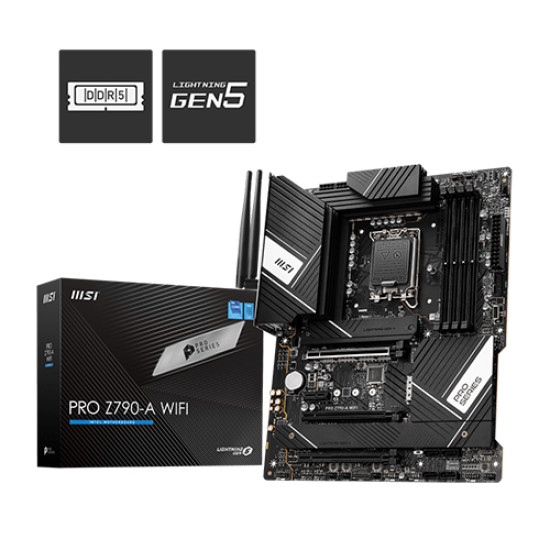

The MSI PRO Z790-A WIFI DDR5 motherboard is a high-performance motherboard designed for Intel's 12th and 13th Generation Core processors, Pentium Gold, and Celeron processors. It features the powerful INTEL Z790 chipset and offers support for DDR5 memory, making it a great choice for gamers, content creators, and professionals seeking top-tier performance.

With its ATX form factor and dimensions of 243.84mm x 304.8mm, the motherboard provides a spacious layout for seamless integration into ATX-compatible cases. It offers a range of expansion slots, including three PCI-E x16 slots and one PCI-E x1 slot, allowing for multiple graphics cards or other expansion cards to be installed simultaneously.

The motherboard boasts an impressive array of connectivity options. The back panel ports include DisplayPort, HDMI, USB 2.0, USB 3.2 Gen 1 and Gen 2 (Type-A and Type-C), S/PDIF-OUT, 2.5G LAN, Wi-Fi, Bluetooth, and audio connectors. It also features a convenient Flash BIOS button for easy and hassle-free BIOS updates.

In terms of internal connectivity, the motherboard provides various headers and connectors. These include power connectors for ATX_PWR and CPU_PWR, multiple fan connectors for CPU, pump, and system fans, front panel connectors for power and audio, USB ports, addressable RGB LED connectors, and more. Additionally, it supports TPM 2.0 for enhanced system security.

The MSI PRO Z790-A WIFI DDR5 motherboard offers exceptional memory support with four DDR5 slots and a maximum memory capacity of 192GB. It supports high-speed memory modules with frequencies ranging from 4800MHz to overclocked speeds of 7200MHz and above, thanks to Intel XMP 3.0 OC support. The motherboard also features Dual-Controller Dual-Channel mode for optimized memory performance.

For storage, the motherboard provides ample options, including four M.2 slots and six SATA 6G ports. The M.2 slots support various lengths and devices, including PCIe 4.0 x4 and SATA modes. It also supports RAID configurations for both SATA and M.2 NVMe storage devices, allowing for data redundancy and improved performance.

The motherboard incorporates Intel 2.5Gbps LAN for fast and reliable wired networking. Additionally, it features Intel Wi-Fi 6E with MU-MIMO technology and Bluetooth 5.3 for high-speed wireless connectivity, supporting a wide range of Wi-Fi and Bluetooth standards.

Features

Intel Z790 Chipset: The motherboard is equipped with the Intel Z790 chipset, which provides advanced features and support for the latest technologies.
ATX Form Factor: With its ATX form factor and dimensions of 243.84mm x 304.8mm, the motherboard fits into standard ATX-compatible cases.
Audio Features: It features the Realtek ALC4080 Codec, offering 7.1-channel USB high-performance audio for immersive sound. It also supports S/PDIF output for high-quality audio connectivity.
Back Panel Ports: The back panel offers a variety of ports, including DisplayPort, HDMI, USB 2.0, 2.5G LAN, Wi-Fi, Bluetooth, audio connectors, and a Flash BIOS Button for easy and convenient BIOS updates.
Expansion Slots: The motherboard provides three PCI-E x16 slots and one PCI-E x1 slot, allowing for multiple graphics card setups or other expansion cards.
Internal I/O: It features various internal connectors, including power connectors for ATX_PWR and CPU_PWR, fan connectors for CPU, pump, and system fans, front panel connectors, USB ports, RGB LED connectors, and more.
Memory Support: The motherboard supports up to 192GB of DDR5 memory across four DDR5 slots. It offers memory support ranging from 4800MHz to overclocked speeds of 7200MHz and above, with Intel XMP 3.0 OC support.
Onboard Graphics: The motherboard includes HDMI and DisplayPort connectors, supporting resolutions of up to 4K 60Hz and 8K 60Hz, respectively.
Operating System Support: It is compatible with Windows 11 64-bit and Windows 10 64-bit, providing compatibility with the latest operating systems.
RAID Support: The motherboard supports RAID configurations (RAID 0, 1, 5, and 10) for both SATA and M.2 NVMe storage devices, offering data redundancy and improved performance.

Overall, the MSI PRO Z790-A WIFI DDR5 motherboard offers a feature-rich and high-performance platform for Intel's 12th and 13th Generation processors. With its extensive connectivity options, memory support, storage capabilities, and advanced networking features, it provides a solid foundation for building powerful and efficient desktop systems for various demanding applications.
