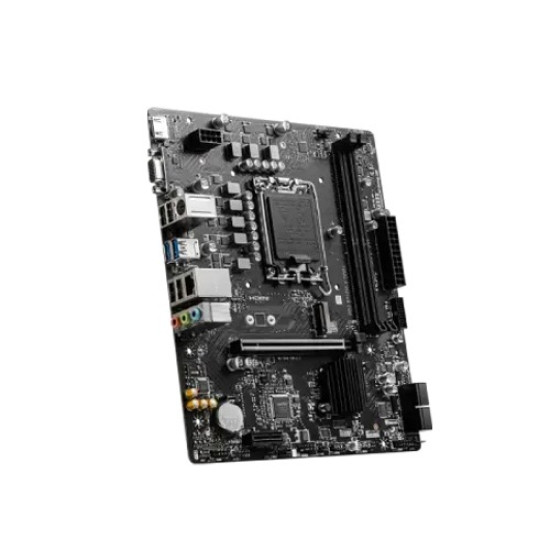

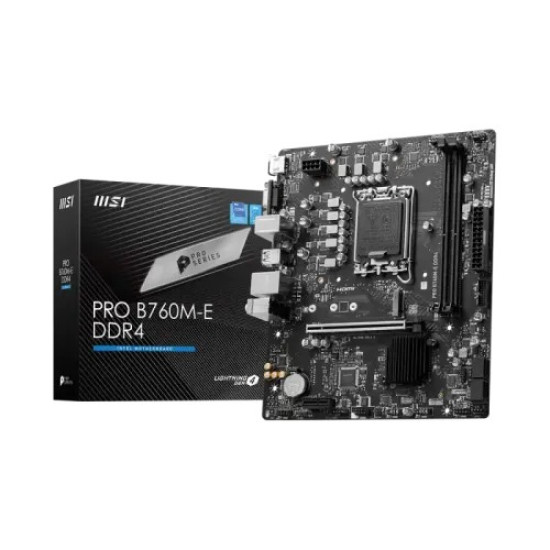

MSI PRO B760M-E DDR4 mATX Motherboard
MSI PRO B760M-E DDR4 mATX Motherboard stands out as a versatile and feature-rich platform for users seeking a reliable foundation for their desktop systems. Designed for compatibility with 14th, 13th, and 12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors, this motherboard employs the LGA 1700 socket, providing a broad spectrum of CPU support for various computing needs. In terms of form factor, the mATX (Micro ATX) design strikes a balance between compactness and functionality. With dimensions of 200mm x 236.16mm, it fits into a variety of cases while offering sufficient expansion options. The motherboard incorporates the Intel B760 chipset, ensuring stability and efficiency in handling diverse computing tasks. For audio capabilities, it features the Realtek ALC897 Codec, delivering 7.1-Channel High-Definition Audio for an immersive sound experience. In the realm of expansion, the MSI PRO B760M-E doesn't disappoint. It offers a PCI-E x16 slot and a PCI-E x1 slot for graphics and expansion cards. The PCIe 4.0 support from the CPU enhances data transfer rates, providing optimal performance for compatible components. Memory-wise, the motherboard supports DDR4 RAM with two DIMM slots, allowing a maximum memory capacity of 64GB. The overclocking capabilities enable users to push the memory frequency to higher levels, accommodating a range of speeds from 2133MHz to an impressive 4800MHz under overclocking conditions. Graphics options include HDMI 1.4 with HDR support, capable of a maximum resolution of 4K at 30Hz, and a VGA port with resolutions up to 2048x1536 at 50Hz. This versatility caters to users with varied display requirements. Connectivity is well-addressed with a complement of USB ports, including USB 2.0 and USB 3.2 Gen1 Type-A ports on both the front and rear panels. Networking is handled by the Realtek RTL8111H Gigabit LAN, ensuring reliable and high-speed connectivity. Storage options are diverse, with an M.2 slot supporting PCIe 4.0 x4 and SATA modes and four SATA 6G ports. RAID support for SATA storage devices adds a layer of data protection and performance optimization.
MSI PRO B760M-E DDR4 mATX Motherboard Features
- Supported CPU: 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Chipset: INTEL B760
- Form Factor: mATX
- Audio: Realtek ALC897 Codec, 7.1-Channel High-Definition Audio
- Expansion Slots: 1x PCI-E x16 slot, 1x PCI-E x1 slot, PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
- Memory: DDR4, 2 slots, Supported Memory: 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
- Maximum overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz, 1DPC 2R Max speed up to 4600+ MHz
- Dual-Channel mode support
- Non-ECC, un-buffered memory support
- Intel Extreme Memory Profile (XMP) support
- Maximum memory: 64GB
- Graphics: 1x HDMI, Support HDMI 1.4 with HDR, the maximum resolution of 4K 30Hz, 1x VGA, Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

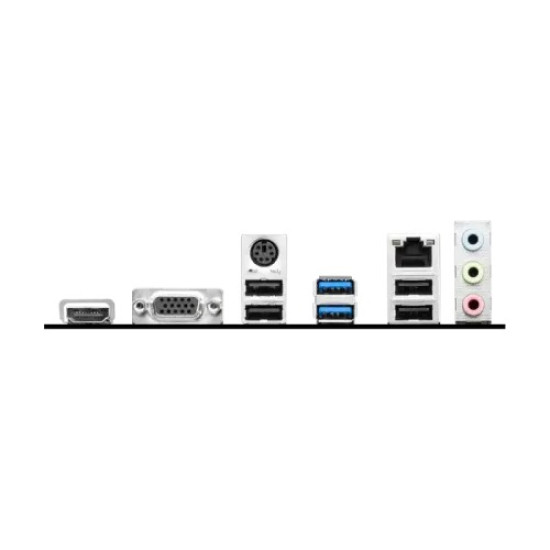

- Connector & Ports: 4x USB 2.0 (Rear), 4x USB 2.0 (Front), 2x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front), 1x HDMI, 1x VGA, 1x Com Port, 1x RGB LED connector, 2x EZ Debug LED
- RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Special Features: 4x EZ Debug LED, TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
