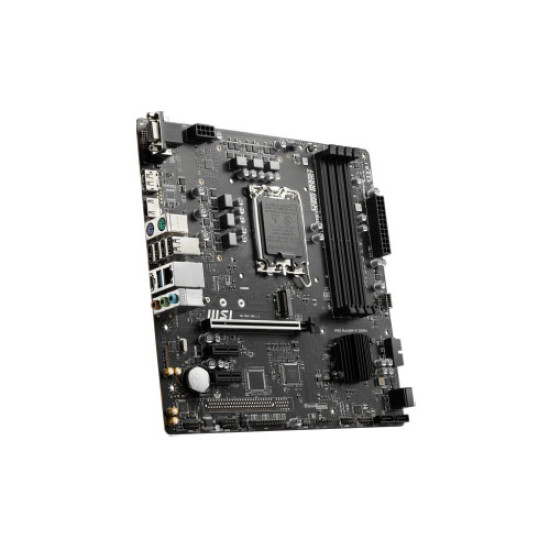

MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard

New

MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard

Status: In Stock
Brand: MSI
Model: PRO B660M-P

Based on 0 reviews. - Write a review

17,100৳

Ex Tax: 17,100৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
USB (s)	1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports
Connector & ports
Internal I/O Ports	INTERNAL USB CONNECTORS 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports
Connector & ports
Supported Storage	4x SATA 6Gb/s ports (From B660 chipset) 1 1x M.2 slot (Key M) M2_1 slot (From B660 Chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices
Connector & ports
HDMI	1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz
Connector & ports
LAN Port (s)	1x Realtek RTL8111H 1Gbps LAN controller
Default
Memory Specifications	Supported Memory:4x DDR4 memory slots, supporting up to 128GB1 Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Generel information
Display Port (s)	1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz
Manufacturing Warranty	03 years warranty
PCI	1x PCIe x16 slot PCI_E1 (From CPU) Supports up to PCIe 4.0 x16 2x PCIe x1 slots PCI_E2 & PCI_E3 (Fom B660 chipset) Supports up to PCIe 3.0
Slots	4x DDR4 memory slots
Special Features	1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED
TPM (Trusted Platform Module )	1x TPM module connector
Type	DDR4
VGA (s)	1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Graphics Specifications
Graphics	1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Main Features
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
BIOS	BIOS FEATURES 1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language
Chipset	Intel B660 Chipset
Form Factor	M-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU	Supports 12th Gen Intel Core Processors, Pentium Gold, and Celeron® Processors 1 Processor socket LGA1700
Memory Specifications
Max. Memory	supporting up to 128GB

MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard

MSI PRO B660M-P DDR4 Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. This motherboard Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4800+(OC) MHz. With the premium layout and digital power design to support more cores and provide better performance. This motherboard has Advanced technology, that helps to deliver pure data signals for the best performance, stability, and compatibility. This motherboard has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr. The MSI PRO B660M-P DDR4 motherboard comes with Premium Thermal Solution, which featured with 7W/mK pad, an additional choke thermal pad, and M.2 Shield Frozr are built for high-performance system and non-stop works. You can Upgrade the network solution with a 2.5G LAN for professional and multimedia use. Delivers a secure, stable, and fast network connection. 1Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for professional gamers and demanding users.
