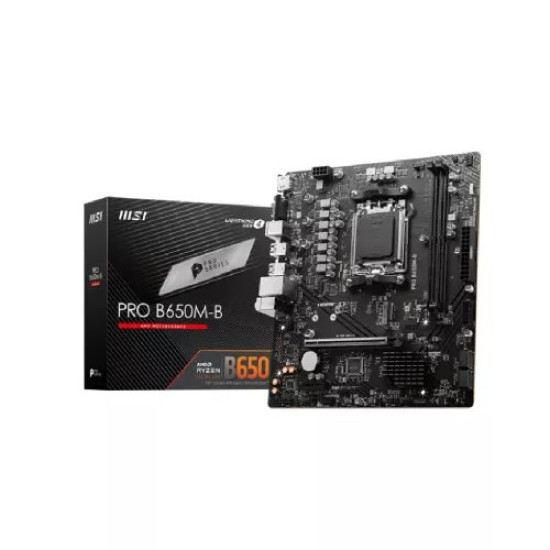

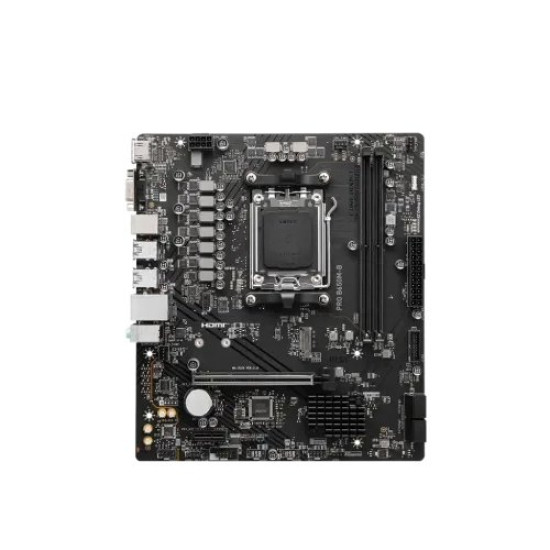

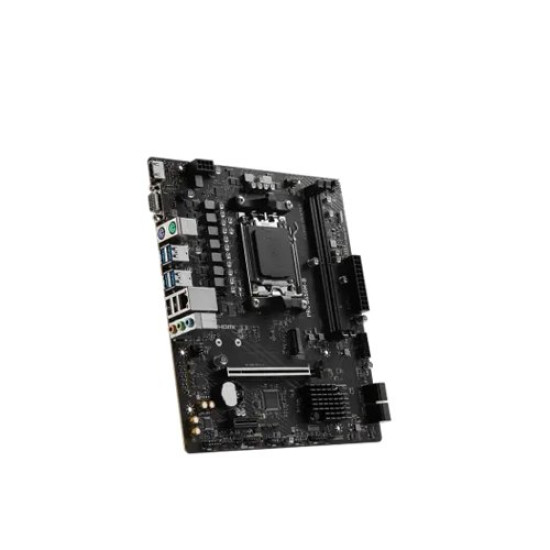

MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard
The MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard is a reliable and feature-packed motherboard designed to support AMD Ryzen 8000 and 7000 series desktop processors. With its AM5 socket and AMD B650 chipset, it offers a stable foundation for building a powerful PC system. This motherboard comes in a compact mATX form factor, measuring 243.84mmx243.84mm, making it suitable for smaller PC builds without compromising on performance. It supports DDR5 memory technology, featuring two DDR5 slots with a maximum memory capacity of 96GB. The memory slots support a wide range of memory speeds, ranging from 4800MHz (JEDEC) up to 6800MHz (OC), allowing for high-speed data transfer and smooth multitasking capabilities. For graphics output, the motherboard features 1x HDMI port and 1x VGA port, supporting resolutions of up to 4K 60Hz and 2048x1536 50Hz, respectively. This provides flexibility for connecting high-resolution displays for immersive gaming or productivity tasks. In terms of expansion slots, it includes 1x PCI-E x16 slot and 1x PCI-E x1 slot, allowing for the installation of dedicated graphics cards and other expansion cards. The PCI_E1 Gen PCIe 4.0 slot supports up to x16 from the CPU, while the PCI_E2 Gen PCIe 3.0 slot supports up to x1 from the chipset. Connectivity options are abundant, with a range of USB ports including USB 2.0 and USB 3.2 Gen1 Type A ports, as well as a Realtek RTL8125BG 2.5G LAN port for high-speed wired networking. Storage options include 1x M.2 slot supporting PCIe 4.0 x4 devices and 4x SATA 6G ports with support for RAID 0, RAID 1, and RAID 10 configurations. With a comprehensive set of internal I/O ports, including power connectors, fan headers, RGB LED connectors, and USB headers, this motherboard offers ample customization and expansion options to meet various user requirements. Backed by a 3-year manufacturing warranty, the MSI PRO B650M-B DDR5 AMD AM5 m-ATX Motherboard provides peace of mind and reliability for your PC build projects. Whether for gaming, content creation, or everyday computing tasks, this motherboard delivers excellent performance and functionality.
Features:
- CPU Support: Compatible with AMD Ryzen 8000/7000 Series Desktop Processors, offering excellent performance for various computing tasks.
- Chipset: Powered by the AMD B650 chipset, ensuring stable and efficient operation.
- Form Factor: mATX form factor (243.84mmx243.84mm), providing a compact design suitable for smaller PC builds.
- Audio: Equipped with Realtek ALC897 Codec, delivering 7.1-channel high-definition audio for immersive sound experiences.
- Expansion Slots: Includes 1x PCI-E x16 slot and 1x PCI-E x1 slot, supporting PCIe 4.0 and PCIe 3.0 respectively for flexible expansion options.
- Memory Support: Supports DDR5 memory type with 2 slots, allowing for a maximum memory capacity of 96GB and speeds ranging from 4800MHz to overclocked frequencies up to 6800MHz.

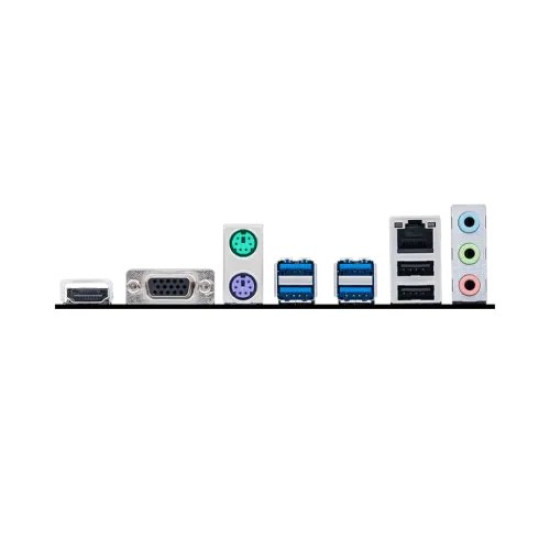

- Graphics: Provides 1x HDMI port and 1x VGA port, supporting resolutions of up to 4K 60Hz and 2048x1536 50Hz respectively for high-quality video output.
- Connectivity: Offers a variety of USB ports, including 2x USB 2.0 and 4x USB 3.2 Gen1 Type-A ports on the rear, and 4x USB 2.0 and 2x USB 3.2 Gen1 Type-A ports on the front panel. Also features a Realtek RTL8125BG 2.5G LAN port for high-speed networking.
- Storage: Includes 1x M.2 slot supporting PCIe 4.0 x4 devices and 4x SATA 6G ports with RAID 0, RAID 1, and RAID 10 support for versatile storage configurations.
- Internal I/O Ports: Provides various internal connectors including power connectors, fan headers, front panel connectors, audio connectors, RGB LED connectors, and TPM pin headers, allowing for easy customization and expansion.
- Trusted Platform Module (TPM): Features TPM 2.0 support for enhanced system security.
- Warranty: Backed by a 3-year manufacturing warranty, ensuring peace of mind and reliability.
Overall, the MSI PRO B650M-B motherboard offers a comprehensive set of features and robust performance, making it an excellent choice for building high-performance desktop systems.
