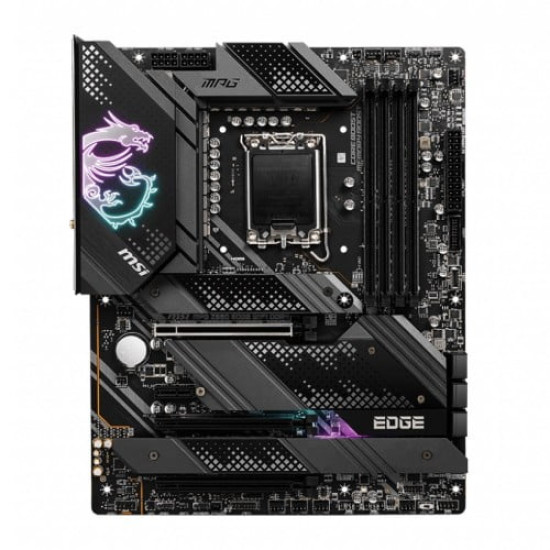

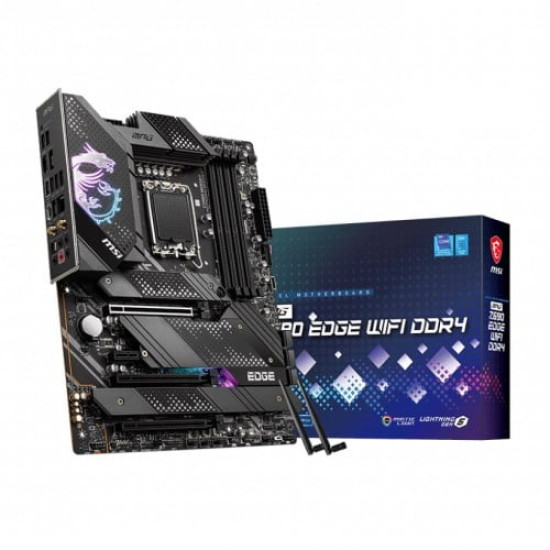

MSI MPG Z690 EDGE WIFI DDR4 12th Gen ATX Motherboard

MSI MPG Z690 EDGE WIFI DDR4 12th Gen ATX Motherboard

Status: In Stock
Brand: MSI
Model: MPG-Z690-G

Based on 0 reviews. - Write a review

42,000৳

Ex Tax: 42,000৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports

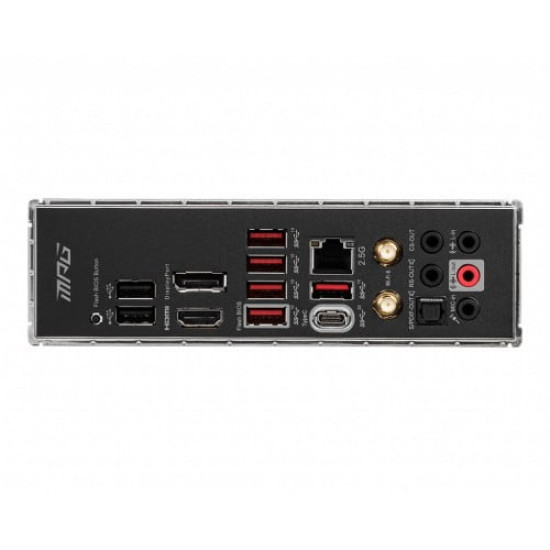

Internal I/O Ports	1x 24-pin ATX main power connector2x 8-pin ATX 12V power connectors6x SATA 6Gb/s connectors4x M.2 slots (M-Key)1x USB 3.2 Gen 2 10Gbps Type-C port1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin water-pump fan connector6x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1xTPM module connector1x Clear CMOS jumper1x Tuning controller connector1x TBT connector (Supports RTD3)
Connector & ports
HDMI	1x HDMI 2.1 with HDR port
Connector & ports
Supported Storage	6x SATA 6Gb/s portsSATA5~8 (From Z690 Chipset)SATAA~B (From ASMedia ASM1061)2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMediaASM1061)4x M.2 slots (Key M)M2_1 slot (From CPU)Supports PCIe 4.0 x4Supports 2260/ 2280/ 22110 storage devicesM2_2 slot (From Z690 Chipset)Supports PCIe 4.0 x4Supports 2260/ 2280 storage devicesM2_3 slot (From Z690 Chipset)Supports PCIe 4.0 x4Supports SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesM2_4 slot (From Z690 Chipset)Supports PCIe 4.0 x4Supports SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesM2_2~4 support Intel Optane MemorySupports Intel Smart Response Technology for Intel Core processorsSupports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices
Connector & ports
LAN Port (s)	1x Intel I225V 2.5Gbps LAN controller
Connector & ports
USB (s)	Intel Z690 Chipset1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel)2x USB 2.0 Type-A ports on the back panel2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connectorUSB Hub-GL850G4x USB 2.0 ports available through internal connectors
Default
Memory Specifications	Supported Memory:Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)1Max. overclocking frequency:1DPC 1R Max speed up to 5200+ MHz1DPC 2R Max speed up to 4800+ MHz2DPC 1R Max speed up to 4400+ MHz2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel modeSupports non-ECC, un-buffered memorySupports Intel Extreme Memory Profile (XMP)
Generel information
Display Port (s)	1x DisplayPort 1.4 with HBR3
PCI	3x PCIe x16 slotsPCI_E1 slot (From CPU)Supports PCIe 5.0 x16PCI_E3 & PCI_E4 slots (From Z690 chipset)Supports PCIe 3.0 x41x PCIe 3.0 x1 slot (From Z690 chipset
Slots	4x DDR4 memory slots
Type	DDR4
Wireless Communication module	Intel Wi-Fi 6The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.2
Graphics Specifications
Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60HzSupports AMD CrossFire Technology
Main Features
Audio	Realtek ALC4080 Codec7.1-Channel High Definition AudioSupports S/PDIF output
Chipset	Intel Z690 Chipset
Form Factor	ATX Form Factor12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Supported CPU	Supports 12th Gen Intel Core, Pentium Gold and Celeron ProcessorsProcessor socket LGA1700
Memory Specifications
Maximum Memory	128GB
Warranty Information
Warranty	3 years

MSI MPG Z690 EDGE WIFI DDR4 Motherboard

MSI MPG Z690 EDGE WIFI DDR4 Motherboard supports 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR4 Memory, up to 5200+(OC) MHz. It delivers a Lightning Fast Game experience with PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. It comes with an Enhanced Power Design. Direct 16+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost. It is equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. 16.8 million colors / fancy lighting effects can be controlled in one click. MYSTIC LIGHT SYNC supports RGB, RAINBOW(ARGB), Corsair LED strips, and Ambient devices. The MSI MPG Z690 EDGE WIFI DDR4 comes with a 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has a 6-layer PCB made of 2oz thickened copper and server-grade level material.[ninja_tables id="47210"]
