MSI MAG B660M MORTAR WIFI DDR5 Motherboard

MSI MAG B660M MORTAR WIFI DDR5 Motherboard

Status: In Stock
Brand: MSI
Model: MAG-B660M-WIFI

Based on 0 reviews. - Write a review

27,500৳

Ex Tax: 27,500৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
Supported Storage	4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)2x M.2 slots (Key M)M2_1 slot (From CPU)Supports PCIe 4.0 x4Supports 2242/ 2260/ 2280 storage devicesM2_2 slot (From B660 Chipset)Supports PCIe 4.0 x4Supports SATA 6Gb/sSupports 2242/ 2260/ 2280 storage devicesSupports Intel Optane Memory
Connector & ports
HDMI	HDMI 2.1 Port (BACK PANEL PORTS)
Connector & ports
USB (s)	Intel B660 Chipset1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector2x USB 3.2 Gen 1 5Gbps ports available through the internal connector4x USB 2.0 ports on the back panelUSB Hub-GL35903x USB 3.2 Gen 2 10Gbps Type-A ports on the back panelUSB Hub-GL850G4x USB 2.0 ports available through internal connectors
Default

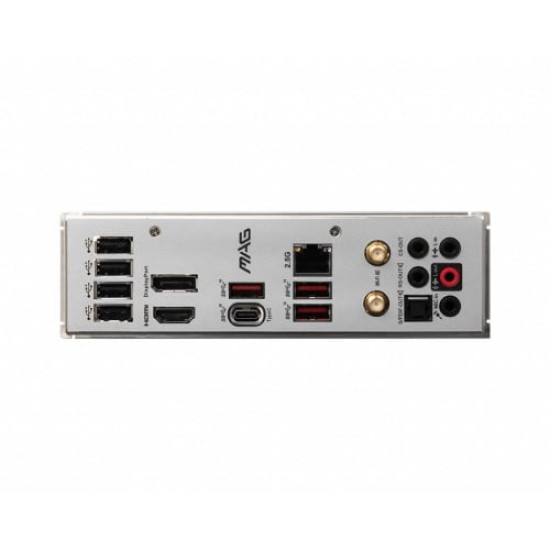

Connector & ports	Internal I/O Ports:INTERNAL CONNECTORS:1x 24-pin ATX main power connector2x 8-pin ATX 12V power connectors6x SATA 6Gb/s connectors2x M.2 slots (M-Key)1x USB 3.2 Gen 2 10Gbps Type-C connector1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)1x 4-pin CPU fan connector1x 4-pin water-pump fan connector2x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x Clear CMOS jumper1x TBT connector (supports RTD3)1x Tuning Controller connectorBACK PANEL PORTS:USB 2.0 PortDisplayPort 1.4USB 3.2 Gen 2 10Gbps Type-A2.5G LAN PortWi-Fi / Bluetooth AntennaHD Audio ConnectorsHDMI 2.1 PortUSB 3.2 Gen 2x2 20Gbps Type-COptical S/PDIF OUT
Memory Specifications	Supported Memory:Supports 1R 4800 MHz (by JEDEC & POR)Max. overclocking frequency:1DPC 1R Max speed up to 6200+ MHz1DPC 2R Max speed up to 5200+ MHz2DPC 1R Max speed up to 4000+ MHz2DPC 2R Max speed up to 4000+ MHzSupports Intel XMP 3.0 OCSupports Dual Controller Dual-Channel modeSupports non-ECC, un-buffered memory
Generel information
Display Port (s)	DisplayPort 1.4 (BACK PANEL PORTS)
PCI	2x PCIe x16 slotsPCI_E1 slot (From CPU)Supports PCIe 4.0 x16PCI_E3 slot (From B660 Chipset)Supports PCIe 3.0 x41x PCIe 3.0 x1 slot
Slots	4x DDR5 memory slots
Graphics Specifications
Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Main Features
Audio	Realtek ALC1200 Codec7.1-Channel High Definition AudioSupports S/PDIF output
Chipset	Intel B660 Chipset
Form Factor	Micro-ATX Form Factor9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Supported CPU	Supports 12th Gen Intel Core, Pentium Gold and Celeron processorsProcessor socket LGA1700
Memory Specifications
Maximum Memory	support up to 128GB
Memory Type	DDR5
Warranty Information
Warranty	3 years

MSI MAG B660M MORTAR WIFI DDR5 Motherboard

MSI MAG B660M MORTAR WIFI DDR5 Motherboard supports with 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket, DDR5 Memory, up to 6200+(OC) MHz. This motherboard comes with Premium Thermal Solution, so that Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop works and also this motherboard has 2.5G LAN and Intel Wi-Fi 6E Solution, so that it helps to Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. By Utilizing 12th Gen Intel processors, the MSI B660 motherboards feature with latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. This motherboard designed with Lightning M.2, which helps to Running at PCIe Gen 4 maximizes performance for NVMe based SSDs. It is also has Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1 and also With Steel armor PCIe slots, that supports AMD Crossfire. Here, the 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for Gamers.[ninja_tables id="47059"]
