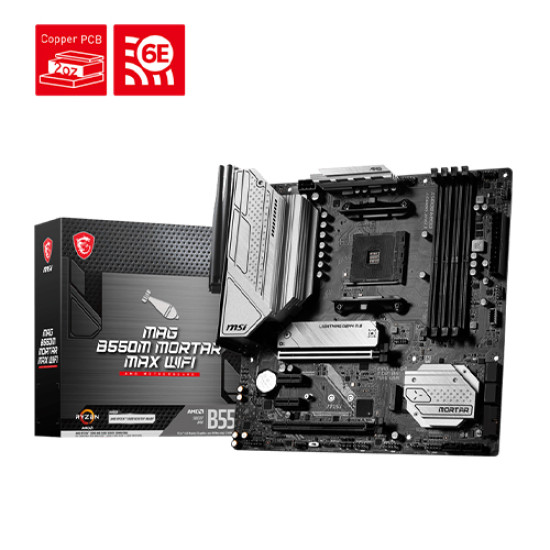

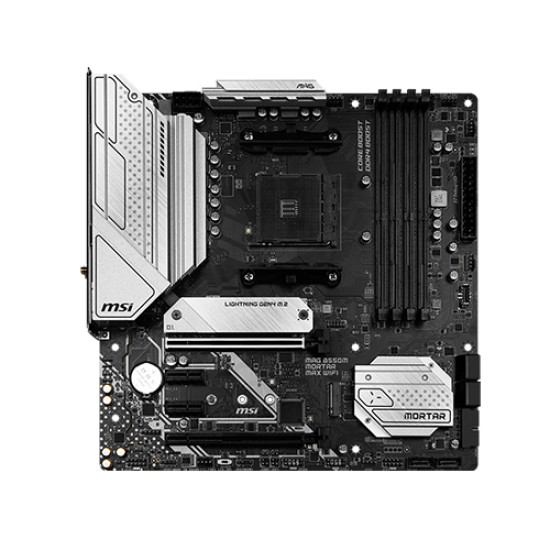

MSI MAG B550M MORTAR MAX WIFI AMD AM4 Micro ATX Motherboard
The MSI MAG B550M MORTAR MAX WIFI is a feature-packed motherboard designed for AMD AM4 processors, offering excellent performance and a compact micro-ATX form factor. It is built around the AMD B550 chipset, which provides a solid foundation for gaming and productivity tasks. Whether you're a casual user or an avid gamer, this motherboard delivers a reliable and efficient computing experience.
The motherboard features an AM4 socket, which is compatible with a wide range of AMD processors, including the latest Ryzen series. With support for up to 128GB of DDR4 memory across four DIMM slots, you can expect smooth multitasking and enhanced overall system performance. The dual memory channel configuration ensures fast and efficient data transfer.

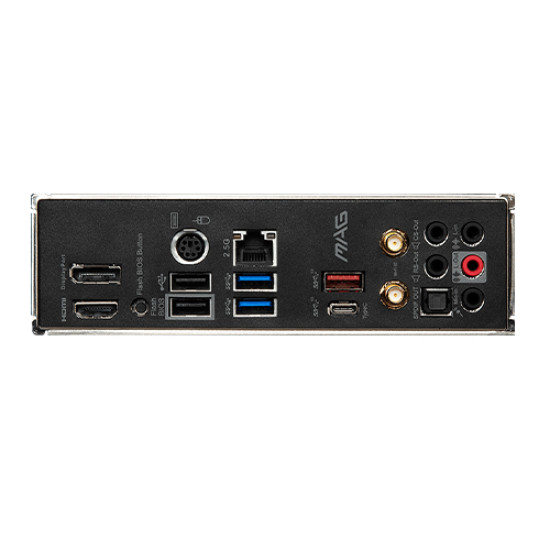

In terms of connectivity, the MSI MAG B550M MORTAR MAX WIFI offers a variety of ports and connectors. It includes HDMI and DisplayPort outputs for connecting multiple monitors or displays. There are five audio ports with an optical S/PDIF output, allowing for high-quality audio output. The motherboard also provides six SATA 6Gb/s connectors and two M.2 slots for high-speed storage options.
The internal I/O ports offer plenty of options for expansion and customization. You'll find USB 3.2 Gen 1 Type-C and Gen 1 connectors, along with USB 2.0 connectors for additional peripheral devices. The motherboard also includes multiple fan connectors for efficient cooling and a clear CMOS jumper for easy troubleshooting. Additionally, it features RGB and Rainbow LED connectors, allowing you to customize the lighting effects to suit your style.
For gaming enthusiasts, the MSI MAG B550M MORTAR MAX WIFI offers PCI Express slots for adding high-performance graphics cards. The motherboard supports AMD CrossFire technology, enabling multi-GPU setups for enhanced gaming performance. It also supports RAID configurations, allowing you to set up data redundancy or improve disk performance.
One of the standout features of this motherboard is its built-in Wi-Fi 6E capability, providing ultra-fast and stable wireless connectivity. Wi-Fi 6E offers improved speeds and reduced latency compared to previous generations, ensuring a smooth online gaming or streaming experience. The inclusion of Wi-Fi and Bluetooth connectivity adds versatility and convenience to the overall package.
Features
- AMD B550 Chipset: The motherboard is built on the AMD B550 chipset, which provides excellent performance and compatibility for AMD AM4 processors.
- Micro-ATX Form Factor: The compact micro-ATX form factor makes it suitable for smaller PC builds without sacrificing functionality.
- AM4 Socket: The motherboard supports the AM4 socket, ensuring compatibility with a wide range of AMD processors, including the latest Ryzen series.
- HDMI and DisplayPort: It comes with HDMI and DisplayPort outputs, allowing for easy connectivity to multiple displays or monitors.
- Audio Excellence: The motherboard boasts five audio ports and supports optical S/PDIF output. It features the Realtek ALC1200/ALC1220P Codec for high-quality audio performance.
- Expansion Slots: The motherboard offers one PCIe 3.0/4.0 x16 slot (PCI_E1) for high-speed graphics cards, one PCIe 3.0 x16 slot (PCI_E4) that supports x4 mode, and two PCIe 3.0 x1 slots for additional expansion cards.
- Memory Support: With four DIMM slots, it supports a maximum memory capacity of 128GB. The dual memory channel configuration ensures efficient data transfer and multitasking capabilities.
- High-Speed Storage: The motherboard features two M.2 slots (M-Key) for ultra-fast NVMe SSDs, offering rapid data transfer speeds and reducing load times.
- Multiple USB Connectors: It includes a USB 3.2 Gen 1 5Gbps Type-C port, a USB 3.2 Gen 1 5Gbps connector (supports additional two USB 3.2 Gen 1 5Gbps ports), and two USB 2.0 connectors (supports additional four USB 2.0 ports), providing ample connectivity options for peripherals.
- Enhanced Cooling: The motherboard has a 4-pin CPU fan connector, a 4-pin water-pump fan connector, and three 4-pin system fan connectors, ensuring efficient cooling for stable system performance.
- RGB Lighting: It comes with a 4-pin RGB LED connector and two 3-pin RAINBOW LED connectors, allowing users to customize and synchronize RGB lighting effects with other compatible devices.
In summary, the MSI MAG B550M MORTAR MAX WIFI is a highly capable micro-ATX motherboard that offers excellent performance, extensive connectivity options, and advanced features. Whether you're building a gaming rig or a workstation, this motherboard provides a solid foundation for your system, combining power, reliability, and customization options to meet your computing needs.
