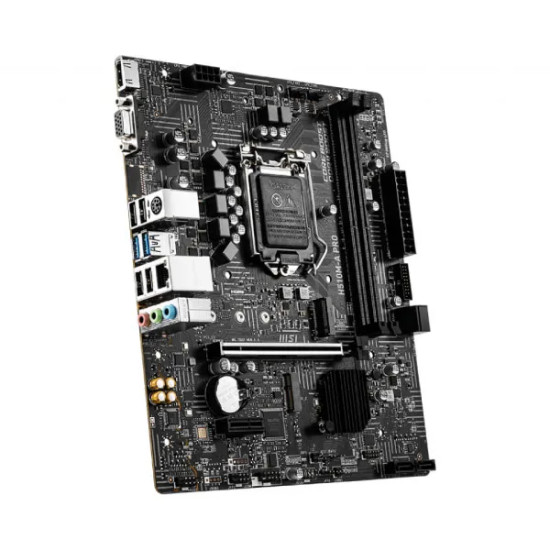

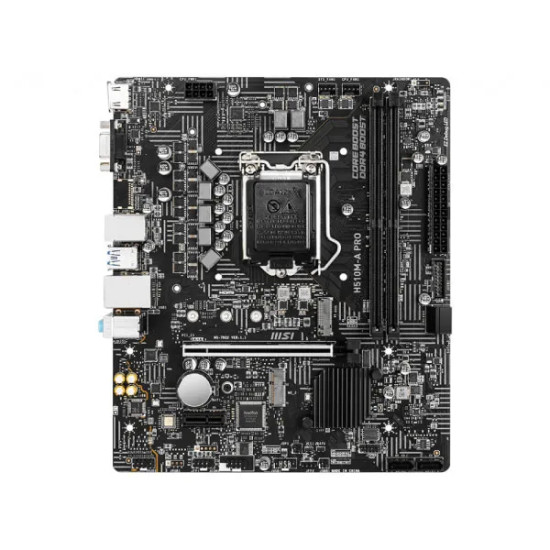

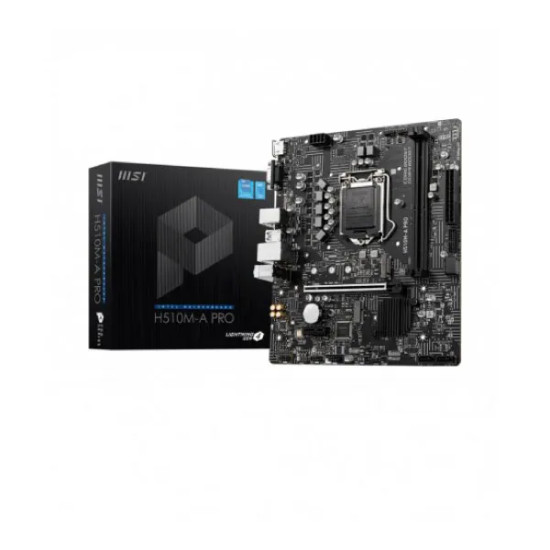

MSI H510M-A PRO Intel 10th Gen And 11th Gen Micro-ATX Motherboard
The MSI H510M-A PRO Micro-ATX motherboard is a reliable and efficient platform designed to support both 10th Gen and 11th Gen Intel Core processors, Pentium Gold, and Celeron processors. With its LGA 1200 socket and Intel H510 chipset, this motherboard offers a stable foundation for building a powerful and versatile system. Featuring a compact mATX form factor, the motherboard is suitable for space-conscious builds without compromising on performance. The 7.1-Channel High Definition Audio ensures an immersive audio experience, making it ideal for gaming, multimedia, and professional applications. In terms of expansion, the MSI H510M-A PRO provides 1x PCIe x16 slot supporting up to PCIe 4.0 for 11th Gen Intel CPUs and PCIe 3.0 for 10th Gen Intel CPUs. Additionally, there is a PCIe 3.0 x1 slot for added flexibility. The motherboard includes 2 DDR4 memory slots supporting up to 64GB of RAM in dual-channel mode, with support for speeds up to 3200 MHz (for 11th Gen Intel CPUs). Graphics options are diverse, with 1x HDMI 2.0b port with HDR support, 1x VGA port, and 1x DisplayPort 1.4 port, providing a range of display connectivity options with resolutions up to 4K at 60Hz. Connectivity is a key feature, with 4x USB 3.2 Gen 1 5Gbps ports, 6x USB 2.0 ports, and a LAN port powered by the Intel I219V 1Gbps LAN controller. Storage options include 4x SATA 6Gb/s ports and 1x M.2 slot supporting PCIe 3.0 x4 and SATA 6Gb/s for high-speed data transfer. Internally, the motherboard boasts a range of I/O ports, including USB connectors, SATA connectors, CPU and system fan connectors, front panel audio connectors, and more, ensuring compatibility with various peripherals and components. The PRO series distinguishes itself by promoting efficiency and productivity. With stable functionality and high-quality assembly, PRO series motherboards like the H510M-A PRO deliver optimized professional workflows, minimizing troubleshooting and ensuring longevity. Backed by a 3-year manufacturing warranty, this motherboard is a solid choice for users seeking a reliable foundation for their Intel 10th and 11th Gen-based systems.
Some additional features:
- CPU Compatibility: The motherboard supports both 10th Gen and 11th Gen Intel Core Processors, as well as Pentium Gold and Celeron Processors. It features an LGA 1200 socket for these processors.
- Chipset: It is equipped with the Intel H510 Chipset, which provides a solid foundation for system performance.
- Form Factor: The motherboard features a Micro-ATX (mATX) form factor, which is compact and fits well in smaller PC cases.
- Audio Quality: It offers 7.1-Channel High Definition Audio for immersive and high-quality sound, making it suitable for entertainment and gaming.
- PCIe Slots: The motherboard has 1x PCIe x16 slot, which supports up to PCIe 4.0 for 11th Gen Intel CPUs and up to PCIe 3.0 for 10th Gen Intel CPUs. Additionally, there is 1x PCIe 3.0 x1 slot for expansion cards.
- M.2 Slot: It features 1x M.2 slot with an E key for WiFi module installation (M2_2), allowing you to add wireless connectivity.
- Memory Support: The motherboard has 2x DDR4 memory slots supporting Dual-Channel mode. It supports a variety of memory speeds, including 2133/2666/2933 MHz for 10th Gen Intel CPUs and 2133/2666/2933/3200 MHz for 11th Gen Intel CPUs. It supports a maximum of 64GB RAM.
- Graphics Ports: It offers multiple video output options, including 1x HDMI 2.0b port with HDR support for 4K at 60Hz, 1x VGA port with a maximum resolution of 2048x1536 at 60Hz, and 1x DisplayPort 1.4 port with 4K at 60Hz support.
- USB Connectivity: The motherboard provides 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A on the back panel and 2 internal), as well as 6x USB 2.0 ports (4 Type-A on the back panel and 2 internal) for various peripheral connections.
- LAN Controller: It features a 1Gbps LAN controller from Intel (Intel I219V), ensuring reliable and fast wired network connectivity.
- Storage Options: The motherboard offers 4x SATA 6Gb/s ports and 1x M.2 slot (Key M) for high-speed storage devices, supporting both PCIe 3.0 x4 and SATA 6Gb/s. It's compatible with 2242/2260/2280 storage devices.
- Internal I/O Ports: The motherboard provides various internal connectors, including power connectors, SATA connectors, USB connectors, fan connectors, audio connectors, and more, offering flexibility for internal component connections.
- PRO Series Features: This motherboard is part of MSI's PRO series, designed to deliver stable functionality and high-quality assembly. It's optimized for professional workflows, minimizing troubleshooting and ensuring longevity. The three-year warranty underscores its reliability.
The MSI H510M-A PRO motherboard offers a balance of features suitable for a wide range of computing applications, making it a reliable choice for professionals and enthusiasts alike.
