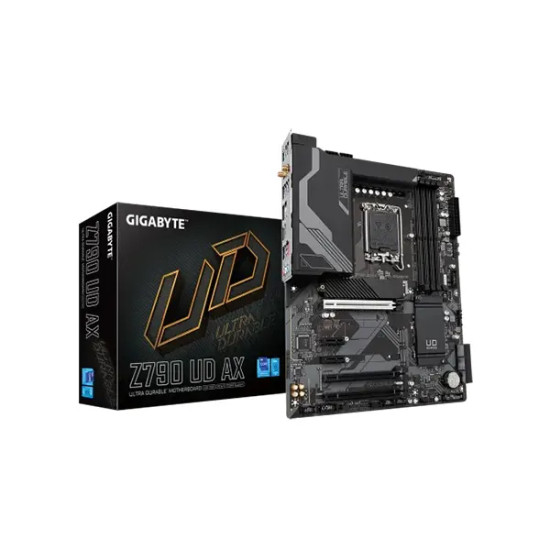

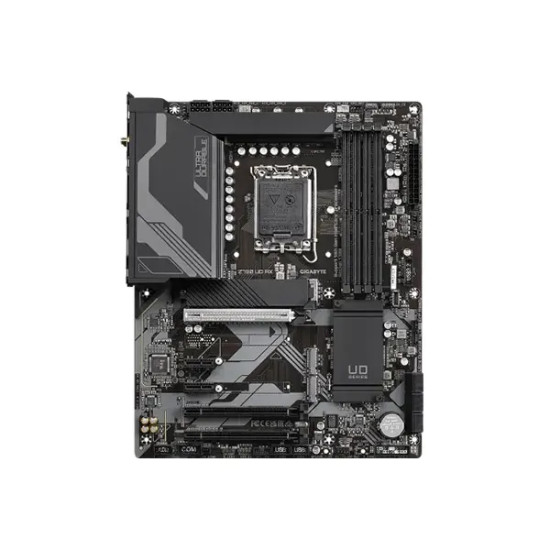

GIGABYTE Z790 UD AX 13th & Gen 12th DDR5 ATX Motherboard
The Intel Socket LGA 1700 on theGIGABYTE Z790 UD AX ATX Motherboard supports 13th and 12th Gen SeriesProcessors. With twin 16+1+1 Phases Digital VRM Solution, it providesperformance that is unequaled. 4x SMD DIMMs with XMP 3.0 Memory Module Supportare included with the motherboard. The sockets can accommodate 32 GB of systemmemory, or up to 128 GB, in total. There are three PCIe 4.0 x4 M.2 connectorson the motherboard. In order to provide high power M.2 PCIe 5.0 SSD solutions,it supports new PCIe 5.0 SSD with up to type 25110 M.2 slot. It offers a QuickRelease & Screwless PCIe 5.0 x16 Slot. Wi-Fi 6E 802.11ax and 2.5 GbE LANare both included in the GIGABYTE Z790 UD AX.When compared to standard 1GbEnetworking, 2.5G LAN offers up to 2.5 GbE network connectivity, which is idealfor gamers seeking the best possible online gaming experience. With a newdedicated 6GHz band, the most recent 802.11ax Wi-Fi 6E wireless technologyallows gigabit wireless performance, seamless video streaming, improved gaming,fewer dropped connections, and speeds up to 2.4Gbps. Additionally, Bluetooth 5offers a 4X greater range than Bluetooth 4.2 and quicker communication. Inaddition to keeping your PC at the ideal temperature and eliminating unexpectedsystem crashes while you are working on a project, the advanced coolingsolution offers the ideal aesthetically pleasing heatsink design. The warrantyfor the GIGABYTE Z790 UD AX ATX Motherboard is 3 years.
GIGABYTE Z790 UD AX 13th & Gen 12th DDR5 ATX Motherboard features
- CPU Support: The motherboard is equipped with an LGA1700 socket, offering support for the 13th and 12th Generation Intel Core processors, as well as Pentium Gold and Celeron processors. The L3 cache varies with the CPU.
- Chipset: It is powered by the Intel Z790 Express Chipset, ensuring high-speed data transfer and connectivity.
- BIOS: This motherboard includes a 1 x 256 Mbit flash with a licensed AMI UEFI BIOS. It supports various standards like PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0.
- Form Factor: With an ATX Form Factor and dimensions of 30.5cm x 24.4cm, the motherboard provides ample space for component installation.
- Audio Quality: The Realtek Audio CODEC ensures high-definition audio with support for 2/4/5.1/7.1-channel audio. Users can adjust the audio jack functionality using the included audio software. It also supports S/PDIF audio output.
- Expansion Slots: The motherboard offers a variety of expansion slots, including one PCI Express x16 slot supporting PCIe 5.0 and running at x16 for optimal graphics card performance. It also includes a PCI Express x16 slot running at x4 (PCIEX4) and three PCI Express x1 slots running at x1 (PCIEX1_4, PCIEX1_2, PCIEX1_3). Support for AMD CrossFire technology is available for multi-GPU configurations.
- Memory Support: This motherboard supports DDR5 memory and provides four DIMM sockets. Memory overclocking options include support for DDR5 memory modules with speeds such as 7600(O.C.), 7400(O.C.), and more. It operates using dual-channel memory architecture and accommodates ECC un-buffered DIMM modules (1Rx8/2Rx8) in non-ECC mode, as well as non-ECC un-buffered DIMM modules (1Rx8/2Rx8/1Rx16). Extreme Memory Profile (XMP) memory modules are also supported.
- Maximum Memory: It supports a maximum memory capacity of 128GB, with each single DIMM having a capacity of up to 32GB.
- Integrated Graphics: The motherboard features integrated Intel HD Graphics with one HDMI port supporting a maximum resolution of 4096x2160@60 Hz (HDMI 2.0 version and HDCP 2.3) and one DisplayPort supporting a maximum resolution of 4096x2304@60 Hz (DisplayPort 1.2 version and HDCP 2.3).

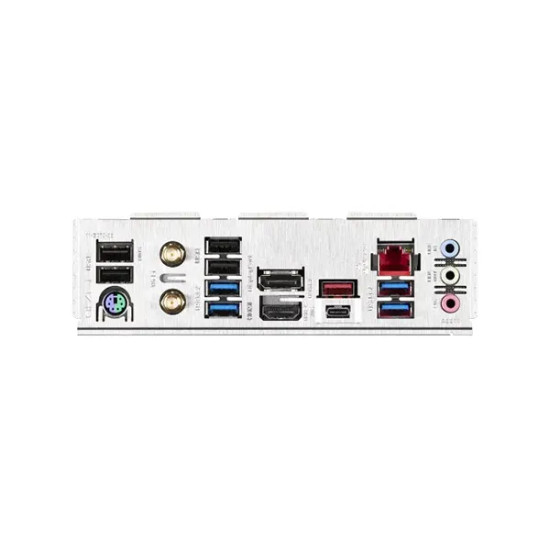

- Connector & Ports: It includes one HDMI port and one DisplayPort. USB connectivity is offered with a USB Type-C port on the back panel with USB 3.2 Gen 2x2 support, a USB Type-C port with USB 3.2 Gen 1 support available through the internal USB header, one USB 3.2 Gen 2 Type-A port (red) on the back panel, and six USB 3.2 Gen 1 ports (four on the back panel, two available through the internal USB header). The motherboard also includes eight USB 2.0/1.1 ports (four on the back panel, four available through the internal USB headers).
- LAN and Wireless: It features a Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) for wired network connections. For wireless connectivity, the motherboard includes an AMD Wi-Fi 6E RZ616 (MT7922A22M) module that supports Wi-Fi standards including a, b, g, n, ac, ax, and offers support for 2.4/5/6 GHz carrier frequency bands. It also includes BLUETOOTH 5.2 and offers a 2.4 Gbps data rate with support for the 11ax 160MHz wireless standard.
- Supported Storage: The motherboard provides various storage options, including one M.2 connector (Socket 3, M key) supporting type 22110/2280 PCIe 4.0 x4/x2 SSDs (M2A_CPU) for the CPU, and two M.2 connectors (Socket 3, M key) supporting type 2280 PCIe 4.0 x4/x2 SSDs (M2Q_SB, M2P_SB) for the chipset. Additionally, it includes six SATA 6Gb/s connectors.
- Special Features and Warranty: Special features offered by the motherboard include support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, and Smart Backup. It is backed by a 3-year manufacturing warranty, ensuring reliability and support.
This motherboard is designed to deliver top-tier performance, extensive connectivity options, and reliability for a wide range of computing needs.
