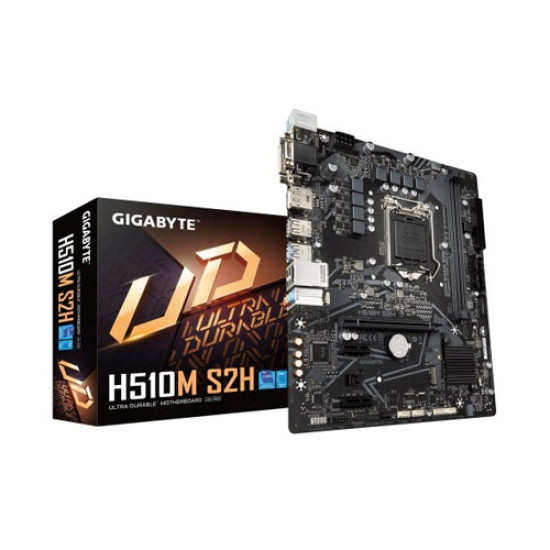

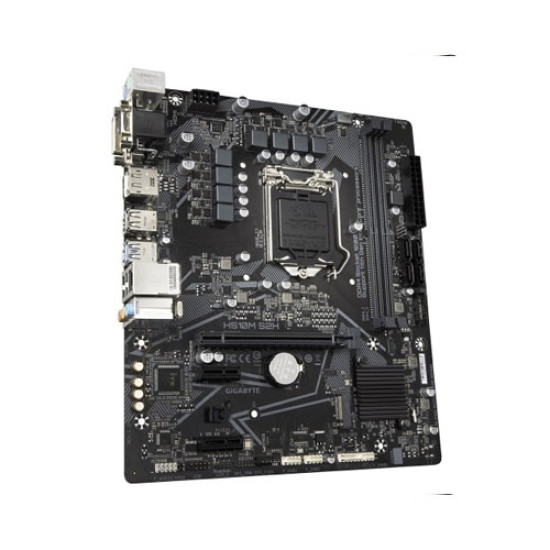

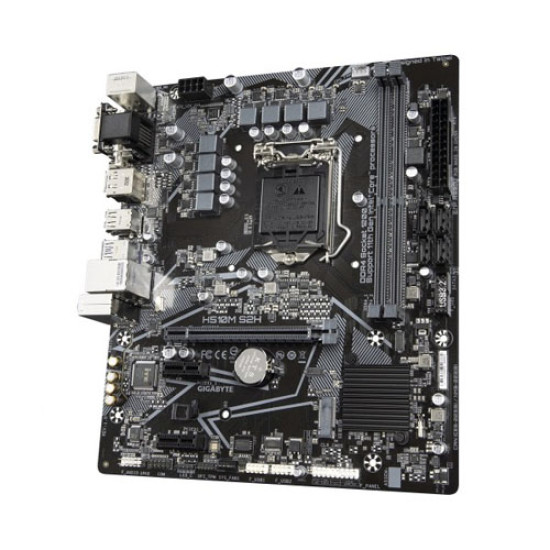

Name: Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard
Brand: Gigabyte
Price: 11000.00 BDT
Availability: InStock

Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard

Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard

Status: In Stock
Brand: Gigabyte
Model: H510M S2H

Based on 0 reviews. - Write a review

11,000৳

Ex Tax: 11,000৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
Connector & ports
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) * The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only. 4 x SATA 6Gb/s connectors
Connector & ports
HDMI	1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
Connector & ports
LAN Port (s)	Realtek GbE LAN chip (1 Gbit/100 Mbit)
Default
Connector & ports	USB (s):Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)
Memory Specifications	Supported Memory:11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Generel information
D-Sub (s)	1 x D-Sub port
DVI-D (s)	1 x DVI-D port
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Manufacturing Warranty	3 years
PCI	1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) * Supported by 11th Generation processors only. 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 3.0 standard.)
Slots	2 x DDR4 DIMM
Special Features	Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Type	Dual channel memory architecture
Graphics Specifications
Graphics	Graphics:Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. Support for up to 2 displays at the same time
Main Features
Audio	3 x audio jacks
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel H510 Express Chipset
Form Factor	Micro ATX Form Factor; 24.4cm x 21.0cm
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
Memory Specifications
Max. Memory	64 GB (32 GB single DIMM capacity)

Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard

Gigabyte H510M S2H Motherboard supports 11th and 10th Gen Intel Core Series Processors. It features Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs and Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface. It comes with GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management. It comes with 4 Display Interfaces Support. It comes with high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. It features an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintain their performance while staying cool and quiet. Each fan headers support PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection. The fan can stop completely below users’ specified temperature point. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version. It is very Simple and Easy Use. In the world of gaming and high-performance computing, the choice of motherboard plays a crucial role in determining the overall performance and compatibility of your system. Gigabyte, a renowned name in the realm of motherboards, brings forth the H510M S2H, a Micro ATX motherboard designed to cater to the needs of both gaming enthusiasts and professionals alike. In this comprehensive guide, we delve into the intricate details of the Gigabyte H510M S2H, exploring its performance, form factor, memory support, connectivity options, supported processors, and more.

Performance

The Gigabyte H510M S2H motherboard boasts exceptional performance capabilities, thanks to its compatibility with both 10th and 11th generation Intel processors. Whether you're a hardcore gamer or a content creator requiring high-speed processing, this motherboard is equipped to handle demanding tasks with ease.

Form Factor

With a Micro ATX form factor measuring 24.4cm x 21.0cm, the Gigabyte H510M S2H strikes the perfect balance between compactness and functionality. This smaller form factor allows for versatile system configurations without compromising on performance or features.

Memory Support

The H510M S2H supports dual-channel memory architecture, providing enhanced memory bandwidth for improved multitasking and overall system responsiveness. It accommodates up to 64GB of DDR4 memory, offering ample capacity for memory-intensive applications and gaming experiences.

Connectivity

When it comes to connectivity, the Gigabyte H510M S2H leaves no stone unturned. Equipped with a range of ports and connectors, including USB 3.2 Gen 1 ports, SATA connectors, and audio jacks, this motherboard ensures seamless connectivity for all your peripherals and devices.

Supported Processor

The H510M S2H is compatible with a wide range of Intel processors, including 11th generation Intel Core i9, i7, and i5 processors, as well as 10th generation Core i9, i7, and i5 processors. Whether you opt for the latest generation of Intel CPUs or stick with the previous iteration, this motherboard offers optimal performance and compatibility.

FAQs

Q: Is the Gigabyte H510M S2H suitable for gaming?
A: Absolutely! With support for high-speed DDR4 memory and PCIe 4.0 standard, the H510M S2H is well-equipped to handle the demands of modern gaming titles.

Q: Can I overclock my CPU with this motherboard?
A: While the H510M S2H offers robust performance, it may not be the ideal choice for extreme overclocking due to its chipset limitations.

Q: Does the motherboard support multiple displays?
A: Yes, the Gigabyte H510M S2H supports up to two displays simultaneously, offering flexibility for multi-monitor setups.

Q: What is the maximum memory capacity supported by this motherboard?
A: The H510M S2H can accommodate up to 64GB of DDR4 memory, ensuring ample capacity for multitasking and memory-intensive applications.

Q: Is the motherboard compatible with Intel 11th gen processors out of the box?
A: Yes, the Gigabyte H510M S2H is designed to support both 10th and 11th generation Intel processors, providing users with flexibility and future-proofing.
