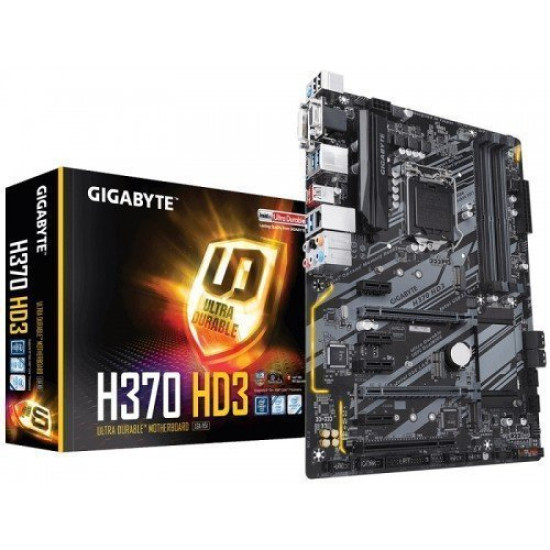

Gigabyte H370 HD3 8th Gen Ultra Durable Motherboard

Gigabyte H370 HD3 8th Gen Ultra Durable motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This 7 colors RGB LED strip supported board has dual channel DDR4 maximum 64GB memory and it has the capability of fast dual M.2 and USB 3.1 Gen2 Type-A & USB3.1 Gen1 Type-C interface. If we consider the graphics, it will support Intel HD graphics having the maximum resolution of4096x2160@30 Hz for HDMI and 1920x1200@60 Hz for D-Sub & DVI-D port. This DualBIOS board has 6 x  PCIe & 1 x PCI Slots, Intel GbE LAN with cFosSpeed, Intel CNVi WIFI upgradable slot, Smart Fan 5, CEC 2019 and Anti-Sulfur Resistor.

Specification:

Basic Information
Supported CPU	Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 packageL3 cache varies with CPU
Chipset	Intel® H370 Express Chipset
BIOS	2 x 128 Mbit flashUse of licensed AMI UEFI BIOSSupport for DualBIOS™PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 22.5cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot, running at x4 (PCIEX4)4 x PCI Express x1 slot(All of the PCI Express slots conform to PCI Express 3.0 standard.)1 x PCI slot
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_32G)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
Memory
Type	DDR4
Slots	4 x DIMM sockets
Supported Memory	Support for DDR4 2666/2400/2133 MHz memory modulesSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
Maximum Mamory	64 GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.2.Support for up to 3 displays at the same time
Max Shared Memory	1 GB
Connector & Ports
HDMI	1 x HDMI port
USB (s)	Chipset:1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support1 x USB 3.1 Gen 2 Type-A port (red) on the back panel6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)* The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.
LAN Port (s)	Intel® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_32G)1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)6 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 5, and RAID 10* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.Intel® Optane™ Memory Ready
Audio	Realtek® ALC887 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x RGB LED strip header6 x SATA 6Gb/s connectors2 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Thunderbolt™ add-in card connector1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x parallel port header1 x serial port header1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty	03 Years
