Name: Gigabyte GA-H110M-H Micro ATX Motherboard
Brand: Gigabyte
Price: 10000.00 BDT
Availability: InStock

Gigabyte GA-H110M-H Micro ATX Motherboard

Gigabyte GA-H110M-H Micro ATX Motherboard

Status: In Stock
Brand: Gigabyte
Model: Model-2838

Based on 0 reviews. - Write a review

10,000৳

Ex Tax: 10,000৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Description
Review

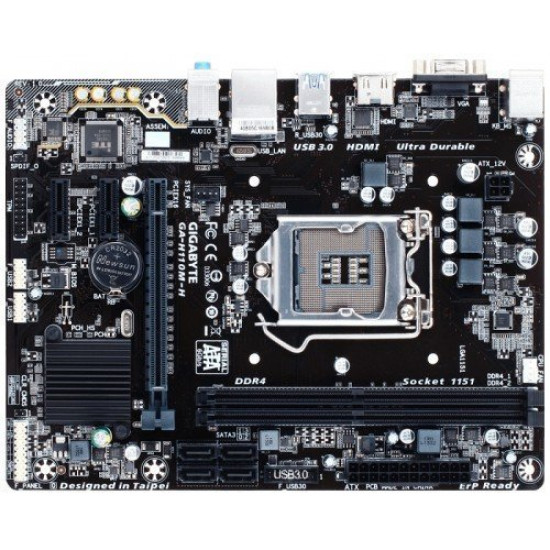

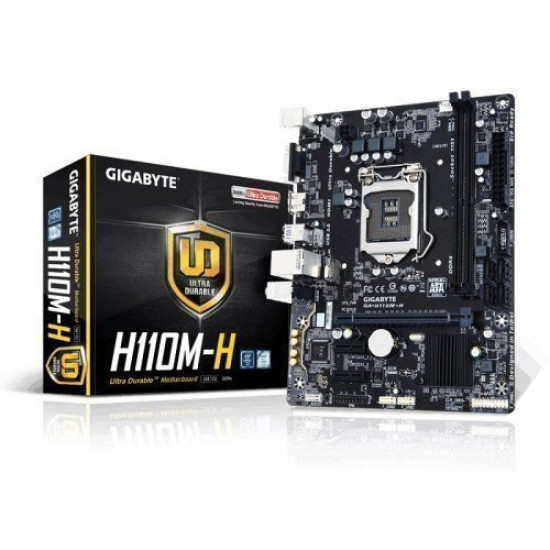

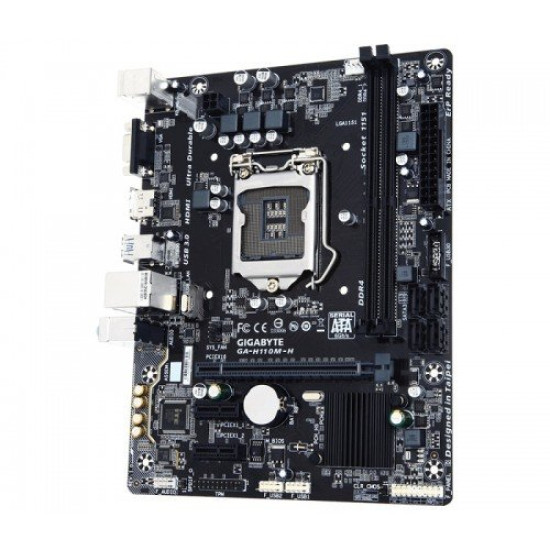

Gigabyte GA-H110M-H Micro ATX Motherboard

Gigabyte GA-H110M-H Micro ATX ultra durable motherboard has the compatibility with 7th/6th i3, i5 & i7 processors. This board also supports dual channel DDR4 maximum 32GB memory and dual Ultra-Fast SATA interface. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920x1200@60 Hz for D-Sub and 4096x2160@24 Hz for HDMI port. This basic motherboard has the facility of Audio Noise Guard with High Quality Audio Capacitors and Realtek® GbE LAN with cFosSpeed Internet Accelerator Software. This board also contain All new GIGABYTE™ APP Center for simple and easy use and support Intel® Small Business Basics.

Specification:

Basic Information
Supported CPU	Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.L3 cache varies with CPU
Chipset	Intel® H110 Express Chipset
BIOS	1 x 64 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 17.4cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16(The PCI Express x16 slot conform to PCI Express 3.0 standard.)2 x PCI Express x1 slots(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Memory
Type	Dual channel DDR4 memory architecture
Slots	2 x DIMM
Supported Memory	Support for DDR4 2400/2133 MHz memory modulesSupport for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Mamory	32 GB
Graphics
Graphics	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz* Support for HDMI 1.4 version.
Max Shared Memory	1024 MB

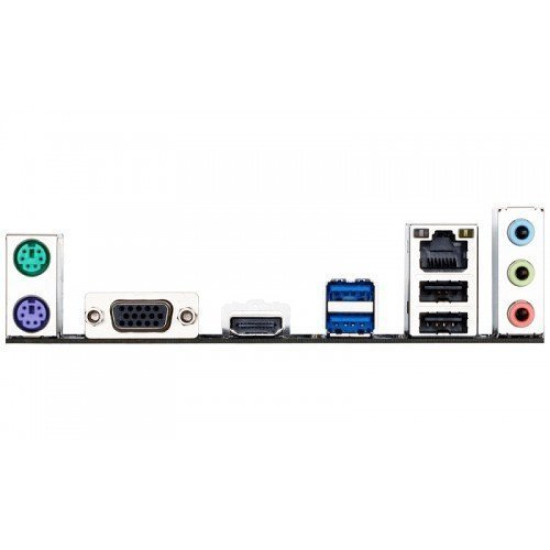

Connector & Ports
HDMI	1 x HDMI
USB (s)	Chipset:4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	Chipset:4 x SATA 6Gb/s connectors
Audio	Realtek® ALC887 codecHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x CPU fan header1 x system fan header1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.0/2.0 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header1 x Clear CMOS jumper
D-Sub (s)	1 x D-Sub
Warranty Information
Manufacturing Warranty	03 Years
