Name: Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard
Brand: Gigabyte
Price: 22500.00 BDT
Availability: InStock

Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard

Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard

Status: In Stock
Brand: Gigabyte
Model: B760M Gaming X

Based on 0 reviews. - Write a review

22,500৳

Ex Tax: 22,500৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Default
Generel information	CPU:LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU, Onboard Graphics:Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3., Storage Interface:CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices , USB:Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) , EXPANSION SLOT:CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Generel information

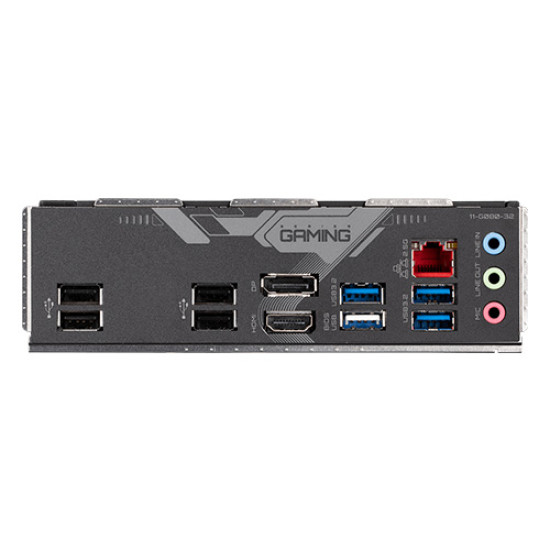

Back Panel Connectors	3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
I/O Controller	iTE I/O Controller Chip
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Main Features
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel B760 Express Chipset
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Warranty Information
Warranty	3 Years

Gigabyte B760M Gaming X DDR4 Micro ATX Motherboard

Gigabyte B760M Gaming X DDR4 is a micro ATX motherboard designed for use with Intel processors and supports DDR4 memory. This motherboard features an LGA1700 socket that supports Intel Core, Pentium Gold, and Celeron CPUs from the 13th and 12th generations. The motherboard also includes an Intel B760 chipset and DDR4 memory module support ranging from 2133 to 5333 MT/s. The Gigabyte B760M Gaming X motherboard’s four DDR DIMM ports can accommodate up to 128 GB of system memory in a dual-channel design. For flawless visual output, the integrated graphics processor supports Intel HD Graphics, and there are also 1 DisplayPort and 1 HDMI connector. A Realtek Audio CODEC with high-definition audio and support for 2/4/5.1/7.1-channel sound is also included on the motherboard. A Realtek 2.5GbE LAN chip is also included, as well as a variety of wireless communication choices, including AMD Wi-Fi 6E RZ608, Intel Wi-Fi 6E AX210, Intel Wi-Fi 6E AX211, and Realtek Wi-Fi 6E RTL8852CE, all of which support the 11ax wireless standard and varying data speeds.

Gigabyte B760M Gaming X Motherboard Features

Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors
Unparalleled Performance: Hybrid 8+1+1 Phases Digital VRM Solution
Dual Channel DDR4: 4*DIMMs XMP Memory Module Support
Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
Fast Networks: 2.5GbE LAN
Extended Connectivity: Front USB-C® 10Gb/s, DP, HDMI
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
