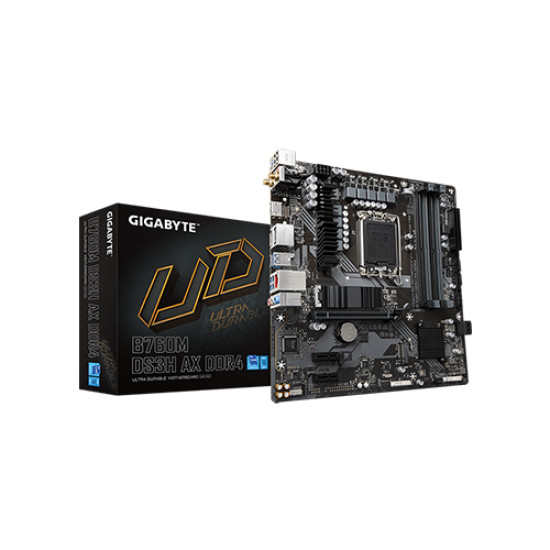

Name: Gigabyte B760M DS3H AX DDR4 Motherboard
Brand: Gigabyte
Availability: InStock

New

Gigabyte B760M DS3H AX DDR4 Motherboard

Status: In Stock
Brand: Gigabyte
Model: B760M DS3H AX DDR4

Based on 0 reviews. - Write a review

0৳

Ex Tax: 0৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Connector & ports
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Default
Basic Information	Supported CPU:LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Connector & ports	USB (s):Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
Generel information
EXPANSION SLOT	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Others	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Slots	4 x DDR DIMM
Type	DDR4
Wireless Communication module	AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands LUETOOTH 5.2 Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX211 (For PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.3) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Graphics Specifications
Graphics	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version.
Main Features
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel® B760 Express Chipset
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Memory Specifications
Max. Memory	up to 128 GB (32 GB single DIMM capacity)
Supported Memory	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules

Gigabyte B760M DS3H AX DDR4 Motherboard

The Gigabyte B760M DS3H AX is a Micro ATX form factor motherboard designed for use with Intel processors and LGA 1200 socket. It supports the 10th and 11th Gen Intel Core processors with up to 65W TDP. The motherboard has a matte black PCB with white accents and provides reliable performance for both gaming and productivity tasks.

The B760M DS3H AX has two DDR4 DIMM slots, supporting up to 64GB of memory with speeds up to 4,800 MHz. It also features a single M.2 slot for NVMe solid-state drives, providing high-speed storage options. The motherboard has a Realtek ALC887 audio codec, providing high-quality audio output, and it also features a Gigabit Ethernet port for fast and reliable network connectivity.

The B760M DS3H AX has multiple USB 3.2 ports, including Type-A and Type-C connectors, as well as several 4-pin RGB headers for RGB lighting customization. The motherboard supports RGB Fusion 2.0, which allows users to customize the RGB lighting to match their build’s aesthetics. Additionally, the B760M DS3H AX supports Smart Fan 5, which provides real-time fan speed control and temperature monitoring.

The Gigabyte B760M DS3H AX also supports Q-Flash Plus, which allows users to update the motherboard’s BIOS without the need for a CPU or memory. The motherboard has a durable and high-quality build, and it comes with a 3-year warranty for peace of mind.

In conclusion, the Gigabyte B760M DS3H AX is a budget-friendly Micro ATX motherboard that provides reliable performance for both gaming and productivity tasks. With its support for high-speed memory, fast network connectivity, and customizable RGB lighting, this motherboard provides a great foundation for a cost-effective yet powerful PC build. more information to learn visit official website.
