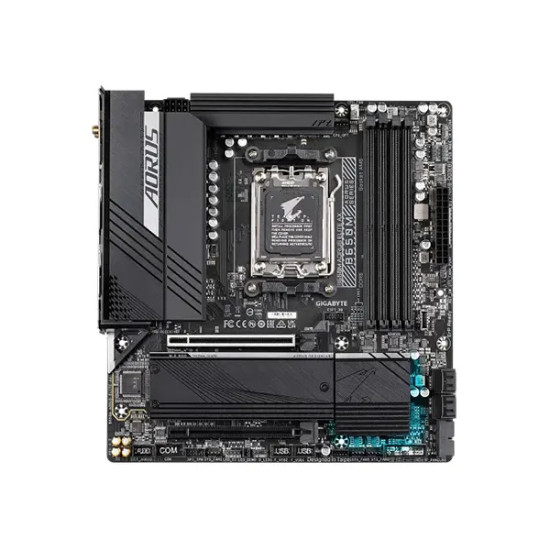

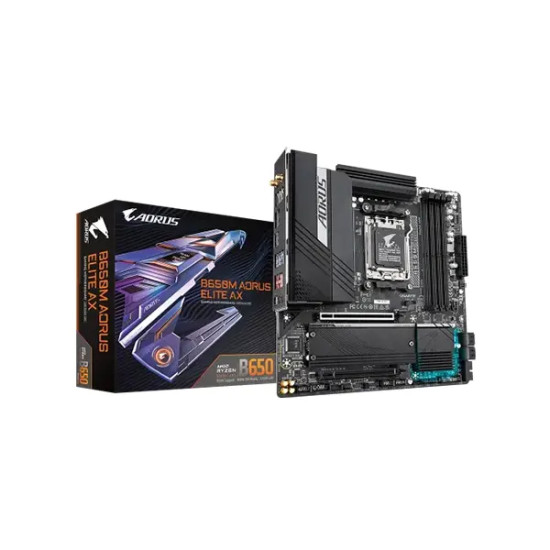

GIGABYTE B650M AORUS ELITE AX AMD AM5 DDR5 Micro-ATX Motherboard
The GIGABYTE B650M AORUS ELITE AX AMD AM5 DDR5 Micro-ATX Motherboard is a powerful and feature-rich motherboard designed to cater to the needs of gamers and PC enthusiasts. Built with the latest AMD Socket AM5, it supports the cutting-edge AMD Ryzen 7000 Series Processors, ensuring exceptional performance for gaming, content creation, and multitasking. The motherboard boasts an AMD B650 chipset, providing a robust foundation for stable and efficient system operation. It features a Micro ATX form factor, making it suitable for compact builds without compromising on performance. The compact dimensions of 24.4cm x 24.4cm make it an ideal choice for Micro-ATX cases. Equipped with DDR5 memory slots, the motherboard supports high-speed memory modules with a maximum capacity of 128GB. The dual-channel memory architecture, along with support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules, allows users to optimize their system's memory performance. In terms of graphics, the integrated graphics processor provides a versatile display output with a DisplayPort supporting a maximum resolution of 3840x2160@144 Hz and an HDMI port supporting a maximum resolution of 4096x2160@60 Hz. The inclusion of native HDMI 2.1 TMDS compatible ports enhances the graphics capabilities for a superior visual experience. Connectivity options are plentiful, including USB Type-C, USB 3.2 Gen 2 Type-A, and USB 2.0/1.1 ports for versatile peripheral connections. The Realtek 2.5GbE LAN chip ensures high-speed wired networking, while the wireless communication module, featuring AMD Wi-Fi 6E RZ616 and Intel Wi-Fi 6E AX210 options, offers advanced wireless connectivity with support for Bluetooth 5.2 and 5.3. Storage options are comprehensive, with M.2 connectors supporting PCIe 5.0 and PCIe 4.0 SSDs, SATA 6Gb/s connectors, and RAID support for both NVMe SSD and SATA storage devices. The motherboard is equipped with multiple headers for addressable LED strips and RGB LED strips, allowing users to customize the lighting aesthetics of their system. It also features GIGABYTE Control Center (GCC) support, providing convenient tools for system management and customization. With a 3-year manufacturing warranty, the GIGABYTE B650M AORUS ELITE AX AMD AM5 DDR5 Micro-ATX Motherboard offers a reliable and high-performance foundation for diverse computing needs. The bundled software, including Norton Internet Security and LAN bandwidth management tools, adds value to this feature-packed motherboard.
GIGABYTE B650M AORUS ELITE AX AMD AM5 DDR5 Micro-ATX Motherboard features
- Micro ATX Form Factor: The GIGABYTE B650M AORUS ELITE AX motherboard features a compact Micro ATX form factor, measuring 24.4cm x 24.4cm. This design is ideal for users looking to build a powerful system in a smaller case.
- AMD Socket AM5 Compatibility: Designed to support the latest AMD Ryzen 7000 Series Processors, the motherboard utilizes the AMD Socket AM5, ensuring compatibility with the latest CPU technology for high-performance computing.
- AMD B650 Chipset: Powered by the AMD B650 chipset, the motherboard provides a stable and efficient platform for seamless system operation.
- BIOS: Equipped with a 256 Mbit flash, the motherboard uses a licensed AMI UEFI BIOS. It supports various standards including PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, ensuring a user-friendly and versatile BIOS environment.
- High Definition Audio: Featuring Realtek Audio CODEC, the motherboard supports 2/4/5.1/7.1-channel High Definition Audio. Users have the flexibility to customize audio settings, including the ability to change the functionality of audio jacks through audio software.
- PCI Express Slots: The motherboard includes a PCI Express x16 slot supporting PCIe 4.0 running at x16 for optimal performance with a single graphics card. Additionally, there's a PCI Express x16 slot supporting PCIe 4.0 running at x4, providing flexibility for various expansion cards.
- DDR5 Memory Support: With four DIMM slots, the motherboard supports DDR5 memory modules with speeds up to 6666(OC) MT/s. It employs a dual-channel memory architecture and supports AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) for memory customization.
- Graphics Capabilities: The integrated graphics processor supports a DisplayPort with a maximum resolution of 3840x2160@144 Hz and an HDMI port with a maximum resolution of 4096x2160@60 Hz. It also supports DisplayPort 1.4 version, HDR, HDMI 2.1 version, and HDCP 2.3.

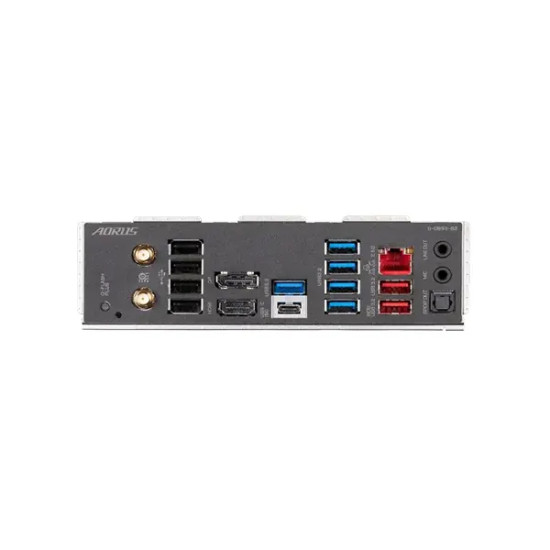

- USB Connectivity: Offering a range of USB options, including a USB Type-C port on the back panel with USB 3.2 Gen 2 support, USB 3.2 Gen 2 Type-A ports, and various internal USB headers, the motherboard ensures versatile and high-speed connectivity.
- Networking Features: Equipped with a Realtek 2.5GbE LAN chip, the motherboard provides high-speed wired networking. The wireless communication module includes options for AMD Wi-Fi 6E RZ616 and Intel Wi-Fi 6E AX210, supporting advanced Wi-Fi standards and Bluetooth.
- Storage Connectivity: Supporting multiple storage options, including M.2 connectors for PCIe 5.0 and PCIe 4.0 SSDs, SATA 6Gb/s connectors, and RAID support for both NVMe SSD and SATA storage devices.
- Audio Jacks and Connectors: The motherboard features 2 audio jacks and a comprehensive set of internal I/O ports, including headers for addressable LED strip, RGB LED strip, M.2 sockets, SATA connectors, and USB headers.
- Special Features and Software: With special features like GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, and bundled software such as Norton Internet Security and LAN bandwidth management tools, the motherboard provides enhanced customization, functionality, and security.
These features collectively make the GIGABYTE B650M AORUS ELITE AX a versatile and high-performance Micro-ATX motherboard suitable for various computing needs.
