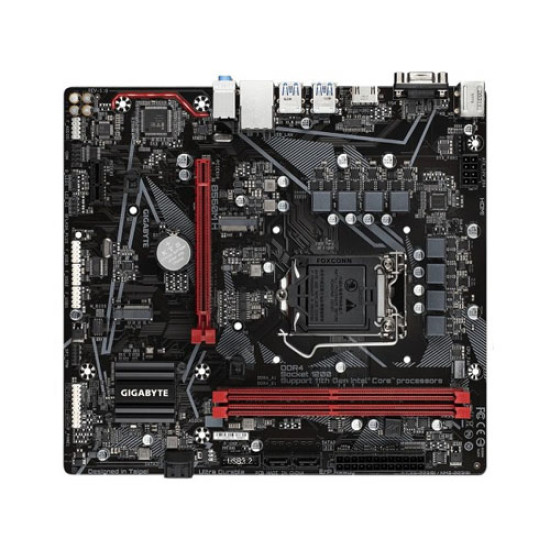

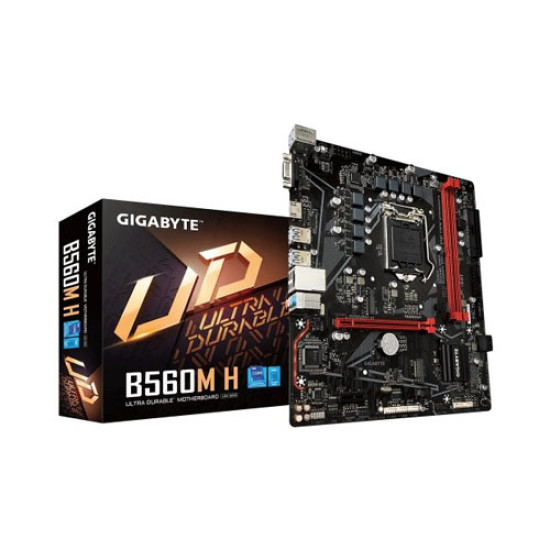

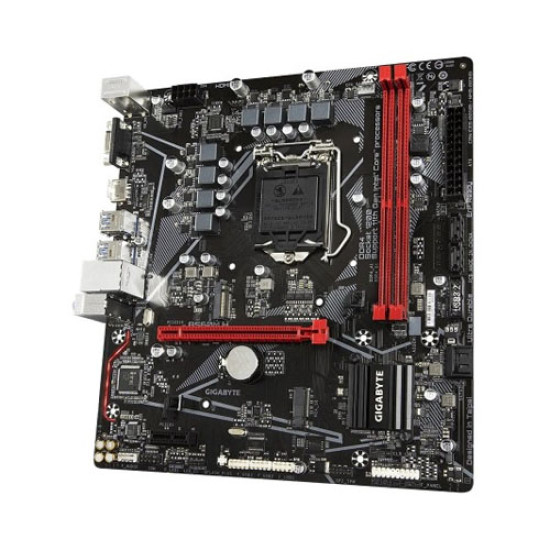

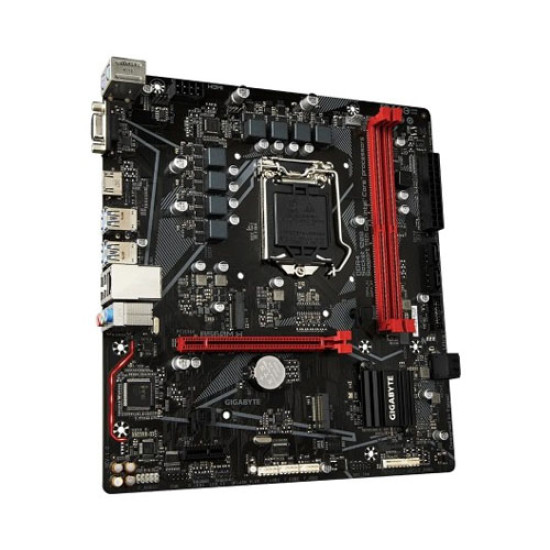

Name: Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard
Brand: Gigabyte
Price: 11990.00 BDT
Availability: InStock

Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard

Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard

Status: In Stock
Brand: Gigabyte
Model: B560M H

Based on 0 reviews. - Write a review

11,990৳

Ex Tax: 11,990৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

AVA Technology can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. AVA Technology is not liable for usage outcomes.

Connector & ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz
Connector & ports
LAN Port (s)	Realtek GbE LAN chip (1 Gbit/100 Mbit)
Connector & ports
Internal I/O Ports	1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x system fan header1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header3 x USB 2.0/1.1 headers1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button
Default
Connector & ports	USB (s):Chipset:6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)Chipset + USB 2.0 Hub:8 x USB 2.0/ 1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers), Supported Storage:CPU:1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)Chipset:1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)4 x SATA 6Gb/s connectorsIntel Optane Memory Ready
Memory Specifications	Supported Memory:11th Generation Intel Core i9/ i7/ i5 processors:Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules10th Generation Intel Core i9/i7 processors:Support for DDR4 2933/2666/2400/2133 MHz memory modules10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors:Support for DDR4 2666/2400/2133 MHz memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
Generel information
D-Sub (s)	1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz
Expansion Slots	M.2 Socket:CPU:1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)Chipset:1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
Manufacturing Warranty	3 year
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16)(The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note)1 x PCI Express x1 slot (PCIEX1)(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Slots	2 x DIMM
Special Features	Support for APP Center@BIOSEasyTuneFast BootGame BoostON/OFF ChargeRGB FusionSmart BackupSystem Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install
Type	DDR4
Graphics Specifications
Graphics	Graphics:Integrated Graphics Processor-Intel HD Graphics support:1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz* Support for HDMI 2.0 version and HDCP 2.3.
Main Features
Audio	Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel
BIOS	1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel B560 Express Chipset
Form Factor	Micro ATX Form Factor; 24.4cm x 22.5cm
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Memory Specifications
Max. Memory	64 GB (32 GB single DIMM capacity)

Gigabyte B560M H Ultra Durable Intel 10th and 11th Gen Micro ATX Motherboard

Gigabyte B560M H Ultra Durable Intel 10th And 11th Gen Micro ATX Motherboard Supports 11th And 10th Gen Intel Core Series Processors. It Has Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It Features Direct 6 + 2 Phases Digital VRM With Low RDS(On) MOSFETs. It Has Shielded Memory Routing For Better Memory Overclocking. It Comes With A Fully Covered Thermal Design With High Coverage MOSFET Heatsinks. It Is Powered By A Exclusive 8118 Gaming LAN With Bandwidth Management. It Supports Dual Ultra-Fast NVMe PCIe 4.0/3.0 X4 M.2 With Thermal Guard It Comes With Rear USB 3.2 Gen2 Type-C And Front USB3.2 Gen1 Type-C For Connecting Devices. It Has Pre-Installed IO Shield For Easy And Quick Installation. RGB FUSION 2.0 With Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers With FAN STOP. Q-Flash Plus Update BIOS Without Installing The CPU, Memory And Graphics Card.

Cooling Features:

High Current Support

Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Up to 7 temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenario

Fan Stop

Fan can stop completely below users' specified temperature point

Solid Pin Power Connectors:

B560 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages
