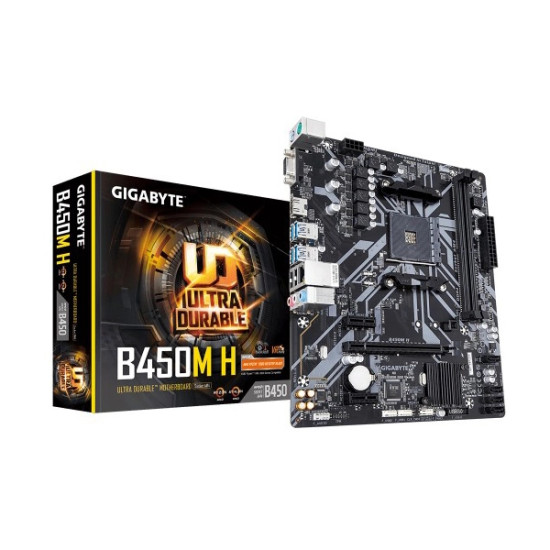

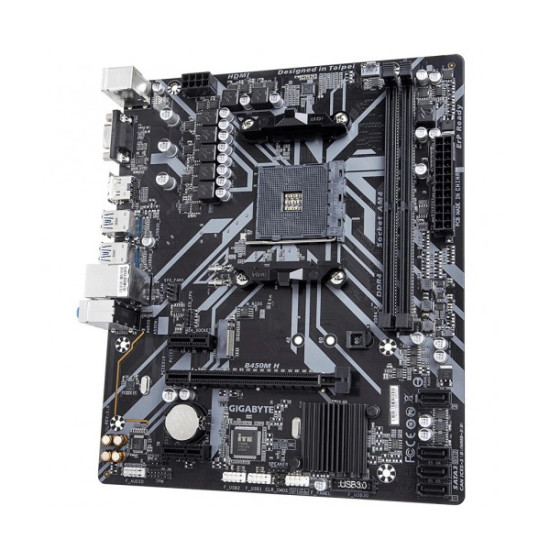

Gigabyte B450M H Ultra Durable AMD AM4 Micro-ATX Motherboard
The Gigabyte B450M H Ultra Durable AMD AM4 Micro-ATX Motherboard is a reliable and versatile motherboard designed to accommodate a wide range of computing needs. With comprehensive support for various AMD processors and graphics solutions, this motherboard provides a solid foundation for building efficient and capable systems. Its compact Micro-ATX form factor, measuring 24.4cm x 20.5cm, ensures compatibility with smaller PC cases while delivering essential features. Engineered around the AMD B450 chipset, the motherboard supports multiple processor generations, including 3rd Generation AMD Ryzen processors, 2nd Generation AMD Ryzen processors, 1st Generation AMD Ryzen processors, as well as various configurations of AMD Ryzen processors with Radeon Vega Graphics. This wide compatibility spectrum empowers users to tailor their system's performance to meet their specific requirements. Featuring a user-friendly licensed AMI UEFI BIOS, the motherboard boasts a 128 Mbit flash BIOS, supporting features like PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0 for streamlined system management and updates. Expansion options are well-considered, with a PCI Express x16 slot running at x16 for graphics cards, adhering to the PCI Express 3.0 standard. Additionally, two PCI Express x1 slots provide space for expansion cards, enhancing the motherboard's versatility. The motherboard supports dual-channel memory architecture through two DDR4 DIMM slots, accommodating up to 32 GB of memory. It offers support for a wide range of memory speeds, including overclocked DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz, as well as ECC un-buffered DIMMs and Extreme Memory Profile (XMP) memory modules. Graphics capabilities are provided by the integrated graphics processor, featuring a D-Sub port with a maximum resolution of 1920x1200@60 Hz and an HDMI port supporting a maximum resolution of 4096x2160@60 Hz. The motherboard can share up to 16 GB of memory for enhanced graphical performance. Connectivity options are plentiful, offering a total of six USB 2.0/1.1 ports (two on the back panel and four through internal USB headers) and four USB 3.1 Gen 1 ports on the back panel. The Realtek GbE LAN chip ensures reliable wired network connectivity. Storage versatility is ensured with a single M.2 connector supporting both SATA and PCIe x4/x2 SSDs, as well as four SATA 6Gb/s connectors with support for RAID 0, RAID 1, and RAID 10 configurations. Audio experiences are enhanced by the Realtek ALC887 codec, delivering high-definition audio in 2/4/5.1/7.1-channel configurations with support for S/PDIF Out. With an array of internal I/O ports, including power connectors, fan headers, front panel headers, and more, the motherboard offers convenient connectivity and customization options.
Gigabyte B450M H Ultra Durable Motherboard Features
- AMD Processor Compatibility: The motherboard supports an array of AMD processors, including 3rd Generation AMD Ryzen processors, 2nd Generation AMD Ryzen processors, 1st Generation AMD Ryzen processors, 2nd Generation AMD Ryzen with Radeon Vega Graphics processors, 1st Generation AMD Ryzen with Radeon Vega Graphics processors, and AMD Ryzen with Radeon Vega Graphics processors. This broad compatibility ensures flexibility in building systems tailored to different performance levels.
- AMD B450 Chipset: Built around the AMD B450 chipset, the motherboard delivers stability and performance enhancements. It supports essential features like PCIe 3.0 for high-speed data transfer and advanced Ryzen processor support.
- Dual BIOS with UEFI: The motherboard boasts a 128 Mbit flash BIOS with licensed AMI UEFI BIOS, supporting features such as PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, and ACPI 5.0, allowing for easy system management and updates.
- Expansion Slots: With a PCI Express x16 slot running at x16 and conforming to the PCI Express 3.0 standard, the motherboard can accommodate high-performance graphics cards. Additionally, two PCI Express x1 slots (conforming to PCI Express 2.0 standard) offer flexibility for expansion card installations.
- M.2 Socket: The motherboard features a versatile M.2 connector supporting both SATA and PCIe x4/x2 SSDs, enabling high-speed storage solutions for enhanced system performance.
- Memory Support: The dual-channel memory architecture supports up to 32 GB of DDR4 memory through two DDR4 DIMM slots. It offers support for a range of memory speeds, including overclocked DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz. ECC un-buffered DIMMs and Extreme Memory Profile (XMP) memory modules are also supported.
- Graphics Capabilities: Integrated Graphics Processor offers a D-Sub port with a maximum resolution of 1920x1200@60 Hz and an HDMI port supporting a maximum resolution of 4096x2160@60 Hz. The motherboard can share up to 16 GB of memory for improved graphics performance.
- USB and LAN Connectivity: With 2 x USB 3.1 Gen 1 ports available through the internal USB header and 6 x USB 2.0/1.1 ports (2 on the back panel, 4 through internal USB headers), USB connectivity is ample. The Realtek GbE LAN chip ensures reliable and high-speed wired network connectivity.
- Storage Options: It features a single M.2 connector for high-speed storage drives and 4 x SATA 6Gb/s connectors with support for RAID 0, RAID 1, and RAID 10 configurations, providing flexible storage solutions.
- Enhanced Audio Experience: The Realtek ALC887 codec delivers high-definition audio in 2/4/5.1/7.1-channel configurations, and it also supports S/PDIF Out for improved audio experiences.
- Internal I/O Ports: With various internal I/O ports, including power connectors, fan headers, front panel headers, and more, the motherboard offers convenient connectivity and customization options.
- Special Features: The motherboard comes with an array of special features, including APP Center, AutoGreen, Cloud Station, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, Smart Keyboard, Smart Survey, System Information Viewer, USB Blocker, Q-Flash support, and Xpress Install, enhancing user experience and customization.
In conclusion, the Gigabyte B450M H Ultra Durable AMD AM4 Micro-ATX Motherboard offers an impressive array of features tailored for versatility and performance. Its compact form factor, compatibility with various AMD processors, and a host of special features make it an attractive choice for users seeking a reliable foundation for their computing systems.
