| Model | DQ850-M-V2L |
| Type | ATX 12V V2.4 |
| Certifications | 80PLUS GOLD |
| Dimension | 150×160×86mm (W × L × H) |
| Output Capacity | 850W |
| Input Voltage | 100-240V |
| Input Current | 12.0A |
| Input Frequency Range | 47-63Hz |
| Fan Size | 120mm |
| PFC | Active |
| Power Good Signal | 100-500ms |
| Hold Up Time | >16ms(80% Loading) |
| Efficiency | >90% Under Typical Load(50% Loading) |
| Standby Efficiency | ErP Lot 3 2014 |
| Protection | OVP/UVP/OCP/SCP/OPP/OTP |
| Operation Temperature | 0-40°C |
| Regulatory | CE/CB/CCC/EAC/FCC/KCC/RCM/RoHs |
| MTBF | 100,000 Hours |
| EAN | 6933412798934 |
| P/N | DP-GD-DQ850-M-V2L |

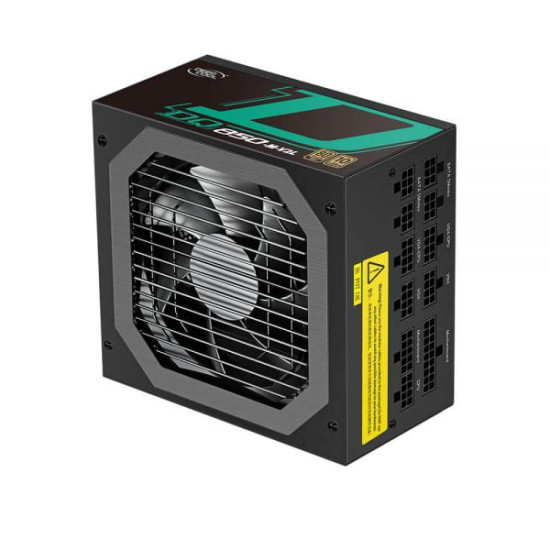

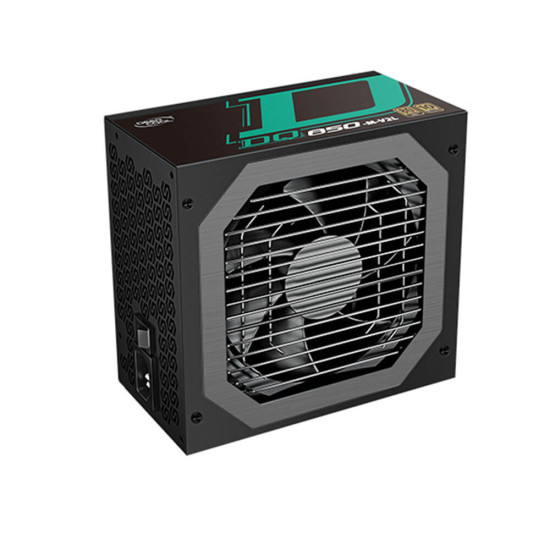

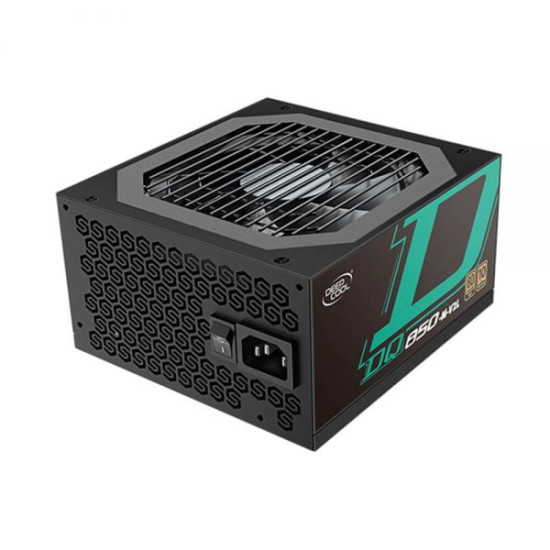

OVERVIEW:
The DQ850-M-V2L fully modular 850W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ850-M-V2L offers better reliability for your PC system.
Top-notch DesignFeaturing active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ850-M-V2L delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.

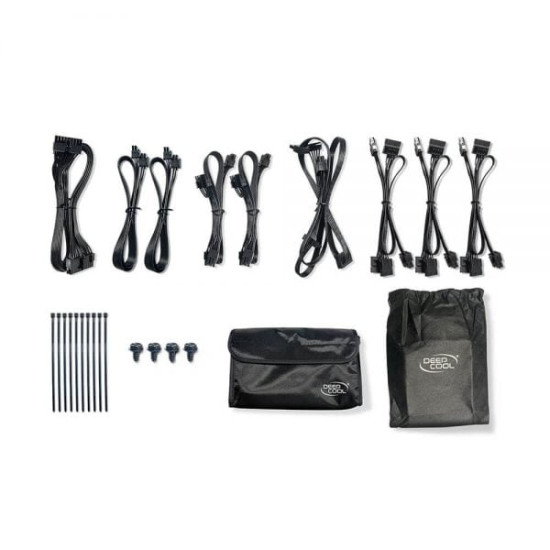

Fully ModularEasy cable management with flat cables keep your system clean and tidy.
Features: - 80 PLUS® GOLD certified – Up to 90.4% efficiency
- 100% High quality Japanese capacitors
- Full bridge PFC + LLC Resonant converter
- Fully modular with flat cable design
- CircuitShield™ — OVP / UVP / SCP / OPP / OTP
Output:| AC INPUT | VOLTAGE | CURRENT | FREQUENCY |
| 100-240V | 12.0A | 47-63Hz |
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB |
| CURRENT(Max) | 20A | 20A | 70.5A | 0.3A | 2.5A |
| OUTPUT(Max) | 110W | 846W | 3.6W | 12.5W |
| RATED POWER | 850W |
